E2008S Series

Catalog

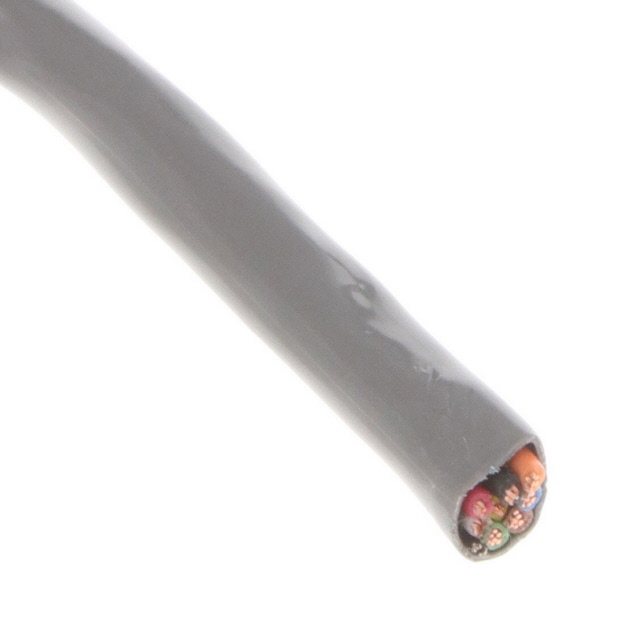

CABLE 8COND 22AWG GRAY SHLD 25'

Part	Number of Conductors [custom]	Length [x]	Length [x]	Cable Type	Features	Usage	Jacket (Insulation) Material	Conductor Material	Voltage	Jacket Color	Conductor Insulation	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Length	Length	Shield Type	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Shield Coverage
Prysmian Group E2008S.41.10	8	7.62 m 30.5 m	25 ft 100 ft	Multi-Conductor	Drain Wire	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	Copper Bare	300 VDC	Gray	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	15.24 m 304.8 m	50 ft 1000 ft	Foil	22 AWG	30 AWG	7	0.195 "	4.95 mm
Prysmian Group E2008S.30.10	8			Multi-Conductor	Drain Wire	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	Copper Bare	300 VDC	Gray	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	304.8 m	1000 ft	Foil	22 AWG	30 AWG	7	0.195 "	4.95 mm
Prysmian Group E2008S.18.10	8			Multi-Conductor	Drain Wire	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	Copper Bare	300 VDC	Gray	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	152.4 m	500 ft	Foil	22 AWG	30 AWG	7	0.195 "	4.95 mm
Prysmian Group E2008S.18.10	8			Multi-Conductor	Drain Wire	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	Copper Bare	300 VDC	Gray	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	152.4 m	500 ft	Foil	22 AWG	30 AWG	7	0.195 "	4.95 mm	Flexfoil®	100 %
Prysmian Group E2008S.30.10	8			Multi-Conductor	Drain Wire	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	Copper Bare	300 VDC	Gray	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	304.8 m	1000 ft	Foil	22 AWG	30 AWG	7	0.195 "	4.95 mm	Flexfoil®	100 %
Prysmian Group E2008S.41.10	8	7.62 m 30.5 m	25 ft 100 ft	Multi-Conductor	Drain Wire	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	Copper Bare	300 VDC	Gray	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	15.24 m 304.8 m	50 ft 1000 ft	Foil	22 AWG	30 AWG	7	0.195 "	4.95 mm	Flexfoil®	100 %
