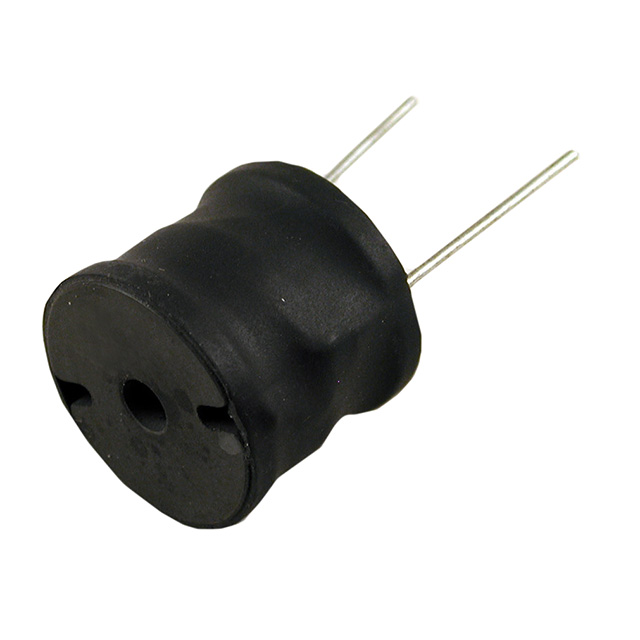

1539 Series

Catalog

RF CHOKE BOBBIN CORE 250UH 10% 1KHZ FERRITE 9A 0.04OHM DCR RDL

Part	Current Rating (Amps)	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Inductance	Material - Core	Mounting Type	DC Resistance (DCR)	Shielding	Inductance Frequency - Test	Type	Package / Case	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Size / Dimension
Hammond Manufacturing 1539M27	9 A	10 %	38.1 mm	1.5 "	1.5 "	38.1 mm	250 µH	Ferrite	Through Hole	40 mOhm	Unshielded	1 kHz	Drum Core Wirewound	Radial Vertical Cylinder
Hammond Manufacturing 1539M28	6.5 A	10 %	38.1 mm	1.5 "	1.5 "	38.1 mm	500 µH	Ferrite	Through Hole		Unshielded	1 kHz	Drum Core Wirewound	Radial Vertical Cylinder	85 mOhm
Hammond Manufacturing 1539M15	4.6 A	10 %			1.22 in	30.99 mm	250 µH	Ferrite	Through Hole		Unshielded	1 kHz	Drum Core Wirewound	Radial Vertical Cylinder	83 mOhm	1.11 in	28.19 mm
Hammond Manufacturing 1539M03	8 A	10 %		0.91 in	0.83 in		25 µH	Ferrite	Through Hole		Unshielded	1 kHz	Drum Core Wirewound	Radial Vertical Cylinder	23 mOhm		23.11 mm	21.08 mm
Hammond Manufacturing 1539M05	4.5 A	10 %		0.91 in	0.83 in		100 µH	Ferrite	Through Hole	72 mOhm	Unshielded	1 kHz	Drum Core Wirewound	Radial Vertical Cylinder			23.11 mm	21.08 mm
Hammond Manufacturing 1539M19	14 A	10 %			1.5 "	38.1 mm	50 µH	Ferrite	Through Hole		Unshielded	1 kHz	Drum Core Wirewound	Radial Vertical Cylinder	12 mOhm	1.11 in	28.19 mm
Hammond Manufacturing 1539M02	14 A	10 %		0.91 in	0.83 in		10 µH	Ferrite	Through Hole		Unshielded	1 kHz	Drum Core Wirewound	Radial Vertical Cylinder	8 mOhm		23.11 mm	21.08 mm
Hammond Manufacturing 1539M26	14 A	10 %	38.1 mm	1.5 "	1.5 "	38.1 mm	100 µH	Ferrite	Through Hole		Unshielded	1 kHz	Drum Core Wirewound	Radial Vertical Cylinder	18 mOhm
Hammond Manufacturing 1539M18	1.6 A	10 %			1.22 in	30.99 mm	2.5 mH	Ferrite	Through Hole		Unshielded	1 kHz	Drum Core Wirewound	Radial Vertical Cylinder	690 mOhm	1.11 in	28.19 mm
Hammond Manufacturing 1539M23	3.5 A	10 %			1.5 "	38.1 mm	1 mH	Ferrite	Through Hole		Unshielded	1 kHz	Drum Core Wirewound	Radial Vertical Cylinder	195 mOhm	1.11 in	28.19 mm
