BNC-LR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN BNC RCPT R/A 50 OHM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Dielectric Material | Body Material | Center Contact Plating | Body Finish | Mounting Type | Housing Color | Connector Style | Shield Termination | Connector Type | Number of Ports | Contact Termination | Center Contact Material | Frequency - Max [Max] | Impedance | Fastening Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

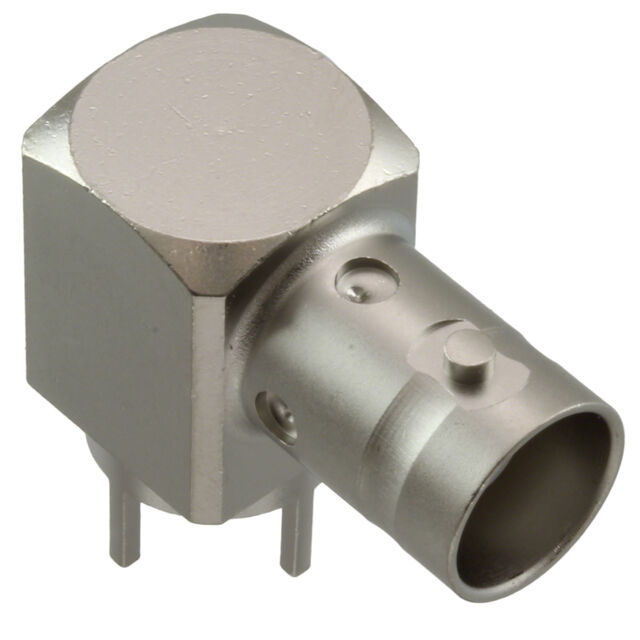

 Hirose Electric Co Ltd | -55 C | 85 °C | 5000 | Polytetrafluoroethylene (PTFE) | Brass | Silver | Nickel | Right Angle Through Hole | Silver | BNC | Solder | Female Socket Jack | 1 | Solder | Beryllium Copper | 4 GHz | 50 Ohms | Bayonet Lock | |
 Hirose Electric Co Ltd | -55 C | 85 °C | 1000 | Polytetrafluoroethylene (PTFE) | Brass | Gold | Nickel | Right Angle Through Hole | Silver | BNC | Solder | Female Socket Jack | 1 | Solder | Beryllium Copper | 4 GHz | 50 Ohms | Bayonet Lock | |

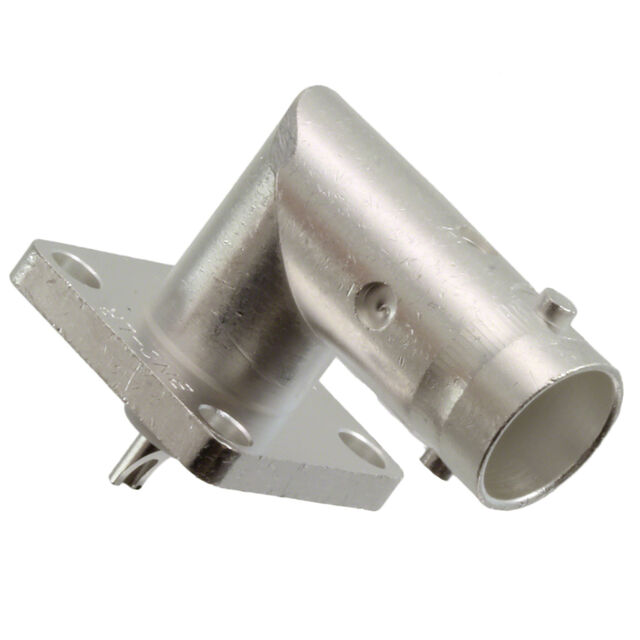

 Hirose Electric Co Ltd | -55 C | 85 °C | 1000 | Polytetrafluoroethylene (PTFE) | Brass | Silver | Silver | Panel Mount Right Angle Through Hole | Silver | BNC | Solder | Female Socket Jack | 1 | Solder Cup | Beryllium Copper | 4 GHz | 50 Ohms | Bayonet Lock | Flange |
Hirose Electric Co Ltd | -55 C | 85 °C | 1000 | Polytetrafluoroethylene (PTFE) | Brass | Gold | Nickel | Right Angle Through Hole | Silver | BNC | Solder | Female Socket Jack | 1 | Solder | Beryllium Copper | 2 GHz | 50 Ohms | Bayonet Lock | |
Hirose Electric Co Ltd | -55 C | 85 °C | 1000 | Polytetrafluoroethylene (PTFE) | Brass | Silver | Silver | Panel Mount Right Angle Through Hole | Silver | BNC | Solder | Female Socket Jack | 1 | Solder Cup | Beryllium Copper | 4 GHz | 50 Ohms | Bayonet Lock | Flange |
