M41T83 Series
Manufacturer: STMicroelectronics
Beta
⌘K
RTC IC, YY-MM-DD-DD, HH:MM:SS:TS/HS, 24HR, I2C, 2.38 V TO 5.5 V, 18 PINS, SOIC
| Part | Current - Timekeeping (Max) | Time Format | Date Format | Voltage - Supply, Battery [Min] | Voltage - Supply, Battery [Max] | Package / Case | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Interface | Memory Size | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

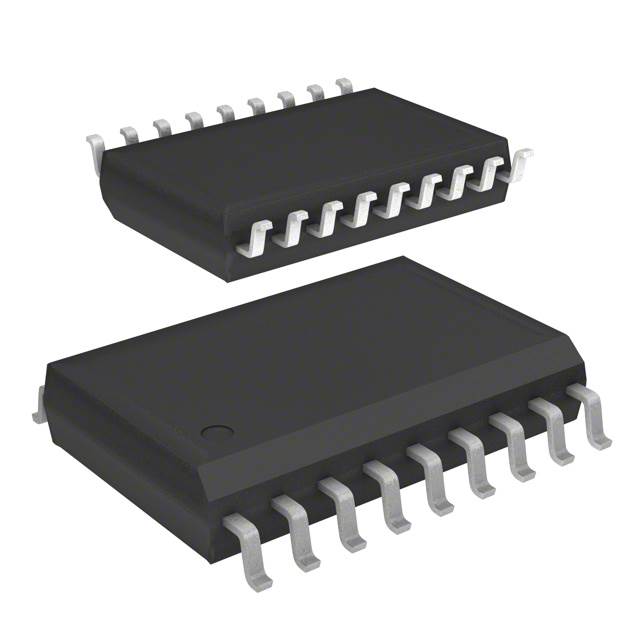

 STMicroelectronics | 10 µA | HH:MM:SS:hh (24 hr) | YY-MM-DD-dd | 2 V | 5.5 V | 18-SOX 18-SOIC with Crystal (7.5mm Width) | 18-SOX | 85 °C | -40 C | I2C 2-Wire Serial | 56 b | 5.5 V | 2.38 V | Surface Mount | Clock/Calendar | Alarm Leap Year Square Wave Output SRAM Watchdog Timer |
 STMicroelectronics | 10 µA | HH:MM:SS:hh (24 hr) | YY-MM-DD-dd | 2 V | 5.5 V | 16-VQFN Exposed Pad | 16-QFN (4X4) | 85 °C | -40 C | I2C 2-Wire Serial | 56 b | 5.5 V | 3 V | Surface Mount | Clock/Calendar | Alarm Leap Year Square Wave Output SRAM Watchdog Timer |
 STMicroelectronics | 10 µA | HH:MM:SS:hh (24 hr) | YY-MM-DD-dd | 2 V | 5.5 V | 18-SOX 18-SOIC with Crystal (7.5mm Width) | 18-SOX | 85 °C | -40 C | I2C 2-Wire Serial | 56 b | 5.5 V | 3 V | Surface Mount | Clock/Calendar | Alarm Leap Year Square Wave Output SRAM Watchdog Timer |
 STMicroelectronics | 10 µA | HH:MM:SS:hh (24 hr) | YY-MM-DD-dd | 2 V | 5.5 V | 18-SOX 18-SOIC with Crystal (7.5mm Width) | 18-SOX | 85 °C | -40 C | I2C 2-Wire Serial | 56 b | 5.5 V | 3 V | Surface Mount | Clock/Calendar | Alarm Leap Year Square Wave Output SRAM Watchdog Timer |
STMicroelectronics | 10 µA | HH:MM:SS:hh (24 hr) | YY-MM-DD-dd | 2 V | 5.5 V | 18-SOX 18-SOIC with Crystal (7.5mm Width) | 18-SOX | 85 °C | -40 C | I2C 2-Wire Serial | 56 b | 5.5 V | 2.7 V | Surface Mount | Clock/Calendar | Alarm Leap Year Square Wave Output SRAM Watchdog Timer |
 STMicroelectronics | 10 µA | HH:MM:SS:hh (24 hr) | YY-MM-DD-dd | 2 V | 5.5 V | 18-SOX 18-SOIC with Crystal (7.5mm Width) | 18-SOX | 85 °C | -40 C | I2C 2-Wire Serial | 56 b | 5.5 V | 2.7 V | Surface Mount | Clock/Calendar | Alarm Leap Year Square Wave Output SRAM Watchdog Timer |
 STMicroelectronics | 10 µA | HH:MM:SS:hh (24 hr) | YY-MM-DD-dd | 2 V | 5.5 V | 16-VQFN Exposed Pad | 16-QFN (4X4) | 85 °C | -40 C | I2C 2-Wire Serial | 56 b | 5.5 V | 2.7 V | Surface Mount | Clock/Calendar | Alarm Leap Year Square Wave Output SRAM Watchdog Timer |
STMicroelectronics | 10 µA | HH:MM:SS:hh (24 hr) | YY-MM-DD-dd | 2 V | 5.5 V | 18-SOX 18-SOIC with Crystal (7.5mm Width) | 18-SOX | 85 °C | -40 C | I2C 2-Wire Serial | 56 b | 5.5 V | 2.38 V | Surface Mount | Clock/Calendar | Alarm Leap Year Square Wave Output SRAM Watchdog Timer |
 STMicroelectronics | 10 µA | HH:MM:SS:hh (24 hr) | YY-MM-DD-dd | 2 V | 5.5 V | 16-VQFN Exposed Pad | 16-QFN (4X4) | 85 °C | -40 C | I2C 2-Wire Serial | 56 b | 5.5 V | 2.38 V | Surface Mount | Clock/Calendar | Alarm Leap Year Square Wave Output SRAM Watchdog Timer |
