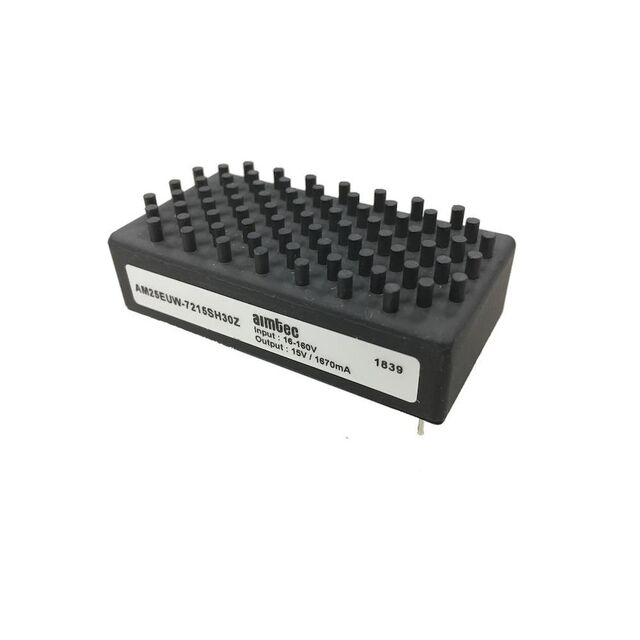

AM25EUW Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 24V 25W
| Part | Voltage - Isolation | Voltage - Output 1 | Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Applications | Power (Watts) | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Number of Outputs | Efficiency | Voltage - Input (Min) [Min] | Mounting Type | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 3000 V | 24 V | Isolated Module | -40 C | 100 °C | Heat Sink Remote On/Off | ITE (Commercial) | 25 W | 1.04 A | 27.6 mm | 16.6 mm | 0.65 in | 2.09 " | 53 mm | 1.09 in | 1 | 85 % | 16 V | Through Hole | 160 V |
aimtec | 3000 V | 15 V | Isolated Module | -40 C | 100 °C | Heat Sink Remote On/Off | ITE (Commercial) | 25 W | 1.67 A | 27.6 mm | 16.6 mm | 0.65 in | 2.09 " | 53 mm | 1.09 in | 1 | 85 % | 16 V | Through Hole | 160 V |
