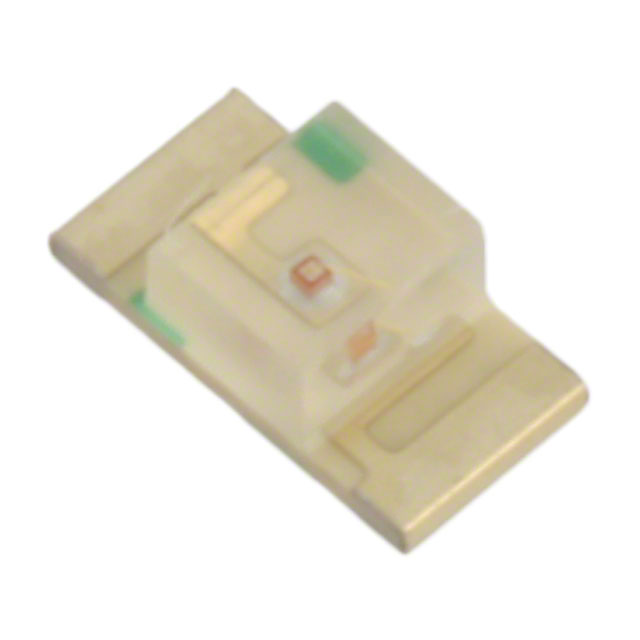

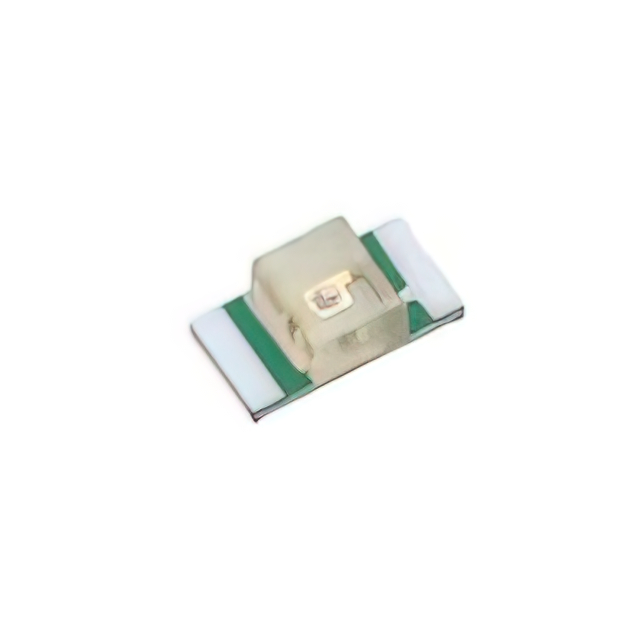

APTR3216 Series

Catalog

LED YL CLEAR CHIP SMD BOTTOM ENT

Part	Wavelength - Dominant	Package / Case	Height (Max) [z]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Wavelength - Peak	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Lens Size [x]	Lens Size [y]	Color	Lens Transparency	Viewing Angle	Lens Style	Configuration	Lens Color	Height (Max) [z]	Power - Max [Max]	Wavelength	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Id) (Max) [Max]	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]

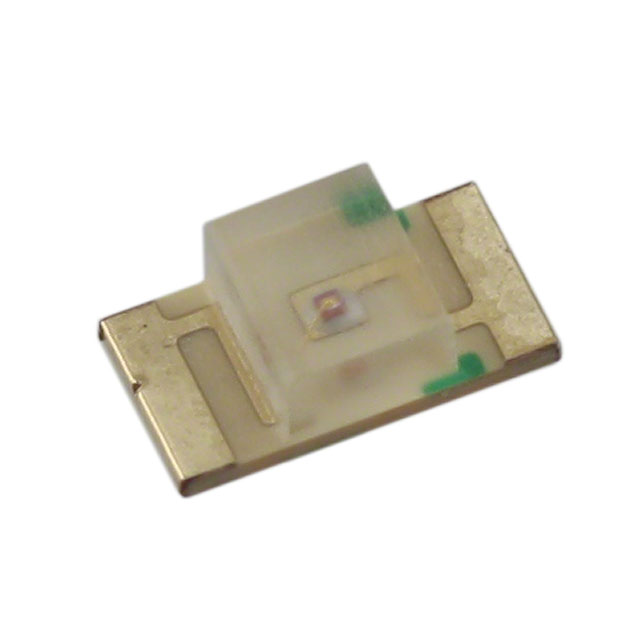

Kingbright APTR3216YC	588 nm	1206 (3216 Metric)	1.05 mm	Chip LED	2.1 V	8 mcd	590 nm	20 mA	1.6 mm	3.2 mm	Surface Mount Bottom Entry	1.4 mm	1.6 mm	Yellow	Clear	120 °	Rectangle with Flat Top	Standard	Colorless
Kingbright APTR3216SYCK/J3-PRV	590 nm	1206 (3216 Metric)		1206	2 V	320 mcd	590 nm	20 mA	1.6 mm	3.2 mm	Surface Mount	1.6 mm	1.4 mm	Yellow	Clear	140 °	Rectangle with Flat Top		Colorless	1.25 mm
Kingbright APTR3216EC	617 nm	1206 (3216 Metric)	1.05 mm	Chip LED	2 V	8 mcd	627 nm	20 mA	1.6 mm	3.2 mm	Surface Mount Bottom Entry	1.4 mm	1.6 mm	Red	Clear	120 °	Rectangle with Flat Top	Standard	Colorless
Kingbright APTR3216ZGC	525 nm	1206 (3216 Metric)	1.05 mm	Chip LED	3.3 V	400 mcd	515 nm	20 mA	1.6 mm	3.2 mm	Surface Mount Bottom Entry	1.4 mm	1.6 mm	Green	Clear	120 °	Rectangle with Flat Top	Standard	Colorless

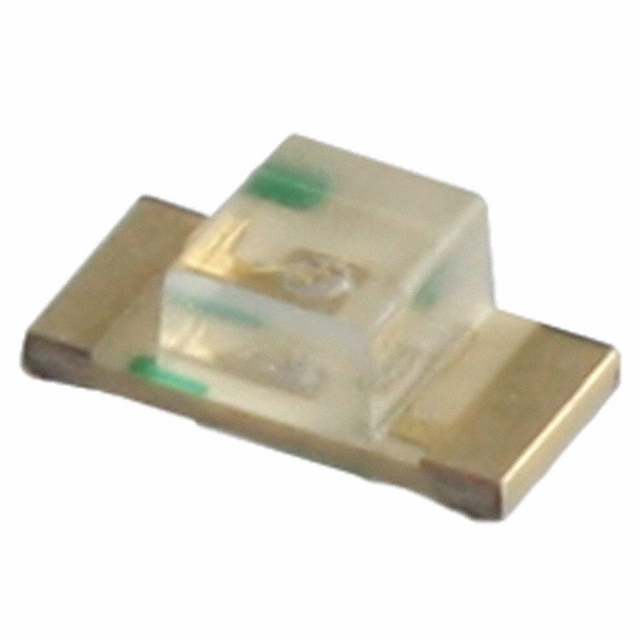

Kingbright APTR3216QBC/D	465 nm	1206 (3216 Metric)	1.05 mm	Chip LED	3.3 V	100 mcd	460 nm	20 mA	1.6 mm	3.2 mm	Surface Mount Bottom Entry	1.4 mm	1.6 mm	Blue	Clear	120 °	Rectangle with Flat Top	Standard	Colorless

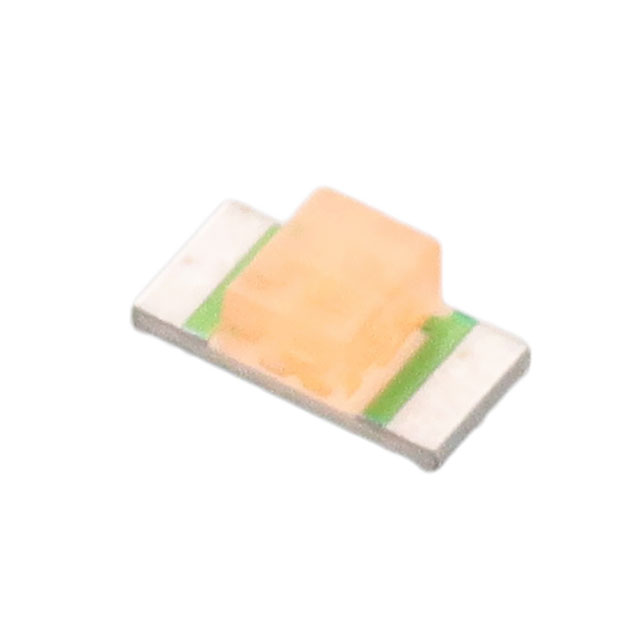

Kingbright APTR3216-VFX		1206 (3216 Metric)		1206	3.3 V	100 mcd		20 mA	1.6 mm	3.2 mm	Surface Mount	1.6 mm	1.4 mm	Violet		160 °	Rectangle with Flat Top			1.25 mm

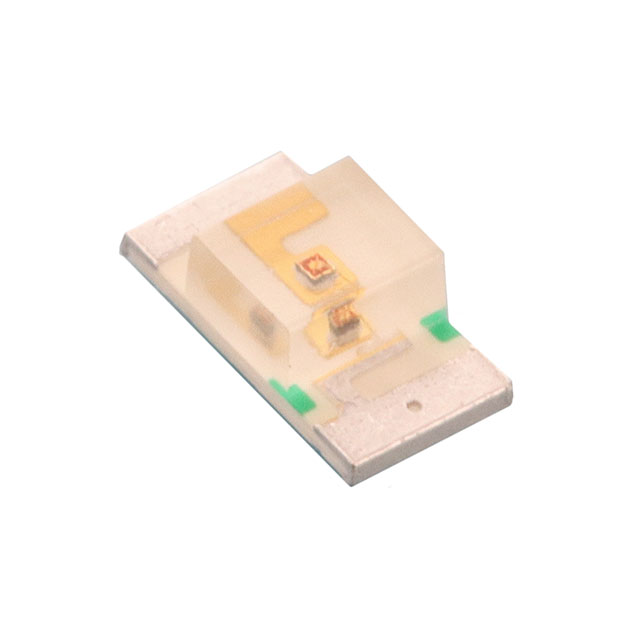

Kingbright APTR3216SECK/J3-PRV	625 nm	1206 (3216 Metric)		1206	2.2 V	350 mcd	640 nm	20 mA	1.6 mm	3.2 mm	Surface Mount	1.6 mm	1.4 mm	Red	Clear	140 °	Rectangle with Flat Top		Colorless	1.25 mm

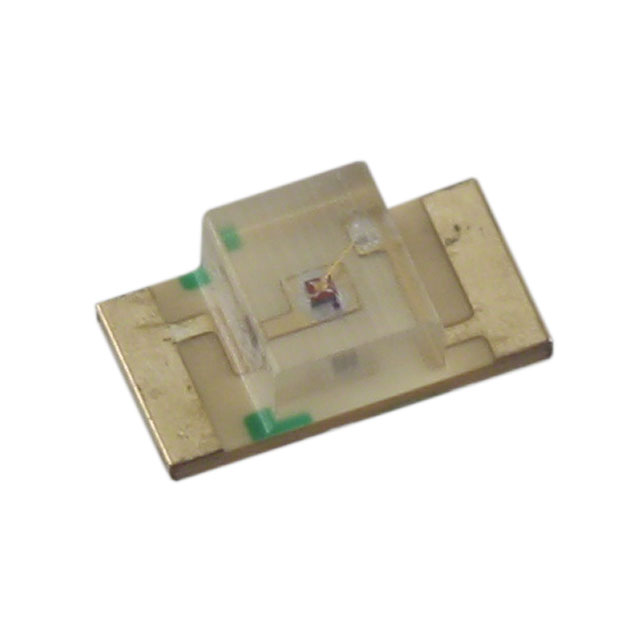

Kingbright APTR3216SURCK	630 nm	1206 (3216 Metric)	1.05 mm	Chip LED	1.95 V	80 mcd	645 nm	20 mA	1.6 mm	3.2 mm	Surface Mount Bottom Entry	1.4 mm	1.6 mm	Red	Clear	120 °	Rectangle with Flat Top	Standard	Colorless
Kingbright APTR3216PBC/A	470 nm	1206 (3216 Metric)	1.05 mm	Chip LED	3.2 V	60 mcd	468 nm	20 mA	1.6 mm	3.2 mm	Surface Mount Bottom Entry	1.4 mm	1.6 mm	Blue	Clear	120 °	Rectangle with Flat Top	Standard	Colorless

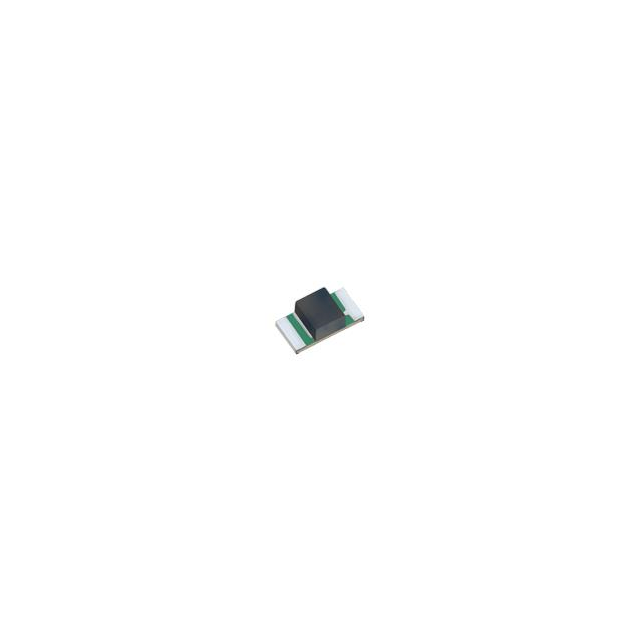

Kingbright APTR3216P3BT		1206 (3216 Metric)									Surface Mount					140 °					100 mW	940 nm	85 °C	-40 C	100 nA	Top View	30 V
