DF37CJ Series

Catalog

CONN HDR 30POS SMD GOLD

Part	Connector Type	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Mated Stacking Heights	Pitch	Pitch	Number of Rows [custom]	Contact Finish	Height Above Board	Height Above Board
Hirose Electric Co Ltd DF37CJ-30DP-0.4V(53)	Header Outer Shroud Contacts	Surface Mount	0.75 mm	0.03 in	30	1.23 mm	0.4 mm	0.016 in	2	Gold
Hirose Electric Co Ltd DF37CJ-50DS-0.4V(53)	Receptacle Center Strip Contacts	Surface Mount			50	1.23 mm	0.4 mm	0.016 in	2	Gold	0.037 in	0.95 mm
Hirose Electric Co Ltd DF37CJ-24DP-0.4V(52)	Header Outer Shroud Contacts	Surface Mount	0.75 mm	0.03 in	24	1.23 mm	0.4 mm	0.016 in	2	Gold
Hirose Electric Co Ltd DF37CJ-20DP-0.4V(53)	Header Outer Shroud Contacts	Surface Mount	0.75 mm	0.03 in	20	1.23 mm	0.4 mm	0.016 in	2	Gold
Hirose Electric Co Ltd DF37CJ-24DP-0.4V(53)	Header Outer Shroud Contacts	Surface Mount	0.75 mm	0.03 in	24	1.23 mm	0.4 mm	0.016 in	2	Gold
Hirose Electric Co Ltd DF37CJ-20DS-0.4V(53)	Receptacle Center Strip Contacts	Surface Mount			20	1.23 mm	0.4 mm	0.016 in	2	Gold	0.037 in	0.95 mm
Hirose Electric Co Ltd DF37CJ-30DS-0.4V(53)	Receptacle Center Strip Contacts	Surface Mount			30	1.23 mm	0.4 mm	0.016 in	2	Gold	0.037 in	0.95 mm

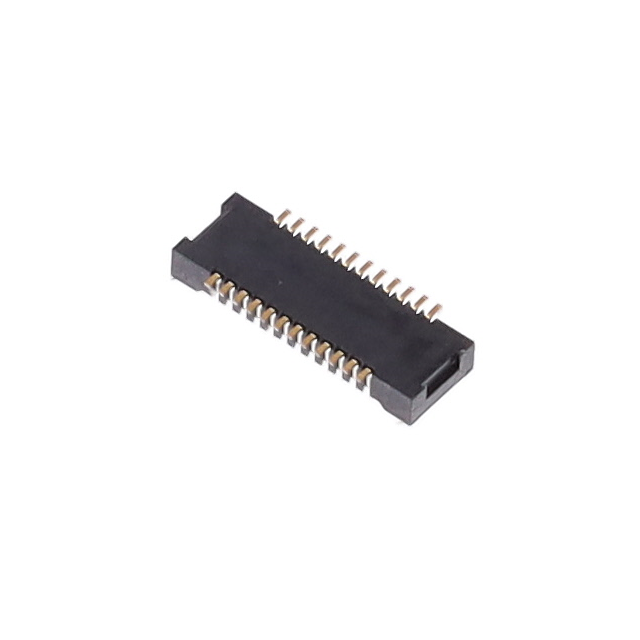

Hirose Electric Co Ltd DF37CJ-24DS-0.4V(53)	Receptacle Center Strip Contacts	Surface Mount			24	1.23 mm	0.4 mm	0.016 in	2	Gold	0.037 in	0.95 mm
Hirose Electric Co Ltd DF37CJ-40DP-0.4V(53)	Header Outer Shroud Contacts	Surface Mount	0.75 mm	0.03 in	40	1.23 mm	0.4 mm	0.016 in	2	Gold
Hirose Electric Co Ltd DF37CJ-60DP-0.4V(53)	Header Outer Shroud Contacts	Surface Mount	0.75 mm	0.03 in	60	1.23 mm	0.4 mm	0.016 in	2	Gold
