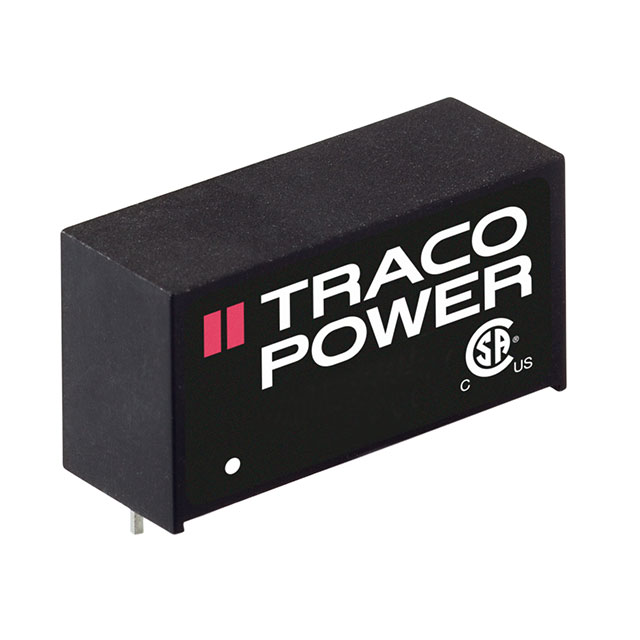

TMV 2415 Series

Catalog

MODULE DC-DC 24VIN 1-OUT 15V 0.067A 1W 4-PIN SIP

Part	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Features	Mounting Type	Number of Outputs	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Package / Case	Applications	Voltage - Isolation	Efficiency	Current - Output (Max) [Min]	Power (Watts)	Voltage - Output 2
Traco Power TMV 2415S	26.4 V	67 mA	0.4 "	6.1 mm	0.24 "	10.2 mm	0.77 in	19.5 mm	SCP	Through Hole	1	Isolated Module	-40 °C	85 °C	21.6 V	15 V	7-SIP Module 4 Leads	ITE (Commercial)	3000 V	79 %
Traco Power TMV 2415D	26.4 V	33 mA	0.4 "	6.1 mm	0.24 "	10.2 mm	0.77 in	19.5 mm	SCP	Through Hole	2	Isolated Module	-40 °C	85 °C	24 V	15 V	7-SIP Module 5 Leads	ITE (Commercial)	3000 V	78 %	33 mA	0.99 W	-15 V
