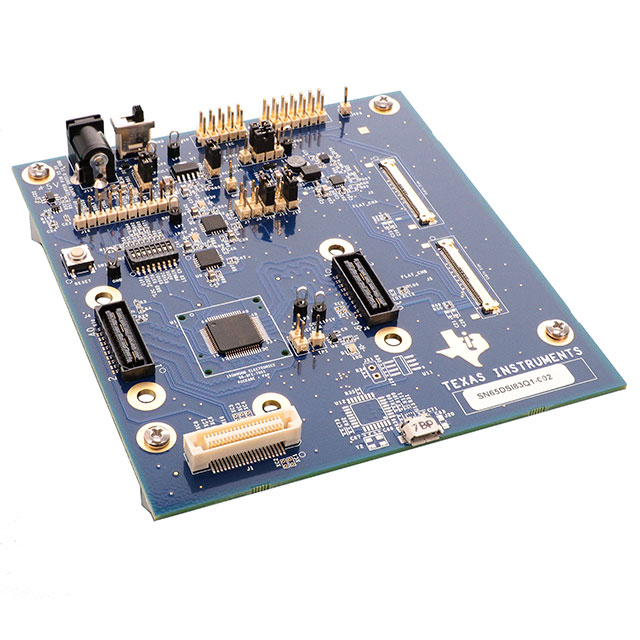

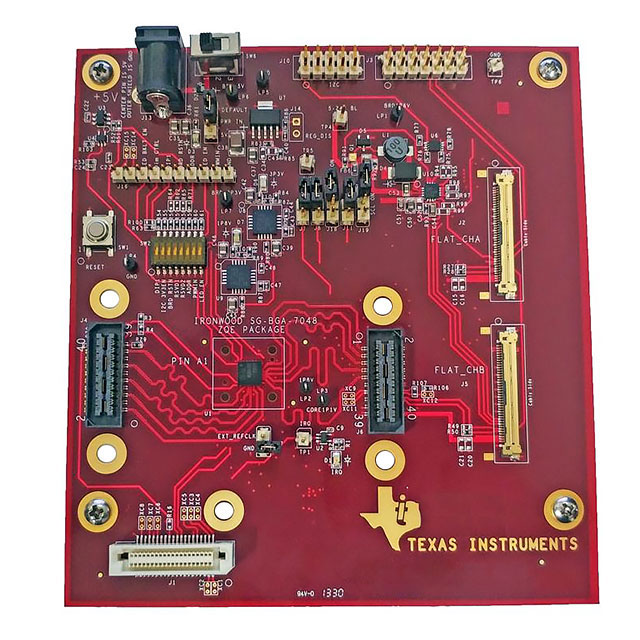

SN65DSI83-Q1 Series
Automotive single-channel MIPI® DSI to single-link LVDS bridge
Manufacturer: Texas Instruments
Catalog
Automotive single-channel MIPI® DSI to single-link LVDS bridge
Key Features
• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 2: –40°C to +105°C Ambient Operating TemperatureDevice HBM ESD Classification Level 3ADevice CDM ESD Classification Level C6Implements MIPI®D-PHY Version 1.00.00 Physical Layer Front-End and Display Serial Interface (DSI) Version 1.02.00Single-Channel DSI Receiver Configurable for One, Two, Three, or Four D-PHY Data Lanes Per Channel Operating up to 1 Gbps Per LaneSupports 18-bpp and 24-bpp DSI Video Packets with RGB666 and RGB888 FormatsMaximum Resolution up to 60 fps WUXGA 1920 × 1200 at 18 bpp and 24 bpp Color With Reduced Blanking. Suitable for 60 fps 1366 × 768 / 1280 × 800 at 18 bpp and 24 bppOutput for Single-Link LVDSSupports Single Channel DSI to Single-Link LVDS Operating ModeLVDS Output Clock Range of 25 MHz to 154 MHzLVDS Pixel Clock May be Sourced from Free-Running Continuous D-PHY Clock or External Reference Clock (REFCLK)1.8-V Main VCCPower SupplyLow Power Features Include SHUTDOWN Mode, Reduced LVDS Output Voltage Swing, Common Mode, and MIPI Ultra-Low Power State (ULPS) SupportLVDS Channel SWAP, LVDS PIN Order Reverse Feature for Ease of PCB RoutingPackaged in 64-pin 10-mm × 10-mm HTQFP (PAP) PowerPAD™ IC PackageQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 2: –40°C to +105°C Ambient Operating TemperatureDevice HBM ESD Classification Level 3ADevice CDM ESD Classification Level C6Implements MIPI®D-PHY Version 1.00.00 Physical Layer Front-End and Display Serial Interface (DSI) Version 1.02.00Single-Channel DSI Receiver Configurable for One, Two, Three, or Four D-PHY Data Lanes Per Channel Operating up to 1 Gbps Per LaneSupports 18-bpp and 24-bpp DSI Video Packets with RGB666 and RGB888 FormatsMaximum Resolution up to 60 fps WUXGA 1920 × 1200 at 18 bpp and 24 bpp Color With Reduced Blanking. Suitable for 60 fps 1366 × 768 / 1280 × 800 at 18 bpp and 24 bppOutput for Single-Link LVDSSupports Single Channel DSI to Single-Link LVDS Operating ModeLVDS Output Clock Range of 25 MHz to 154 MHzLVDS Pixel Clock May be Sourced from Free-Running Continuous D-PHY Clock or External Reference Clock (REFCLK)1.8-V Main VCCPower SupplyLow Power Features Include SHUTDOWN Mode, Reduced LVDS Output Voltage Swing, Common Mode, and MIPI Ultra-Low Power State (ULPS) SupportLVDS Channel SWAP, LVDS PIN Order Reverse Feature for Ease of PCB RoutingPackaged in 64-pin 10-mm × 10-mm HTQFP (PAP) PowerPAD™ IC Package
Description
AI
The SN65DSI83-Q1 DSI-to-LVDS bridge features a single-channel MIPI D-PHY receiver front-endconfiguration with four lanes per channel operating at 1 Gbps per lane and a maximum input bandwidth of 4 Gbps. The bridge decodes MIPI DSI 18-bpp RGB666 and 24-bpp RGB888 packets and converts the formatted video data-stream to an LVDS output operating at pixel clocks operating from 25 MHz to 154 MHz, offering a Single-Link LVDS with four data lanes per link.
The SN65DSI83-Q1 device can support up to WUXGA 1920 × 1200 at 60 frames per second, at 24 bpp with reduced blanking. The SN65DSI83-Q1 device is also suitable for applications using 60 fps 1366 × 768/1280 × 800 at 18 bpp and 24 bpp. Partial line buffering is implemented to accommodate the data stream mismatch between the DSI and LVDS interfaces.
The SN65DSI83-Q1 device is implemented in a small outline 10-mm × 10-mm HTQFP package with a0.5-mm pitch, and operates across a temperature range from –40°C to +105°C.
The SN65DSI83-Q1 DSI-to-LVDS bridge features a single-channel MIPI D-PHY receiver front-endconfiguration with four lanes per channel operating at 1 Gbps per lane and a maximum input bandwidth of 4 Gbps. The bridge decodes MIPI DSI 18-bpp RGB666 and 24-bpp RGB888 packets and converts the formatted video data-stream to an LVDS output operating at pixel clocks operating from 25 MHz to 154 MHz, offering a Single-Link LVDS with four data lanes per link.
The SN65DSI83-Q1 device can support up to WUXGA 1920 × 1200 at 60 frames per second, at 24 bpp with reduced blanking. The SN65DSI83-Q1 device is also suitable for applications using 60 fps 1366 × 768/1280 × 800 at 18 bpp and 24 bpp. Partial line buffering is implemented to accommodate the data stream mismatch between the DSI and LVDS interfaces.
The SN65DSI83-Q1 device is implemented in a small outline 10-mm × 10-mm HTQFP package with a0.5-mm pitch, and operates across a temperature range from –40°C to +105°C.
