10076801 Series

Catalog

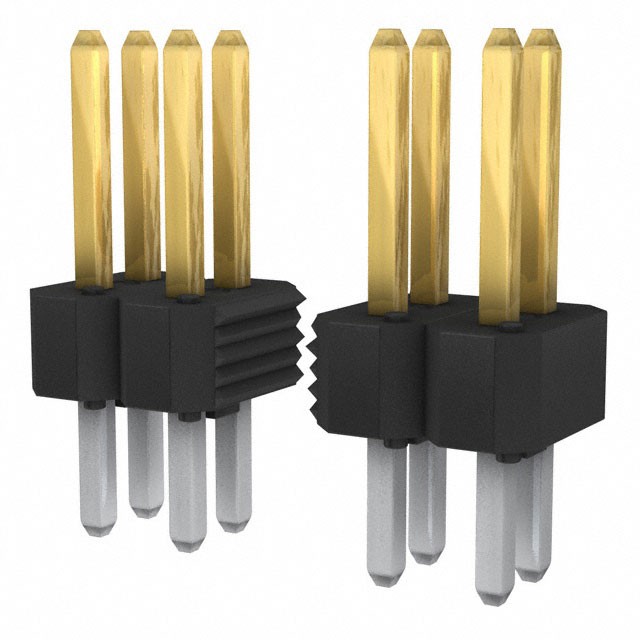

CONN HEADER VERT 6POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Color	Contact Material	Connector Type	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Number of Positions Loaded	Contact Type	Contact Finish - Mating	Fastening Type	Insulation Material	Termination	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Shrouding	Mounting Type	Current Rating (Amps)	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Features	Overall Contact Length [x]	Overall Contact Length [x]

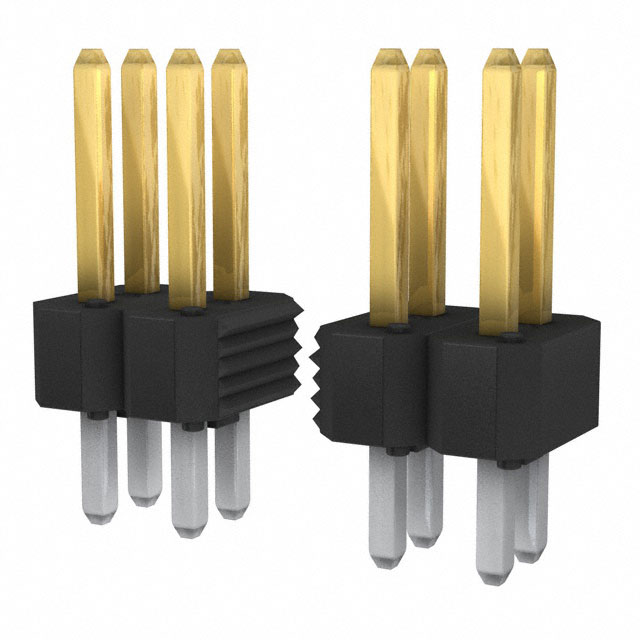

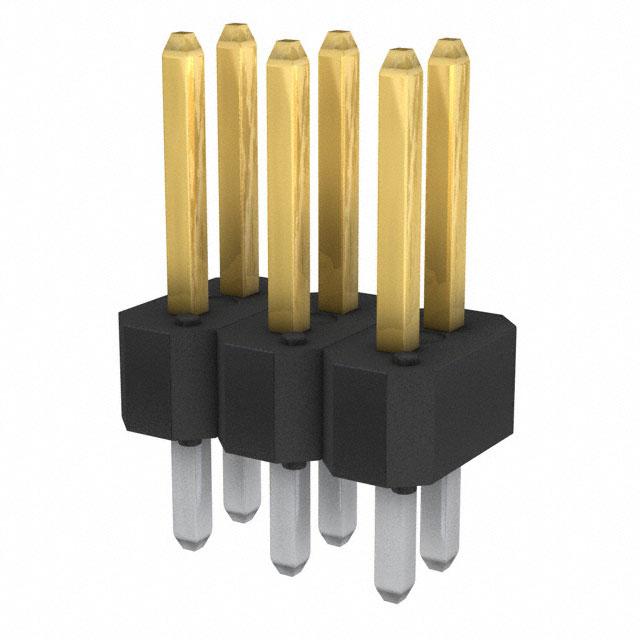

Amphenol ICC (FCI) 10076801-101-06LF	78.7 µin	2 µm	Black	Phosphor Bronze	Header Breakaway	0.112 in	2.85 mm	0.76 Ám	30 Áin	6	All	Male Pin	Gold GXT™	Push-Pull	Thermoplastic	Solder	0.1 "	2.54 mm	UL94 V-0	Square	0.23 in	5.84 mm	Unshrouded	Through Hole	3 A	Tin	0.1 in	2.54 mm	11.18 mm	0.44 in	130 °C	-65 ░C	2	2.5 mm	0.098 in

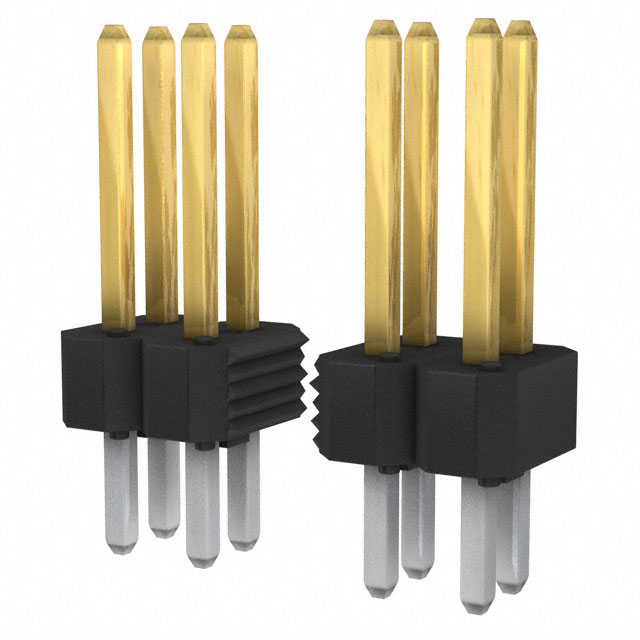

Amphenol ICC (FCI) 10076801-105-40LF	78.7 µin	2 µm	Black	Phosphor Bronze	Header Breakaway	0.112 in	2.85 mm	0.76 Ám	30 Áin	40	All	Male Pin	Gold GXT™	Push-Pull	Thermoplastic	Solder	0.1 "	2.54 mm	UL94 V-0	Square	0.303 in	7.7 mm	Unshrouded	Through Hole	3 A	Tin	0.1 in	2.54 mm	13.55 mm		130 °C	-65 ░C	2	3 mm	0.118 in	0.533 in
Amphenol ICC (FCI) 10076801-101A20LF	78.7 µin	2 µm	Black	Phosphor Bronze	Header Breakaway	0.112 in	2.85 mm	0.76 Ám	30 Áin	20	All	Male Pin	Gold GXT™	Push-Pull	Thermoplastic	Solder	0.1 "	2.54 mm	UL94 V-0	Square	0.23 in	5.84 mm	Unshrouded	Through Hole	3 A	Tin	0.1 in	2.54 mm	11.18 mm	0.44 in	130 °C	-65 ░C	2	2.5 mm	0.098 in		Pick and Place
Amphenol ICC (FCI) 10076801-101-12LF	78.7 µin	2 µm	Black	Phosphor Bronze	Header Breakaway	0.112 in	2.85 mm	0.76 Ám	30 Áin	12	All	Male Pin	Gold GXT™	Push-Pull	Thermoplastic	Solder	0.1 "	2.54 mm	UL94 V-0	Square	0.23 in	5.84 mm	Unshrouded	Through Hole	3 A	Tin	0.1 in	2.54 mm	11.18 mm	0.44 in	130 °C	-65 ░C	2	2.5 mm	0.098 in

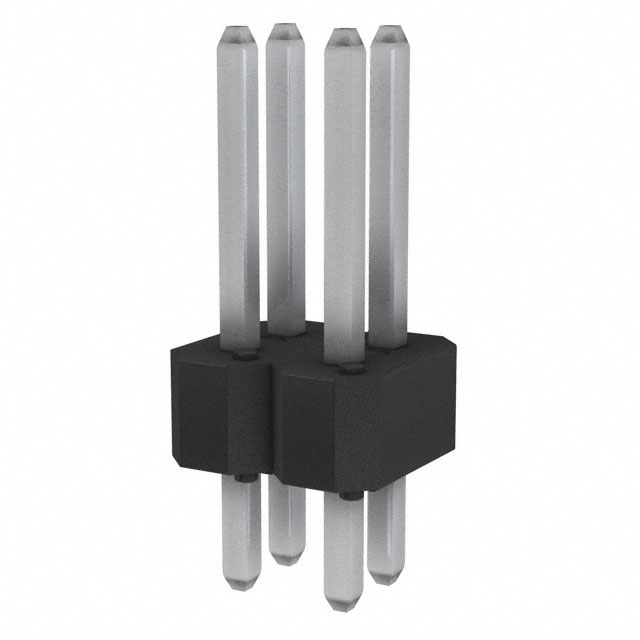

Amphenol ICC (FCI) 10076801-402-04LF	78.7 µin	2 µm	Black	Phosphor Bronze	Header Breakaway	0.112 in	2.85 mm	2 µm	78.7 µin	4	All	Male Pin		Push-Pull	Thermoplastic	Solder	0.1 "	2.54 mm	UL94 V-0	Square	0.266 in	6.75 mm	Unshrouded	Through Hole	3 A	Tin	0.1 in	2.54 mm	12.09 mm	0.476 in	130 °C	-65 ░C	2	2.5 mm	0.098 in

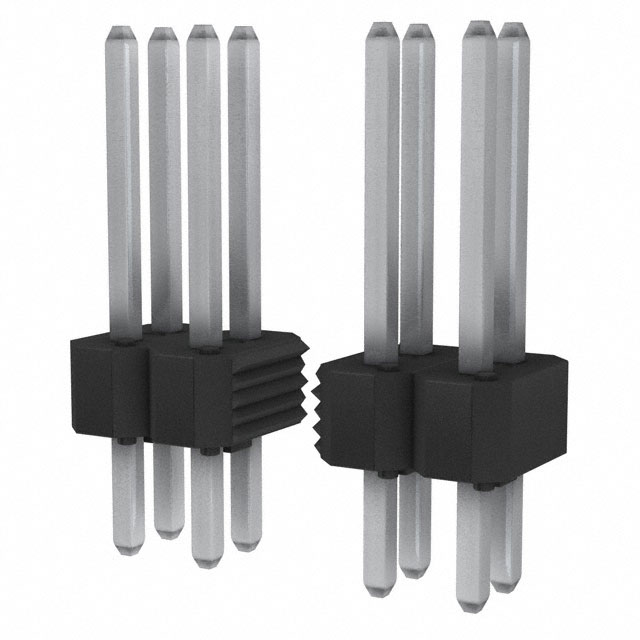

Amphenol ICC (FCI) 10076801-406T32LF	78.7 µin	2 µm	Black	Phosphor Bronze	Header Breakaway	0.112 in	2.85 mm	2 µm	78.7 µin		All	Male Pin		Push-Pull	Thermoplastic	Solder	0.1 "	2.54 mm	UL94 V-0	Square	0.323 in	8.2 mm	Unshrouded	Through Hole	3 A	Tin	0.1 in	2.54 mm	14.04 mm	0.553 in	130 °C	-65 ░C	2	3 mm	0.118 in

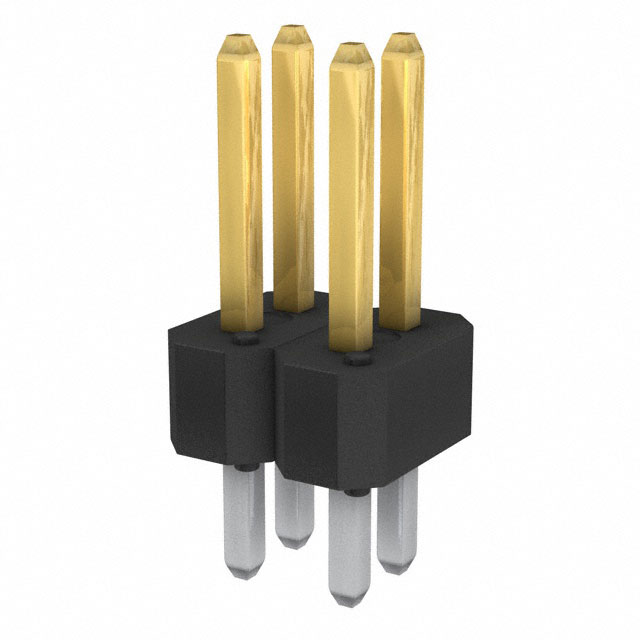

Amphenol ICC (FCI) 10076801-101-04LF	78.7 µin	2 µm	Black	Phosphor Bronze	Header Breakaway	0.112 in	2.85 mm	0.76 Ám	30 Áin	4	All	Male Pin	Gold GXT™	Push-Pull	Thermoplastic	Solder	0.1 "	2.54 mm	UL94 V-0	Square	0.23 in	5.84 mm	Unshrouded	Through Hole	3 A	Tin	0.1 in	2.54 mm	11.18 mm	0.44 in	130 °C	-65 ░C	2	2.5 mm	0.098 in
Amphenol ICC (FCI) 10076801-105-20LF	78.7 µin	2 µm	Black	Phosphor Bronze	Header Breakaway	0.112 in	2.85 mm	0.76 Ám	30 Áin	20	All	Male Pin	Gold GXT™	Push-Pull	Thermoplastic	Solder	0.1 "	2.54 mm	UL94 V-0	Square	0.303 in	7.7 mm	Unshrouded	Through Hole	3 A	Tin	0.1 in	2.54 mm	13.55 mm		130 °C	-65 ░C	2	3 mm	0.118 in	0.533 in
Amphenol ICC (FCI) 10076801-803-16LF	78.7 µin	2 µm	Black	Phosphor Bronze	Header Breakaway	0.112 in	2.85 mm	0.38 µm	15 µin	16	All	Male Pin	Gold	Push-Pull	Thermoplastic	Solder	0.1 "	2.54 mm	UL94 V-0	Square	0.23 in	5.84 mm	Unshrouded	Through Hole	3 A	Tin	0.1 in	2.54 mm			130 °C	-65 ░C	2	3 mm	0.118 in			0.46 in	11.68 mm

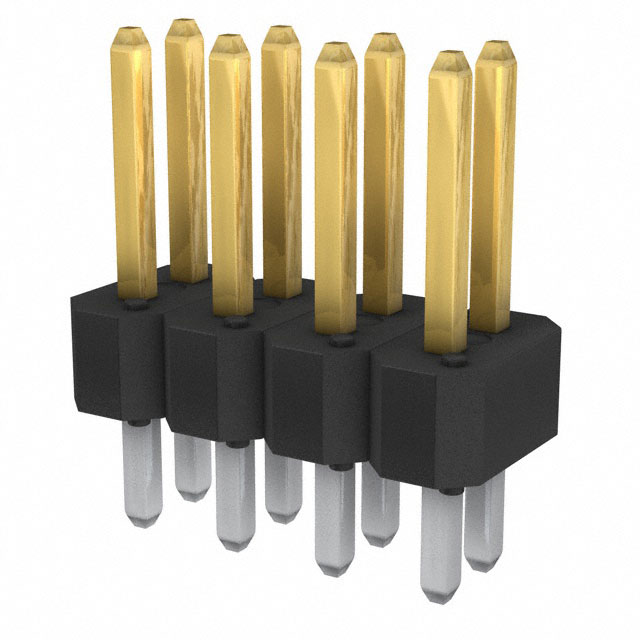

Amphenol ICC (FCI) 10076801-101-08LF	78.7 µin	2 µm	Black	Phosphor Bronze	Header Breakaway	0.112 in	2.85 mm	0.76 Ám	30 Áin	8	All	Male Pin	Gold GXT™	Push-Pull	Thermoplastic	Solder	0.1 "	2.54 mm	UL94 V-0	Square	0.23 in	5.84 mm	Unshrouded	Through Hole	3 A	Tin	0.1 in	2.54 mm	11.18 mm	0.44 in	130 °C	-65 ░C	2	2.5 mm	0.098 in
