110-83 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONN IC DIP SOCKET 24POS GOLD
| Part | Material Flammability Rating | Contact Resistance | Current Rating (Amps) | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Type | Type | Contact Finish - Post | Mounting Type | Housing Material | Contact Finish - Mating | Contact Material - Post [custom] | Termination | Contact Material - Mating | Pitch - Post | Pitch - Post | Features | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Termination Post Length | Termination Post Length | Type | Type [custom] | Type [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | UL94 V-0 | 10 mOhm | 1 A | 29.5 µin | 0.75 µm | 12 | 2 | 24 | 0.4 in | DIP | Tin | Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Brass | Solder | Beryllium Copper | 0.1 in | 2.54 mm | Open Frame | -55 C | 125 °C | 0.1 " | 2.54 mm | ||||||
 Preci-Dip | UL94 V-0 | 10 mOhm | 1 A | 29.5 µin | 0.75 µm | 20 | 0.3 in | DIP | Tin | Surface Mount | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Brass | Solder | Beryllium Copper | 0.1 in | 2.54 mm | Open Frame | -55 C | 125 °C | 0.1 " | 2.54 mm | 3 mm | 0.118 in | 7.62 mm | |||||
Preci-Dip | UL94 V-0 | 10 mOhm | 1 A | 29.5 µin | 0.75 µm | 12 | 2 | 24 | 0.3 in | DIP | Tin | Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Brass | Solder | Beryllium Copper | 0.1 in | 2.54 mm | No Center Bar Open Frame | -55 C | 125 °C | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 7.62 mm | |||
 Preci-Dip | UL94 V-0 | 10 mOhm | 1 A | 29.5 µin | 0.75 µm | DIP | Tin | Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Brass | Solder | Beryllium Copper | 0.1 in | 2.54 mm | Open Frame | -55 C | 125 °C | 0.1 " | 2.54 mm | 15.24 mm | 0.6 in | ||||||||
Preci-Dip | UL94 V-0 | 10 mOhm | 1 A | 29.5 µin | 0.75 µm | 4 pins | 0.3 in | DIP | Tin | Surface Mount | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Brass | Solder | Beryllium Copper | 0.1 in | 2.54 mm | Open Frame | -55 C | 125 °C | 0.1 " | 2.54 mm | 3 mm | 0.118 in | 7.62 mm | 2 x 2 | ||||
 Preci-Dip | UL94 V-0 | 10 mOhm | 1 A | 29.5 µin | 0.75 µm | 2 | 32 | 64 | 0.9 in | DIP | Tin | Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Brass | Solder | Beryllium Copper | 0.1 in | 2.54 mm | Open Frame | -55 C | 125 °C | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 22.86 mm | |||
Preci-Dip | UL94 V-0 | 10 mOhm | 1 A | 29.5 µin | 0.75 µm | 32 | DIP | Tin | Surface Mount | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Brass | Solder | Beryllium Copper | 0.1 in | 2.54 mm | Open Frame | -55 C | 125 °C | 0.1 " | 2.54 mm | 3 mm | 0.118 in | 15.24 mm | 0.6 in | |||||

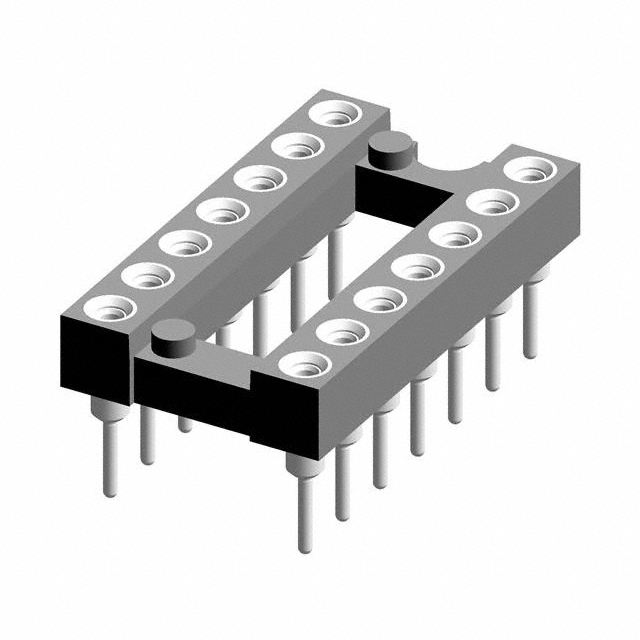

 Preci-Dip | UL94 V-0 | 10 mOhm | 1 A | 29.5 µin | 0.75 µm | 14 | 0.3 in | DIP | Tin | Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Brass | Solder | Beryllium Copper | 0.1 in | 2.54 mm | Open Frame | -55 C | 125 °C | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 7.62 mm | |||||

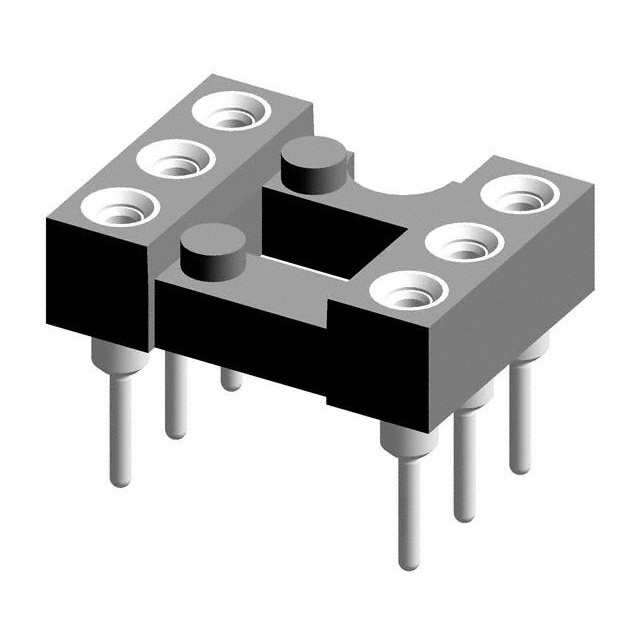

 Preci-Dip | UL94 V-0 | 10 mOhm | 1 A | 29.5 µin | 0.75 µm | 2 | 3 positions or pins | 6 | 0.3 in | DIP | Tin | Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Brass | Solder | Beryllium Copper | 0.1 in | 2.54 mm | Open Frame | -55 C | 125 °C | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 7.62 mm | |||

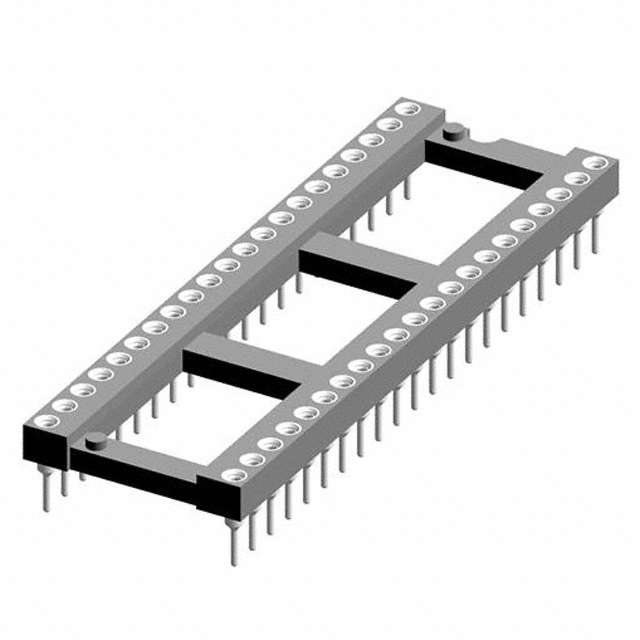

 Preci-Dip | UL94 V-0 | 10 mOhm | 1 A | 29.5 µin | 0.75 µm | 42 | DIP | Tin | Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Brass | Solder | Beryllium Copper | 0.1 in | 2.54 mm | Open Frame | -55 C | 125 °C | 0.1 " | 2.54 mm | 15.24 mm | 0.6 in |
