RP1035 Series

Catalog

LIGHT GRAY ACRYLONITRILE BUTADIENE STYRENE FLANGE MOUNT WATERTIGHT ENCLOSURE

Part	Area (L x W)	Area (L x W)	Color	Material	Container Type	Material Flammability Rating	Design	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height [z]	Height [z]	Thickness	Thickness
Hammond Manufacturing RP1035BFC	61.8 cm˛	9.58 in˛	Clear Cover/Door Gray	ABS	Box	UL94 HB	Cover Included	9.58 in²	61.8 cm²	2.03 "	51.56 mm	4.72 "	119.89 mm	39.88 mm	1.57 in	0.08 in	2.03 mm

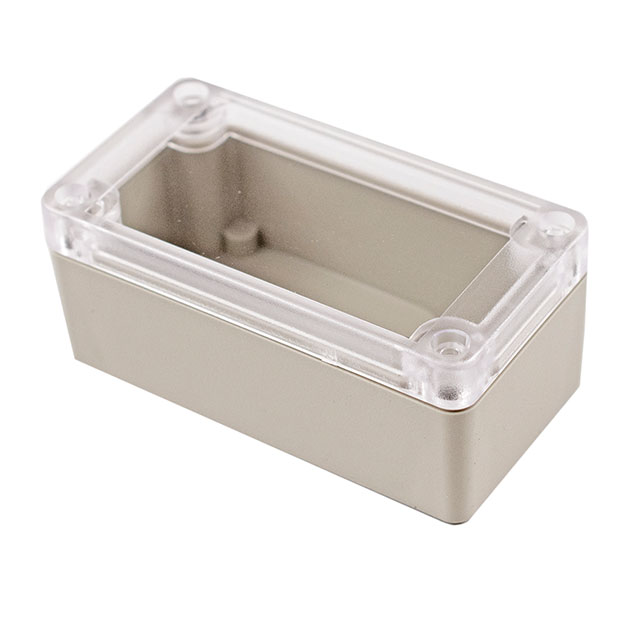

Hammond Manufacturing RP1035C	47.5 cm²	7.36 in²	Clear Cover/Door Gray	ABS	Box	UL94 HB	Cover Included			1.97 in	50.04 mm	3.74 "	95 mm	39.88 mm	1.57 in	0.08 in	2.03 mm
Hammond Manufacturing RP1035BF	61.8 cm˛	9.58 in˛	Gray	ABS	Box	UL94 HB	Cover Included	9.58 in²	61.8 cm²	2.03 "	51.56 mm	4.72 "	119.89 mm	39.88 mm	1.57 in	0.08 in	2.03 mm
