C6358 Series

Catalog

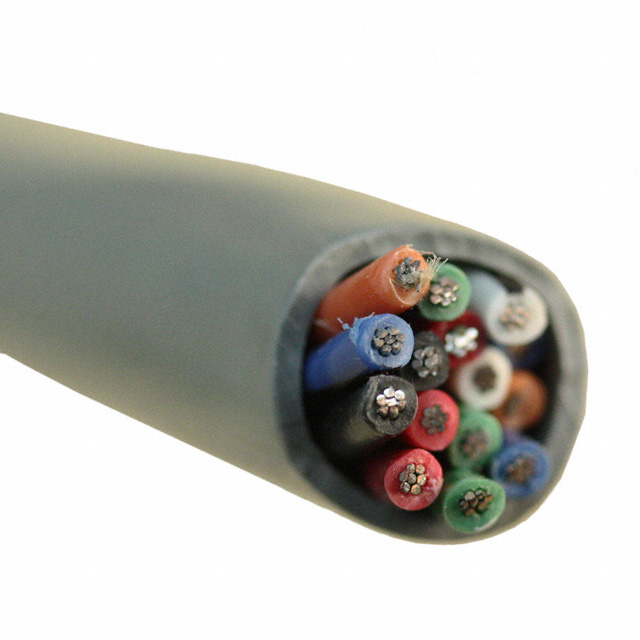

CABLE 15COND 20AWG GRAY 100'

Part	Usage	Conductor Material	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Jacket Color	Conductor Insulation
Prysmian Group C6358A.41.10	Communication Control	Copper Tinned	20 AWG	Poly-Vinyl Chloride (PVC)	0.392 "	9.96 mm	15	80 °C	-20 ░C	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	300 VDC	0.813 mm	0.032 in	Multi-Conductor	28 AWG	7	100 ft	30.5 m	Gray	Poly-Vinyl Chloride (PVC)
Prysmian Group C6358A.41.10	Communication Control	Copper Tinned	20 AWG	Poly-Vinyl Chloride (PVC)	0.392 "	9.96 mm	15	80 °C	-20 ░C	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	300 VDC	0.813 mm	0.032 in	Multi-Conductor	28 AWG	7	100 ft	30.5 m	Gray	Poly-Vinyl Chloride (PVC)
