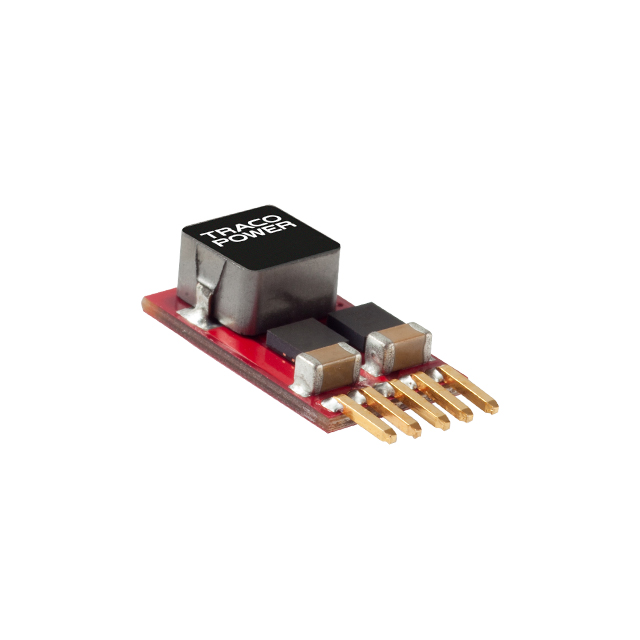

TSR 3 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 5-15V 45W
| Part | Power (Watts) | Package / Case | Efficiency | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Type | Voltage - Input (Min) [Min] | Features | Applications | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 45 W | 5-SIP Module | 95 % | 15 V | 5 V | Linear Regulator Replacement | 10 VDC | Remote On/Off SCP | ITE (Commercial) | 1 | -40 °C | 85 °C | 30 V | 3 A | Through Hole | 0.65 in | 6.2 mm | 0.24 in | 16.5 mm | 10.4 mm | 0.41 " |
 Traco Power | 45 W | 5-SIP Module | 95 % | 15 V | 5 V | Linear Regulator Replacement | 10 VDC | Remote On/Off SCP | ITE (Commercial) | 1 | -40 °C | 85 °C | 30 V | 3 A | Through Hole | 0.61 in | 6.2 mm | 0.24 in | 15.5 mm | 9.4 mm | 0.37 in |
