P-Channel Power MOSFET, -30V, -40A, 18.5mΩ
P-Channel Power MOSFET, -30V, -40A, 18.5mΩ
| Part | Rds On (Max) @ Id, Vgs | Vgs (Max) | Drive Voltage (Max Rds On, Min Rds On) | Mounting Type | Supplier Device Package | Power Dissipation (Max) | Current - Continuous Drain (Id) @ 25°C | Operating Temperature | Package / Case | Gate Charge (Qg) (Max) @ Vgs | Technology | FET Type | Drain to Source Voltage (Vdss) | Input Capacitance (Ciss) (Max) @ Vds |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

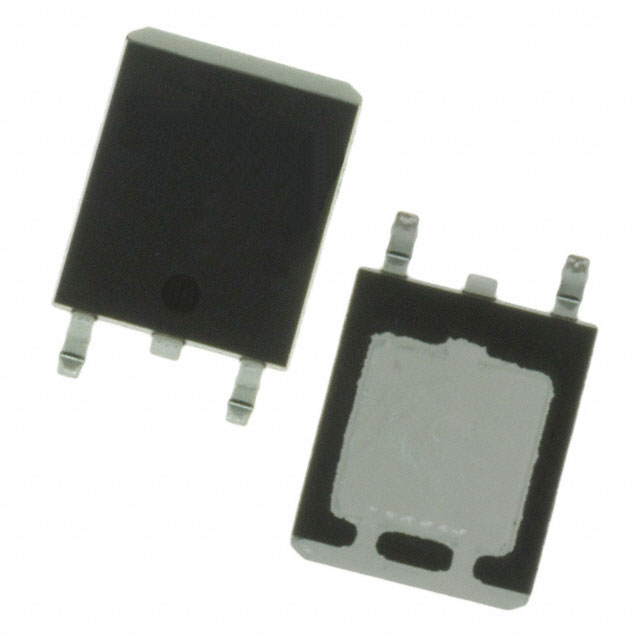

 ON Semiconductor | 18.5 mOhm | 20 V | 4.5 V 10 V | Surface Mount | ATPAK | 40 W | 40 A | 150 °C | ATPAK (2 leads+tab) | 34 nC | MOSFET (Metal Oxide) | P-Channel | 30 V | 1490 pF |
