AD9208 Series
Manufacturer: Analog Devices
Beta
⌘K

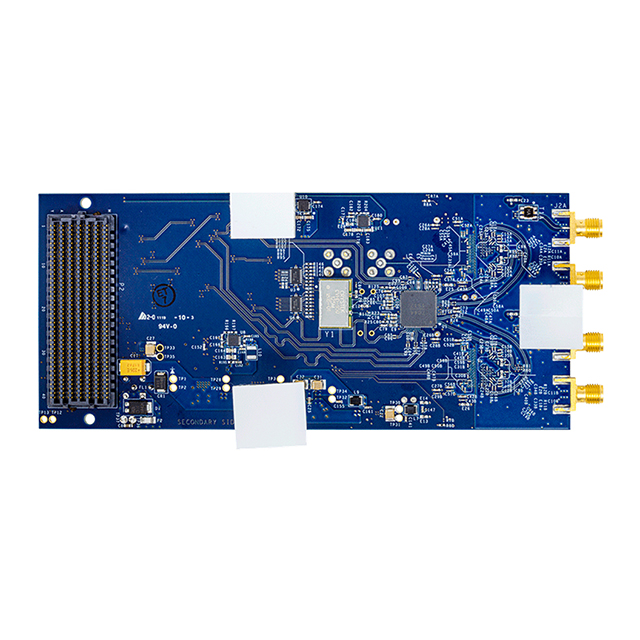

14-BIT, 3GSPS DUAL ANALOG-TO-DIGITAL CONVERTER EVALUATION BOARD BASED ON AD9208. WITH THE FMC CONNECTOR
| Part | Supplied Contents | Data Interface | Sampling Rate (Per Second) | Number of A/D Converters | Power (Typ) @ Conditions | Utilized IC / Part | Input Range | Number of Bits | Configuration | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Package / Case | Input Type | Reference Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Number of Inputs | Architecture | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | Board(s) | JESD204B Serial | 3 G | 2 | 1.65 W | AD9208 | 1.7 Vpp | 14 | ||||||||||||||
 Analog Devices | Board(s) | JESD204B Serial | 3 G | 2 | 1.65 W | AD9208 | 1.7 Vpp | 14 | ||||||||||||||
 Analog Devices | JESD204B | 3 G | 2 | 14 | ADC | 1 V 1.95 V 2.56 V | 0.95 V 1.85 V 2.44 V | 1 V 1.95 V | 0.95 V 1.85 V | 196-LFBGA Exposed Pad | Differential | Internal | 85 °C | -40 °C | 196-BGA-ED (12x12) | 2 | Pipelined | Surface Mount | ||||
Analog Devices | 196-LFBGA Exposed Pad | 196-BGA-ED (12x12) | Surface Mount |
