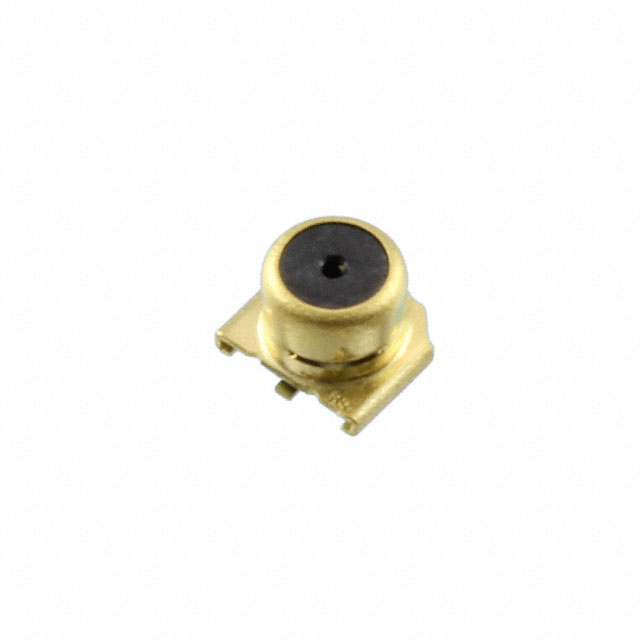

MS-162 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN COAX SWITCH RCPT STR 50OHM
| Part | Body Material | Mating Cycles | Insertion Loss | Center Contact Plating | Body Finish | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Shield Termination | Features | Connector Style [diameter] | Connector Style | Frequency - Max [Max] | Center Contact Material | Contact Termination | Mounting Type | Number of Ports | Impedance | Connector Type | Housing Color | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Brass | 12000 | 0.7 dB | Gold | Gold | Liquid Crystal Polymer (LCP) | 85 °C | -40 C | Solder | Internal Switch | 4 mm | Coaxial Switch | 10 GHz | Copper Alloy | Solder | Surface Mount | 1 | 50 Ohms | Receptacle Female Socket | Gold | Snap-On |
 Hirose Electric Co Ltd | Brass | 12000 | 0.7 dB | Gold | Gold | Polyamide (PA) Nylon | 85 °C | -40 C | Solder | Internal Switch | 4 mm | Coaxial Switch | 10 GHz | Beryllium Copper | Solder | Surface Mount | 1 | 50 Ohms | Receptacle Female Socket | Gold | Snap-On |
