VNH9013 Series

Catalog

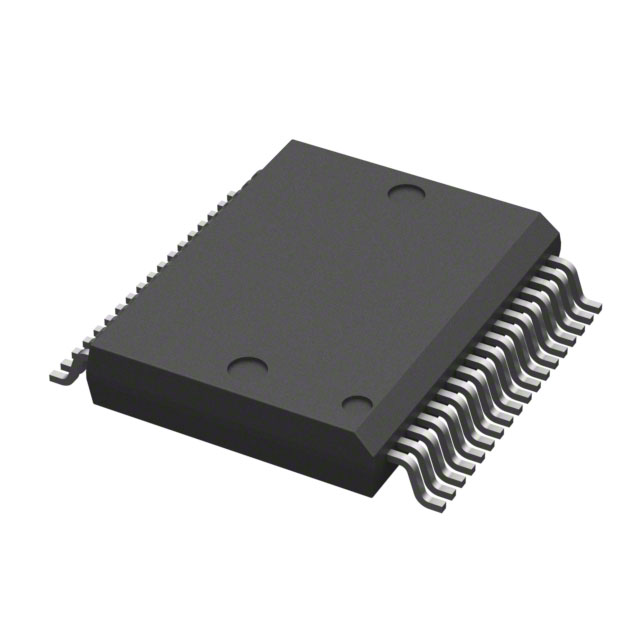

IC HALF BRIDGE DRVR 40A 36PWRSSO

Part	Output Configuration	Voltage - Load [Max]	Rds On (Typ) [custom]	Rds On (Typ) [custom]	Voltage - Supply	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output / Channel	Load Type	Operating Temperature	Drain to Source Voltage (Vdss)	Package / Case	Qualification	Technology	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Grade	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Rds On (Max) @ Id, Vgs	Voltage - Load
STMicroelectronics VNH9013Y	Half Bridge (2)	80 V	7.8 mOhm	6 mOhm	80 V	DC Motors General Purpose	175 °C	-40 °C	40 A	Inductive Resistive	175 °C	80 V	36-PowerBFSOP (0.295" 7.50mm Width)	AEC-Q100	MOSFET (Metal Oxide)	Surface Mount	40 nC 45 nC	Automotive	1750 pF 2600 pF	PowerSSO-36 TP	6 mOhm 7.8 mOhm
STMicroelectronics VNH9013YTR	Half Bridge (2)		7.8 mOhm	6 mOhm	80 V	DC Motors General Purpose			40 A	Inductive Resistive	175 °C	80 V	36-PowerBFSOP (0.295" 7.50mm Width)	AEC-Q100	MOSFET (Metal Oxide)	Surface Mount	40 nC 45 nC	Automotive	1750 pF 2600 pF	PowerSSO-36 TP	6 mOhm 7.8 mOhm	80 V
