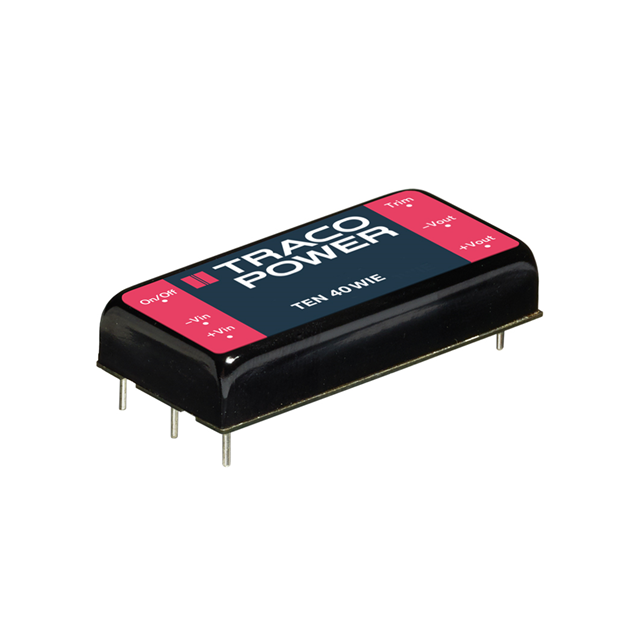

TEN 40 Series

Catalog

DC DC CONVERTER 12V 40W

Part	Power (Watts)	Type	Current - Output (Max) [Max]	Package / Case	Applications	Mounting Type	Efficiency	Approval Agency	Voltage - Isolation	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension	Features	Voltage - Output 1	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Traco Power TEN 40-2412WIE	40 W	Isolated Module	3.333 A	6-DIP Module	ITE (Commercial)	Through Hole	92 %	CB cURus	1.6 kV	1	85 °C	-40 C	36 V	9 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	Adjustable Output Remote On/Off	12 V
Traco Power TEN 40-4823E	40 W	Isolated Module		6-DIP Module	ITE (Commercial)	Through Hole	91 %	CB cURus	1.6 kV	2	85 °C	-40 C	75 V	36 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	Adjustable Output Remote On/Off	15 V	-15 V	1.333 A	1.333 A
Traco Power TEN 40-1222	40 W	Isolated Module	1.67 A	9-DIP Module 8 Leads	ITE (Commercial)	Through Hole	85 %		1.5 kV	2	75 ░C	-40 C	18 V	9 V		OCP OTP OVP Remote On/Off SCP UVLO	12 V	-12 V			1.67 A	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm
Traco Power TEN 40-1213E	40 W	Isolated Module	2.666 A	6-DIP Module	ITE (Commercial)	Through Hole	91 %	CB cURus	1.6 kV	1	85 °C	-40 C	18 V	9 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	Adjustable Output Remote On/Off	15 V
Traco Power TEN 40-2415E	40 W	Isolated Module	1.666 A	6-DIP Module	ITE (Commercial)	Through Hole	91 %	CB cURus	1.6 kV	1	85 °C	-40 C	36 V	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	Adjustable Output Remote On/Off	24 V
Traco Power TEN 40-1225E	40 W	Isolated Module		6-DIP Module	ITE (Commercial)	Through Hole	91 %	CB cURus	1.6 kV	2	85 °C	-40 C	18 V	9 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	Adjustable Output Remote On/Off	24 V	-24 V	833 mA	833 mA
Traco Power TEN 40-1210E	40 W	Isolated Module	12.2 A	6-DIP Module	ITE (Commercial)	Through Hole	89 %	CB cURus	1.6 kV	1	85 °C	-40 C	18 V	9 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	Adjustable Output Remote On/Off	3.3 V
Traco Power TEN 40-1211E	40 W	Isolated Module	8 A	6-DIP Module	ITE (Commercial)	Through Hole	90 %	CB cURus	1.6 kV	1	85 °C	-40 C	18 V	9 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	Adjustable Output Remote On/Off	5 V
Traco Power TEN 40-2423E	40 W	Isolated Module		6-DIP Module	ITE (Commercial)	Through Hole	91 %	CB cURus	1.6 kV	2	85 °C	-40 C	36 V	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	Adjustable Output Remote On/Off	15 V	-15 V	1.333 A	1.333 A
Traco Power TEN 40-4810WIE	40 W	Isolated Module	12.2 A	6-DIP Module	ITE (Commercial)	Through Hole	90 %	CB cURus	1.6 kV	1	85 °C	-40 C	75 V	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	Adjustable Output Remote On/Off	3.3 V
