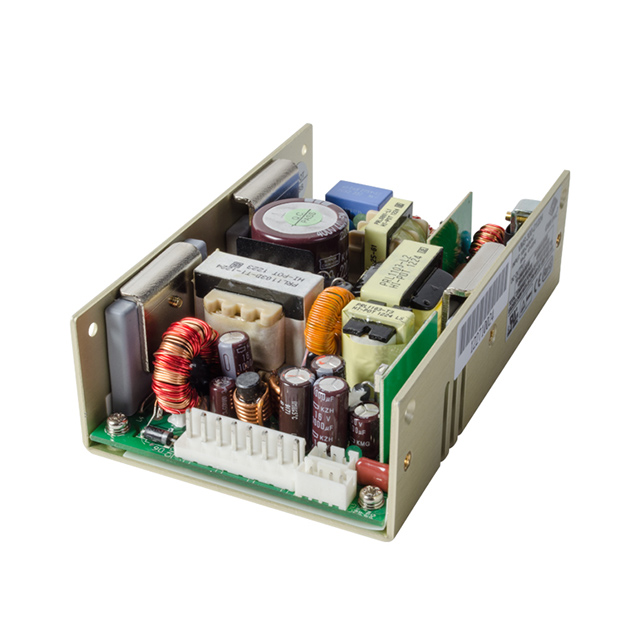

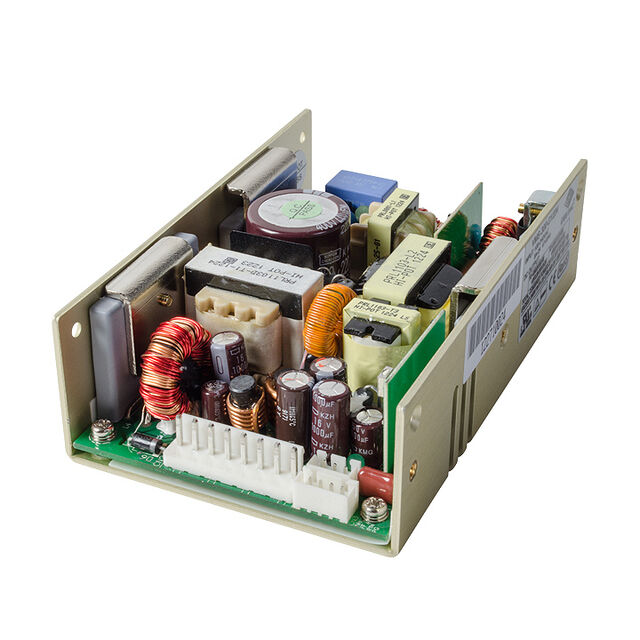

VMS-300 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 36V 300W

Part	Voltage - Isolation	Number of Outputs	Type	Power (Watts)	Mounting Type	Features	Voltage - Output 1 [custom]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Current - Output 1	Standard Number	Size / Dimension	Voltage - Output 1	Current - Output 2	Power (Watts)	Voltage - Output 2
CUI Inc. VMS-300-36-CF	4000 V	1	Enclosed	300 W	Chassis Mount	Adjustable Output PFC Remote On/Off Standby Output Universal Input	36 V	84 %	264 VAC	90 VAC	70 °C	0 °C	Medical	CB Scheme CSA EN IEC TUV	5 "	50.8 mm	127 mm	2 in	81.3 mm	3.2 "	8.33 A	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1

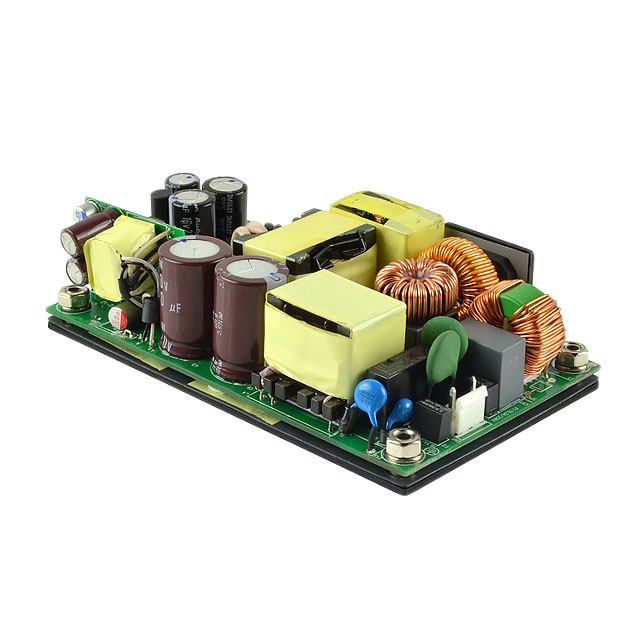

CUI Inc. VMS-300A-12-1	4000 V	1	Open Frame	200 Watts 300 W	Chassis Mount	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input		92.5 %	264 VAC	90 VAC	80 ¯C	-40 °C	Medical	CB Scheme EN IEC TUV UL	5 "			1.38 in		3 "	16.67 A	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	35.1 mm 76.2 mm 127 mm	12 V
CUI Inc. VMS-300-48-CF	4000 V	1	Enclosed	300 W	Chassis Mount	Adjustable Output PFC Remote On/Off Standby Output Universal Input		84 %	264 VAC	90 VAC	70 °C	0 °C	Medical	CB Scheme CSA EN IEC TUV	5 "	50.8 mm	127 mm	2 in	81.3 mm	3.2 "	6.25 A	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1		48 V
CUI Inc. VMS-300-D1224	4000 V	2	Open Frame	120 W	Chassis Mount	Adjustable Output PFC Remote On/Off Standby Output Universal Input		85 %	264 VAC	90 VAC	70 °C	0 °C	Medical	CB Scheme CSA EN IEC TUV	5 "	38.1 mm	127 mm	1.5 in	81.3 mm	3.2 "	10 A	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1		12 V	5 A	240 W	24 V

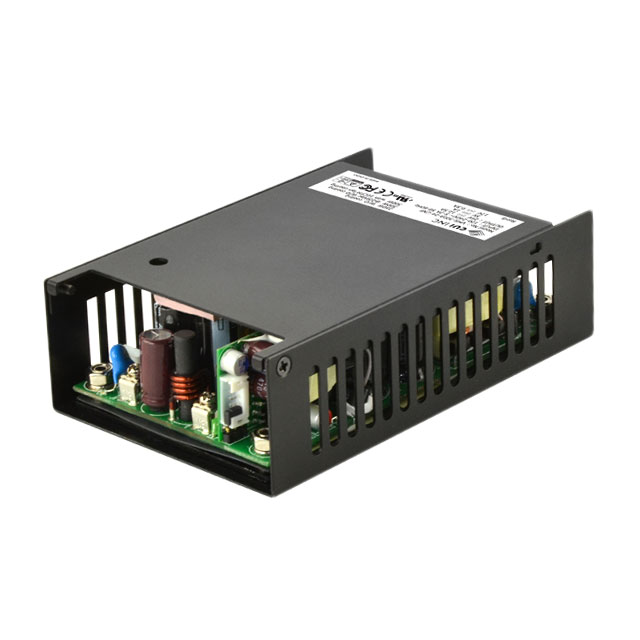

CUI Inc. VMS-300A-12-CNF-1	4000 V	1	Enclosed	200 Watts 300 W	Chassis Mount	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input		92.5 %	264 VAC	90 VAC	80 ¯C	-40 °C	Medical	CB Scheme EN IEC TUV UL	5.35 in	40.4 mm	136 mm	1.59 in	88 mm	3.46 in	16.67 A	55011 Class B; 60601-1; 61000-3-2; 61000-3-3		12 V
CUI Inc. VMS-300A-12	4000 V	1	Open Frame	200 Watts 300 W	Chassis Mount	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input		92.5 %	264 VAC	90 VAC	80 ¯C	-40 °C	Medical	CB Scheme EN IEC TUV UL	5 "			1.38 in		3 "	16.67 A	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	35.1 mm 76.2 mm 127 mm	12 V
CUI Inc. VMS-300A-24-CNF	4000 V	1	Enclosed	200 Watts 300 W	Chassis Mount	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input		93.5 %	264 VAC	90 VAC	80 ¯C	-40 °C	Medical	CB Scheme EN IEC TUV UL	5.35 in	40.4 mm	136 mm	1.59 in	88 mm	3.46 in	8.33 A	55011 Class B; 60601-1; 61000-3-2; 61000-3-3		24 V
CUI Inc. VMS-300-D1224-CFS	4000 V	2	Enclosed	120 W	Chassis Mount	Adjustable Output PFC Remote On/Off Standby Output Universal Input		85 %	264 VAC	90 VAC	70 °C	0 °C	Medical	CB Scheme CSA EN IEC TUV	6.5 in	40.6 mm	165.1 mm	1.6 "	81.3 mm	3.2 "	10 A	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1		12 V	5 A	240 W	24 V
CUI Inc. VMS-300-D1224-CF	4000 V	2	Enclosed	120 W	Chassis Mount	Adjustable Output PFC Remote On/Off Standby Output Universal Input		85 %	264 VAC	90 VAC	70 °C	0 °C	Medical	CB Scheme CSA EN IEC TUV	5 "	50.8 mm	127 mm	2 in	81.3 mm	3.2 "	10 A	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1		12 V	5 A	240 W	24 V
CUI Inc. VMS-300-12-CF	4000 V	1	Enclosed	300 W	Chassis Mount	Adjustable Output PFC Remote On/Off Standby Output Universal Input			264 VAC	90 VAC	70 °C	0 °C	Medical	CB Scheme CSA EN IEC TUV	5 "	50.8 mm	127 mm	2 in	81.3 mm	3.2 "	25 A	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1		12 V
