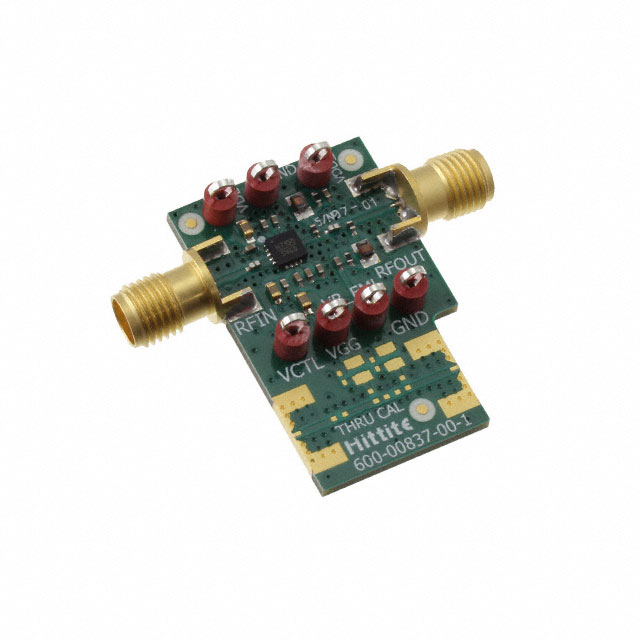

28 Gbps EML Driver
Key Features
• Operation up to 28.3 Gbps
• Low DC Power Dissipation, 0.12W for 1.5VP-Pswing @ 3.3V supply 0.50W for 2.3Vpp swing @ 6V supply
• Adjustable Output Amplitude from 1.2VP-Pto 2.3VP-P
• 16 Lead 3x3mm SMT Package: <9 mm2
Description
AI
The HMC7150 is a broadband driver amplifier for electro-absorption modulated lasers (EML) and supports data-rates up to 28.3Gbps to meet the 100Gb Ethernet system requirements. The part provides the module designers scalable power dissipation for varying drive voltage characteristics of different modulators and the power consumption of the module can be set as low as 0.12W to 0.5W at 1.5VP-Pand 2.3VP-Poutputs amplitudes, respectively. The HMC7150 supports wide range of supply voltages from 3.3V to 6V and delivering excellent time domain performance. The output amplitude and cross-point can be adjusted via control pins. The input and output are 50 Ohms matched and used AC coupled. The HMC7150 is in compact leadless 3x3mm surface mountable package.APPLICATIONS100Gb Ethernet ER4/ LR4 systemsCFP/CFP2/CFP4 or similar form factor modulesOptical transceivers and pluggable modulesBroadband gain stages and pre-amplifiersBroadband Test & Measurement Equipment
