SIZF640 Series

Catalog

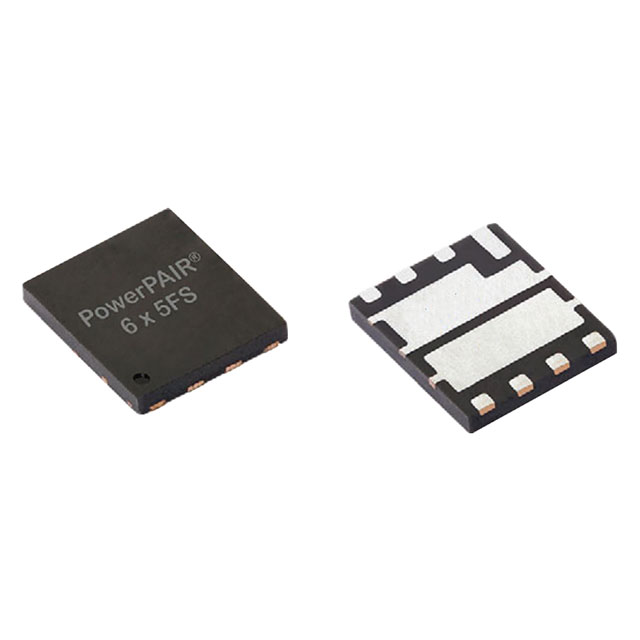

MOSFET 2N-CH 40V 41A PWRPAIR

Part	Package / Case	Power - Max	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs [Max]	Supplier Device Package	Technology	Rds On (Max) @ Id, Vgs	Configuration
Vishay General Semiconductor - Diodes Division SIZF640DT-T1-GE3	8-PowerDFN	4.2 W 62.5 W	5750 pF	-55 °C	150 °C	41 A 159 A	Surface Mount	40 V	2.4 V	106 nC	PowerPAIR® 6x5FS	MOSFET (Metal Oxide)	1.37 mOhm	2 N-Channel (Dual)
