E2034S Series

Catalog

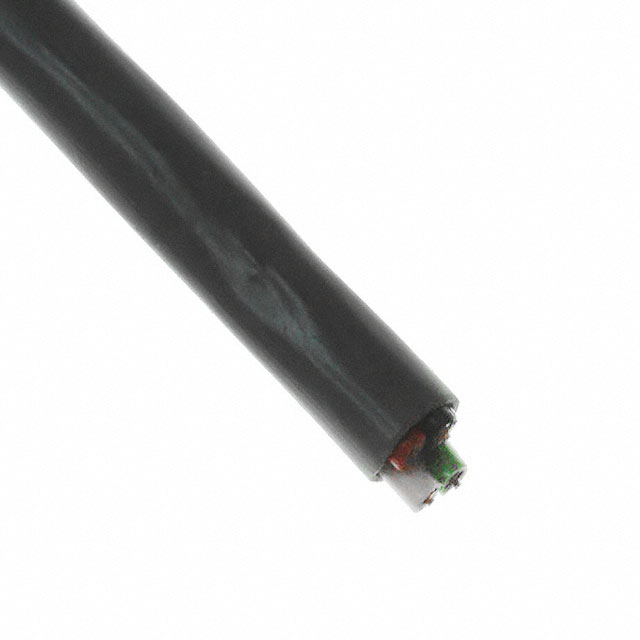

CABLE 4COND 18AWG GRAY SHLD

Part	Length	Length	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Usage	Voltage	Jacket (Insulation) Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Material	Conductor Insulation	Wire Gauge	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Cable Type	Shield Coverage	Shield Material	Length [x]	Length [x]
Prysmian Group E2034S.18.10	152.4 m	500 ft	0.381 mm	0.015 in	Alarm Security Sound	300 VDC	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	4.67 mm	0.184 in	Foil	Copper Bare	Poly-Vinyl Chloride (PVC)	18 AWG	Gray	26 AWG	7	4	Multi-Conductor
Prysmian Group E2034S.25.10	152.4 m	500 ft	0.381 mm	0.015 in	Alarm Security Sound	300 VDC	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	4.67 mm	0.184 in	Foil	Copper Bare	Poly-Vinyl Chloride (PVC)	18 AWG	Gray	26 AWG	7	4	Multi-Conductor
Prysmian Group E2034S.30.10	304.8 m	1000 ft	0.381 mm	0.015 in	Alarm Security Sound	300 VDC	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	4.67 mm	0.184 in	Foil	Copper Bare	Poly-Vinyl Chloride (PVC)	18 AWG	Gray	26 AWG	7	4	Multi-Conductor
Prysmian Group E2034S.18.10	152.4 m	500 ft	0.381 mm	0.015 in	Alarm Security Sound	300 VDC	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	4.67 mm	0.184 in	Foil	Copper Bare	Poly-Vinyl Chloride (PVC)	18 AWG	Gray	26 AWG	7	4	Multi-Conductor	100 %	Flexfoil®
Prysmian Group E2034S.41.10	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	0.381 mm	0.015 in	Alarm Security Sound	300 VDC	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	4.67 mm	0.184 in	Foil	Copper Bare	Poly-Vinyl Chloride (PVC)	18 AWG	Gray	26 AWG	7	4	Multi-Conductor			100 ft	30.5 m
Prysmian Group E2034S.46.10			0.381 mm	0.015 in		300 VDC	Poly-Vinyl Chloride (PVC) Riser	Drain Wire Rip Cord	4.67 mm	0.184 in	Foil	Copper Bare	Poly-Vinyl Chloride (PVC)	18 AWG	Gray	26 AWG	7	4	Multi-Conductor
Prysmian Group E2034S.46.10			0.381 mm	0.015 in		300 VDC	Poly-Vinyl Chloride (PVC) Riser	Drain Wire Rip Cord	4.67 mm	0.184 in	Foil	Copper Bare	Poly-Vinyl Chloride (PVC)	18 AWG	Gray	26 AWG	7	4	Multi-Conductor	100 %	Flexfoil®
Prysmian Group E2034S.25.10	152.4 m	500 ft	0.381 mm	0.015 in	Alarm Security Sound	300 VDC	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	4.67 mm	0.184 in	Foil	Copper Bare	Poly-Vinyl Chloride (PVC)	18 AWG	Gray	26 AWG	7	4	Multi-Conductor	100 %	Flexfoil®
Prysmian Group E2034S.30.10	15.24 m 304.8 m	50 ft 1000 ft	0.381 mm	0.015 in	Alarm Security Sound	300 VDC	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	4.67 mm	0.184 in	Foil	Copper Bare	Poly-Vinyl Chloride (PVC)	18 AWG	Gray	26 AWG	7	4	Multi-Conductor	100 %	Flexfoil®	100 ft	30.5 m
Prysmian Group E2034S.41.10	304.8 m	1000 ft	0.381 mm	0.015 in	Alarm Security Sound	300 VDC	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	4.67 mm	0.184 in	Foil	Copper Bare	Poly-Vinyl Chloride (PVC)	18 AWG	Gray	26 AWG	7	4	Multi-Conductor	100 %	Flexfoil®
