BXRE-25 Series
Manufacturer: BRIDGELUX
Beta
⌘K

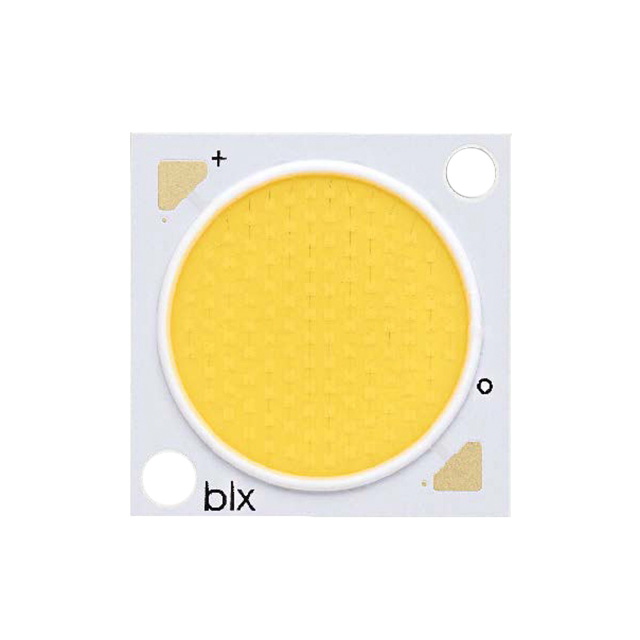

LED COB V18 WARM WHT SQU 2500K
| Part | Luminous Flux @ Current/Temperature | Lens Type | Color | Current - Test | Viewing Angle | Height [z] | Current - Max [Max] | Voltage - Forward (Vf) (Typ) | Size / Dimension [x] | Size / Dimension [y] | Lumens/Watt @ Current - Test | Type | CCT (K) | CCT (K) | Configuration | CRI (Color Rendering Index) | Temperature - Test | Light Emitting Surface (LES) [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | 3900 lm | Flat | Warm White | 900 mA | 120 ° | 1.7 mm | 1.8 A | 34 V | 24 mm | 24 mm | 127 lm/W | Chip On Board (COB) | 2500 K | 4-Step MacAdam Ellipse | Square | 80 | 85 °C | 19.2 mm |
 BRIDGELUX | 2821 lm 3037 lm | Flat | Warm White | 630 mA | 120 ° | 1.7 mm | 1.26 A | 33.9 V 34.8 V | 19 mm | 19 mm | 132 lm/W 139 lm/W | Chip On Board (COB) | 2500 K | 4-Step MacAdam Ellipse | Square | 80 | 25 °C 85 °C | 14 mm |
 BRIDGELUX | 6140 lm 6314 lm | Flat | Warm White | 120 ° | 1.7 mm | 2.8 A | 33.4 V | 28 mm | 28 mm | 131 lm/W 135 lm/W | Chip On Board (COB) | 2500 K | 4-Step MacAdam Ellipse | Square | 80 | 85 °C | 22.6 mm |
