AM1DS Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 12V 1W

Part	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Package / Case	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Approval Agency	Applications	Type	Mounting Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Supplier Device Package	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]
aimtec AM1DS-1212S-NZ	13.2 V	84 mA	12 V	7-SIP Module	1.5 kV	0.37 in	9.4 mm	0.77 in	6 mm	0.24 "	19.5 mm	10.8 V	cULus cURus	ITE (Commercial)	Isolated Module	Through Hole	80 %	-40 C	105 ░C	1
aimtec AM1DS-0515DH60Z	5.5 V			7-SIP Module	6000 VDC	0.39 "	10 mm	0.76 "	6 mm	0.24 "	19.5 mm	4.5 V		ITE (Commercial)	Isolated Module	Through Hole	71 %	-40 C	85 °C	2	33.33 mA	33.33 mA	-15 V	15 V	-15 V
aimtec AM1DS-1215DH52Z	13.2 V			7-SIP Module	5.2 kV	0.39 "	10 mm	0.77 in	6 mm	0.24 "	19.5 mm	10.8 V		ITE (Commercial)	Isolated Module	Through Hole	76 %	-40 C	85 °C	2	33.33 mA	33.33 mA	-15 V	15 V	-15 V
aimtec AM1DS-1212DH52Z	13.2 V			7-SIP Module	5.2 kV	0.39 "	10 mm	0.76 "	6 mm	0.24 "	19.5 mm	10.8 V		ITE (Commercial)	Isolated Module	Through Hole	76 %	-40 C	85 °C	2	41.67 mA		-12 V			-12 V	12 V

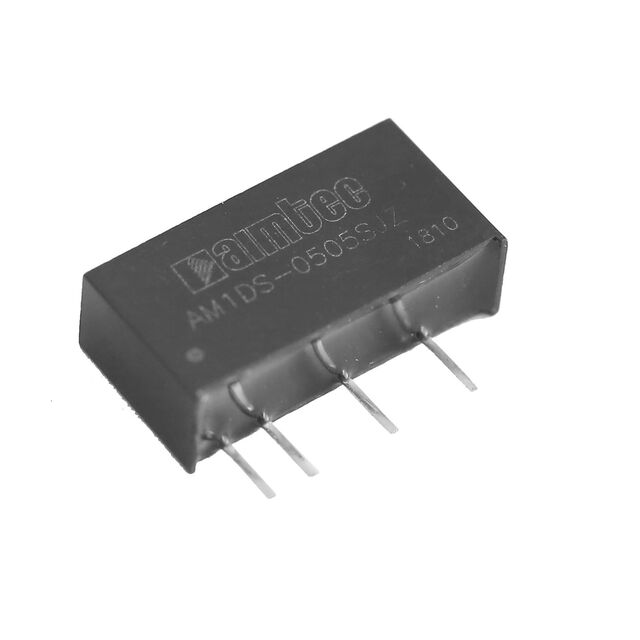

aimtec AM1DS-0505SJZ	5.5 V	200 mA	5 V	6 Leads 7-SIP Module	1.5 kV	0.38 in	9.7 mm	0.77 in	6 mm	0.24 "	19.7 mm	4.5 V		ITE (Commercial)	Isolated Module	Through Hole		-40 °C	105 C	1								7-SIP
aimtec AM1DS-0515DH30JZ	5.5 V	34 mA		7-SIP Module	3000 V	0.4 "	10.2 mm	0.77 in	6 mm	0.24 "	19.7 mm	4.5 V	cULus cURus	ITE (Commercial)	Isolated Module	Through Hole	83 %	-40 C	105 ░C	2			-15 V	15 V	-15 V				34 mA
aimtec AM1DS-0512SZ	5.5 V	83.3 mA	12 V	7-SIP Module	1000 V	0.39 "	10 mm	0.76 "	6 mm	0.24 "	19.5 mm	4.5 V		ITE (Commercial)	Isolated Module	Through Hole	73 %	-40 C	85 °C	1
aimtec AM1DS-1205SH30-NZ	13.2 V	200 mA	5 V	6 Leads 7-SIP Module	3000 V	0.37 in		0.77 in		0.24 "	19.5 mm	10.8 V		ITE (Commercial)	Isolated Module	Through Hole	80 %	-40 °C	105 C	1								7-SIP		6 mm	9.3 mm
aimtec AM1DS-1215SZ	13.2 V	66.7 mA	15 V	7-SIP Module	1000 V	0.39 "	10 mm	0.77 in	6 mm	0.24 "	19.5 mm	10.8 V		ITE (Commercial)	Isolated Module	Through Hole	75 %	-40 C	85 °C	1
aimtec AM1DS-0305SH30-NZ	3.6 V	200 mA	5 V	7-SIP Module	3000 V	0.38 in	9.6 mm	0.77 in	6 mm	0.24 "	19.5 mm	3 V		ITE (Commercial)	Isolated Module	Through Hole	78 %	-40 C	105 ░C	1
