TPS61030 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC REG BOOST ADJ 3.6A 16QFN
| Part | Mounting Type | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Frequency - Switching | Synchronous Rectifier | Current - Output | Supplier Device Package | Topology | Voltage - Output (Min/Fixed) | Output Type | Number of Outputs | Voltage - Output (Max) [Max] | Package / Case | Output Configuration | Function | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [custom] | Package / Case [custom] | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Voltage - Output | Regulator Topology | Utilized IC / Part | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 1.8 V | 5.5 V | 600 kHz | 3.6 A | 16-QFN (4X4) | Boost | 1.8 V | Adjustable | 1 | 5.5 V | 16-VQFN Exposed Pad | Positive | Step-Up | 85 C | -40 ¯C | ||||||||||||||
Texas Instruments | Surface Mount | 1.8 V | 5.5 V | 600 kHz | 3.6 A | 16-HTSSOP | Boost | 1.8 V | Adjustable | 1 | 5.5 V | 16-PowerTSSOP | Positive | Step-Up | 85 C | -40 ¯C | 4.4 mm | 0.173 in | ||||||||||||

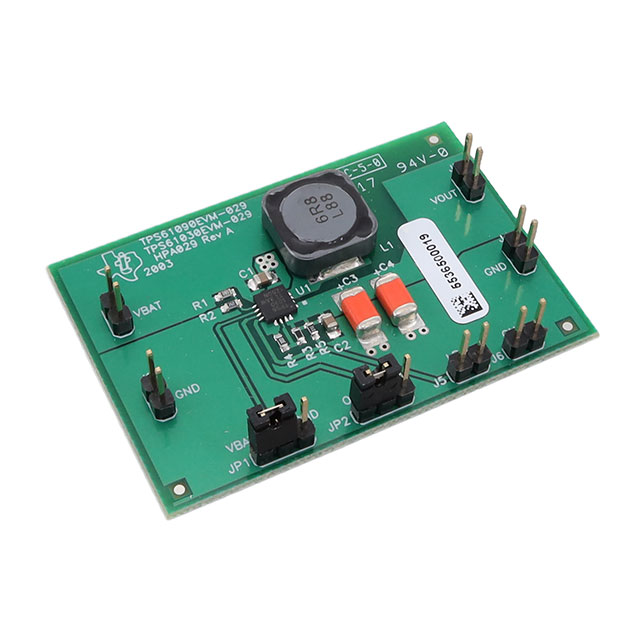

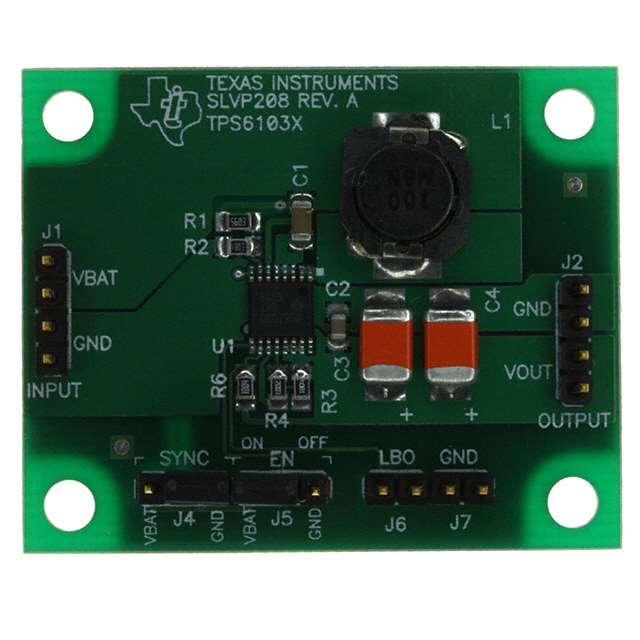

 Texas Instruments | 600 kHz | 1 A | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | 5 V | Boost | TPS61030 | DC/DC Step Up | 5 V | 1.8 V | Board(s) | |||||||||||||||||
 Texas Instruments | 600 kHz | 1 A | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | 5 V | Boost | TPS61030 | DC/DC Step Up | 5 V | 1.8 V | Board(s) | |||||||||||||||||
Texas Instruments | Surface Mount | 1.8 V | 5.5 V | 600 kHz | 3.6 A | 16-QFN (4X4) | Boost | 1.8 V | Adjustable | 1 | 5.5 V | 16-VQFN Exposed Pad | Positive | Step-Up | 85 C | -40 ¯C | ||||||||||||||
 Texas Instruments | Surface Mount | 1.8 V | 5.5 V | 600 kHz | 3.6 A | 16-HTSSOP | Boost | 1.8 V | Adjustable | 1 | 5.5 V | 16-PowerTSSOP | Positive | Step-Up | 85 C | -40 ¯C | 4.4 mm | 0.173 in | ||||||||||||
 Texas Instruments | Surface Mount | 1.8 V | 5.5 V | 600 kHz | 3.6 A | 16-HTSSOP | Boost | 1.8 V | Adjustable | 1 | 5.5 V | 16-PowerTSSOP | Positive | Step-Up | 85 C | -40 ¯C | 4.4 mm | 0.173 in | ||||||||||||
Texas Instruments | Surface Mount | 1.8 V | 5.5 V | 600 kHz | 3.6 A | 16-HTSSOP | Boost | 1.8 V | Adjustable | 1 | 5.5 V | 16-PowerTSSOP | Positive | Step-Up | 85 C | -40 ¯C | 4.4 mm | 0.173 in |
