HT Series

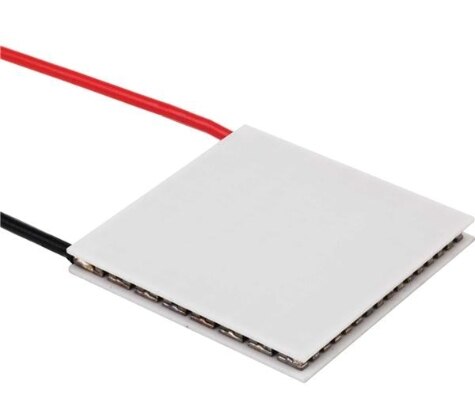

Thermoelectric Peltier Modules HT4,12,F2,3030,TA,RT W6, 30x34x3.2mm
Manufacturer: Tark Thermal Solutions
Catalog
Thermoelectric Peltier Modules HT4,12,F2,3030,TA,RT W6, 30x34x3.2mm
Beta
⌘K
Thermoelectric Peltier Modules HT4,12,F2,3030,TA,RT W6, 30x34x3.2mm
Thermoelectric Peltier Modules HT4,12,F2,3030,TA,RT W6, 30x34x3.2mm
Thermoelectric Peltier Modules HT4,12,F2,3030,TA,RT W6, 30x34x3.2mm
| Part | Size / Dimension [x] | Size / Dimension [y] | Current - Max [Max] | Number of Stages | Voltage - Max [Max] | Features | Type | Delta Tmax @ Th | Height [z] | Qmax @ Th | Operating Temperature | Resistance | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tark Thermal Solutions | 34 mm | 30 mm | 4 A | 1 | 14.5 V | Lead Wires Sealed - Silicone RTV | TEC (Thermoelectric Cooler) | 63 °C | 3.2 mm | 34.3 W | 175 °C | 3.36 Ohms | |
 Tark Thermal Solutions | 43.9 mm | 39.9 mm | 6 A | 1 | 14.5 V | Lead Wires Sealed - Silicone RTV | TEC (Thermoelectric Cooler) | 63 °C | 3.63 mm | 51.6 W | 175 °C | 2.23 Ohms | |
 Tark Thermal Solutions | 30 mm | 30 mm | 3.8 A | 1 | 8.1 V | Lead Wires Non-Sealed | TEC (Thermoelectric Cooler) | 64 °C | 4.09 mm | 18.4 W | 175 °C | 1.95 Ohms | |
Tark Thermal Solutions | 28.7 mm | 1 " | 9.6 A | 1 | 3.6 V | Lead Wires Sealed - Silicone RTV | TEC (Thermoelectric Cooler) | 63 °C | 5 mm | 20.1 W | 175 °C | 340 mOhms | Rectangular |
Tark Thermal Solutions | 34 mm | 30 mm | 2.9 A | 1 | 14.5 V | Lead Wires Sealed - Silicone RTV | TEC (Thermoelectric Cooler) | 63 °C | 3.2 mm | 24.7 W | 175 °C | 4.65 Ohms | |
Tark Thermal Solutions | 43.2 mm | 20.6 mm | 3.8 A | 1 | 7.2 V | Lead Wires Sealed - Silicone RTV | TEC (Thermoelectric Cooler) | 64 °C | 3.81 mm | 16.4 W | 175 °C | 1.73 Ohms |
