HIF3HA Series

Catalog

CONN RCPT 34POS 0.1 GOLD PCB

Part	Applications	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions [custom]	Voltage Rating	Insulation Color	Insulation Height [z]	Insulation Height [z]	Features	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Mounting Type	Connector Type	Contact Type	Material Flammability Rating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Style	Number of Positions

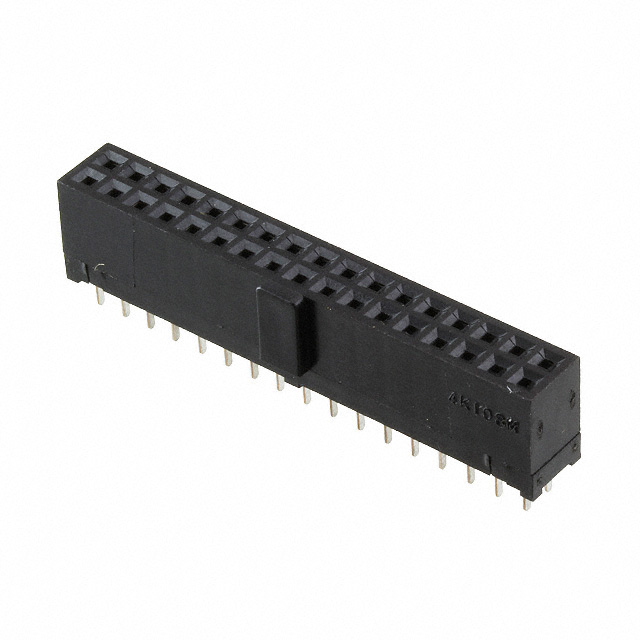

Hirose Electric Co Ltd HIF3HA-34DA-2.54DSA(71)	General Purpose	Square	39.4 çin	1 çm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	34	300 VAC	Black	9.5 mm	0.374 in	Polarizing Key	0.118 in	3 mm	2	Gold	All	8 µin	0.203 µm	Solder	0.1 in	2.54 mm	3 A	Through Hole	Receptacle	Female Socket	UL94 V-0	Tin	-55 C	85 °C
Hirose Electric Co Ltd HIF3HA-64DA-2.54DSA(61)		Square	39.4 çin	1 çm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm		300 VAC	Black	9.5 mm	0.374 in		0.118 in	3 mm	2	Gold	All	8 µin	0.203 µm	Solder	0.1 in	2.54 mm	3 A	Through Hole	Receptacle	Female Socket	UL94 V-0	Tin	-55 C	85 °C	Push-Pull	Board to Cable/Wire	64
Hirose Electric Co Ltd HIF3HA-60DA-2.54DSA(61)		Square	39.4 çin	1 çm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm		300 VAC	Black	9.5 mm	0.374 in		0.118 in	3 mm	2	Gold	All	8 µin	0.203 µm	Solder	0.1 in	2.54 mm	3 A	Through Hole	Receptacle	Female Socket	UL94 V-0	Tin	-55 C	85 °C	Push-Pull	Board to Cable/Wire	60
Hirose Electric Co Ltd HIF3HA-30DA-2.54DSA(61)		Square	39.4 çin	1 çm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm		300 VAC	Black	9.5 mm	0.374 in		0.118 in	3 mm	2	Gold	All	8 µin	0.203 µm	Solder	0.1 in	2.54 mm	3 A	Through Hole	Receptacle	Female Socket	UL94 V-0	Tin	-55 C	85 °C	Push-Pull	Board to Cable/Wire	30

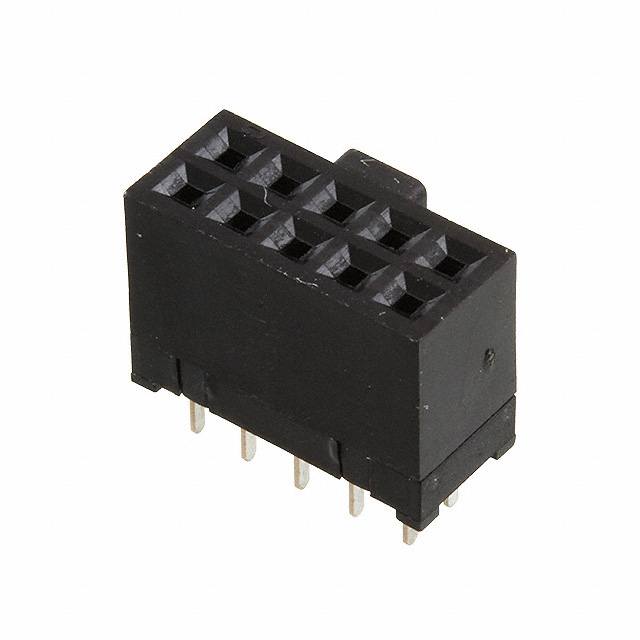

Hirose Electric Co Ltd HIF3HA-10DA-2.54DSA(71)	General Purpose	Square	39.4 çin	1 çm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm		300 VAC	Black	9.5 mm	0.374 in	Polarizing Key	0.118 in	3 mm	2	Gold	All	8 µin	0.203 µm	Solder	0.1 in	2.54 mm	3 A	Through Hole	Receptacle	Female Socket	UL94 V-0	Tin	-55 C	85 °C			10
Hirose Electric Co Ltd HIF3HA-50DA-2.54DSA(61)		Square	39.4 çin	1 çm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm		300 VAC	Black	9.5 mm	0.374 in		0.118 in	3 mm	2	Gold	All	8 µin	0.203 µm	Solder	0.1 in	2.54 mm	3 A	Through Hole	Receptacle	Female Socket	UL94 V-0	Tin	-55 C	85 °C	Push-Pull	Board to Cable/Wire	50
Hirose Electric Co Ltd HIF3HA-16DA-2.54DSA(61)		Square	39.4 çin	1 çm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm		300 VAC	Black	9.5 mm	0.374 in		0.118 in	3 mm	2	Gold	All	8 µin	0.203 µm	Solder	0.1 in	2.54 mm	3 A	Through Hole	Receptacle	Female Socket	UL94 V-0	Tin	-55 C	85 °C	Push-Pull	Board to Cable/Wire	16
Hirose Electric Co Ltd HIF3HA-60DA-2.54DSA(71)	General Purpose	Square	39.4 çin	1 çm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm		300 VAC	Black	9.5 mm	0.374 in	Polarizing Key	0.118 in	3 mm	2	Gold	All	8 µin	0.203 µm	Solder	0.1 in	2.54 mm	3 A	Through Hole	Receptacle	Female Socket	UL94 V-0	Tin	-55 C	85 °C			60

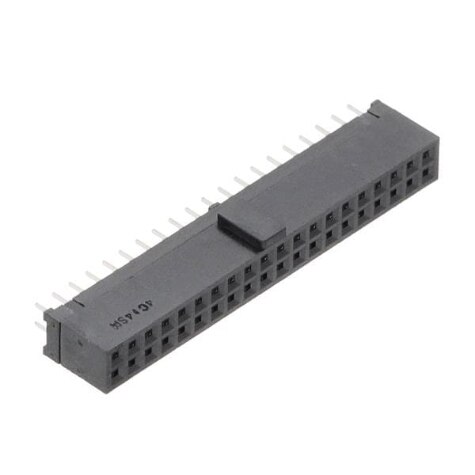

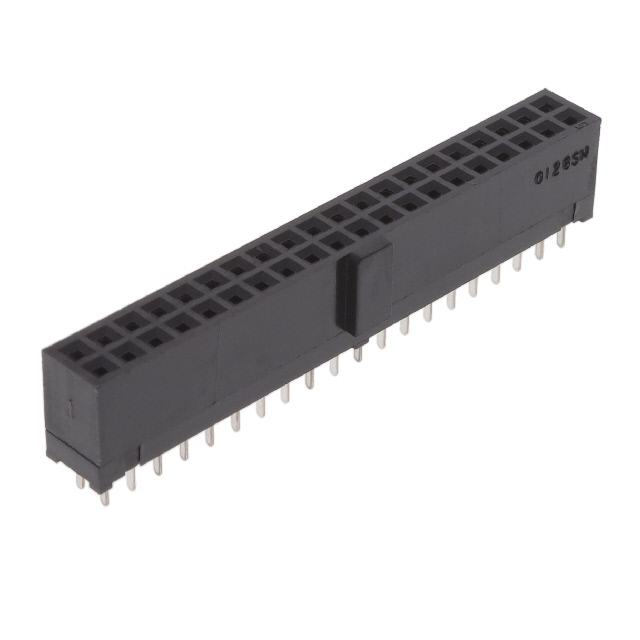

Hirose Electric Co Ltd HIF3HA-40DA-2.54DSA(61)		Square	39.4 çin	1 çm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm		300 VAC	Black	9.5 mm	0.374 in		0.118 in	3 mm	2	Gold	All	8 µin	0.203 µm	Solder	0.1 in	2.54 mm	3 A	Through Hole	Receptacle	Female Socket	UL94 V-0	Tin	-55 C	85 °C	Push-Pull	Board to Cable/Wire	40
Hirose Electric Co Ltd HIF3HA-30DA-2.54DSA(71)	General Purpose	Square	39.4 çin	1 çm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm		300 VAC	Black	9.5 mm	0.374 in	Polarizing Key	0.118 in	3 mm	2	Gold	All	8 µin	0.203 µm	Solder	0.1 in	2.54 mm	3 A	Through Hole	Receptacle	Female Socket	UL94 V-0	Tin	-55 C	85 °C			30
