MAX5318 Series

Catalog

18-BIT, HIGH-ACCURACY VOLTAGE OUTPUT DAC WITH DIGITAL GAIN, OFFSET CONTROL, AND SPI INTERFACE

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Reference Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog	Supplier Device Package	Package / Case [x]	Package / Case [x]	Package / Case	INL/DNL (LSB)	Data Interface	Settling Time	Number of D/A Converters	Supplied Contents	Contents	Number of DAC's	Utilized IC / Part	DAC Type	Platform	Type	Function

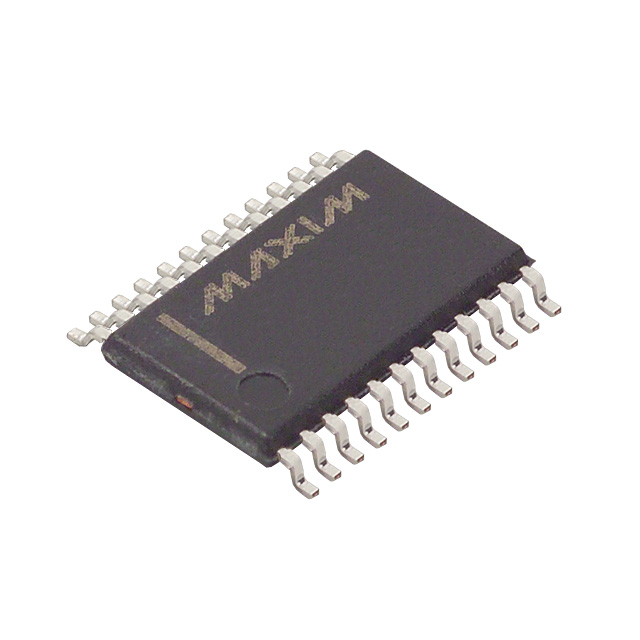

Analog Devices Inc./Maxim Integrated MAX5318GUG+	Surface Mount	-40 C	105 ░C	Voltage - Buffered	External	2.7 V	3.3 V	-1.25 V 5 V	24-TSSOP	4.4 mm	0.173 in	24-TSSOP	0.3 LSB 0.75 LSB	SPI	3 µs	1

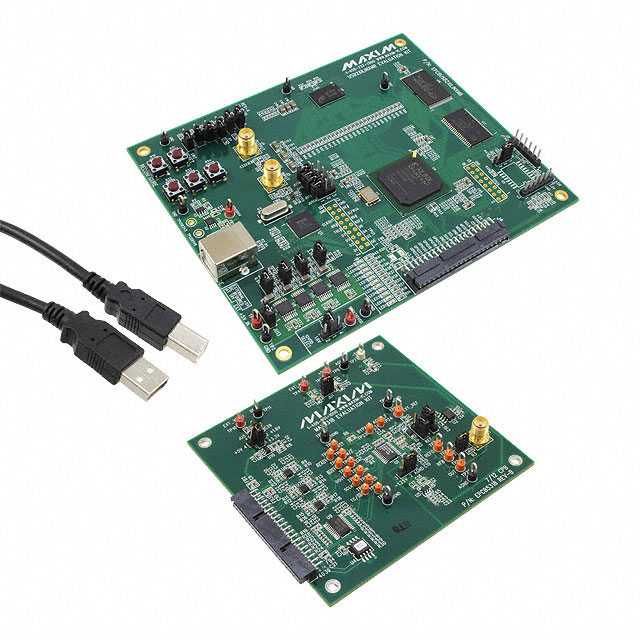

Analog Devices Inc./Maxim Integrated MAX5318EVSYS#														SPI	3 µs		Board(s) Cable(s)	Board Cable	1	MAX5318	Voltage

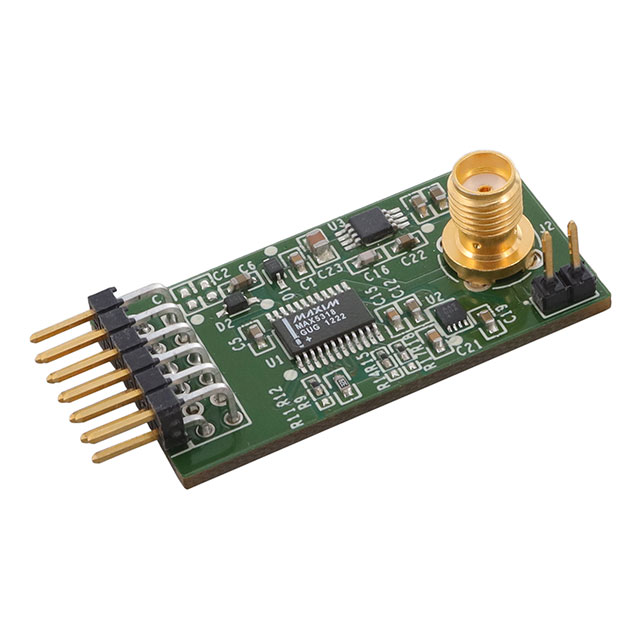

Analog Devices Inc./Maxim Integrated MAX5318PMB#																		Board(s)		MAX5318		Pmod™	Data Acquisition	Digital to Analog Converter (DAC)
Analog Devices Inc./Maxim Integrated MAX5318GUG+T	Surface Mount	-40 C	105 ░C	Voltage - Buffered	External	2.7 V	3.3 V	-1.25 V 5 V	24-TSSOP	4.4 mm	0.173 in	24-TSSOP	0.3 LSB 0.75 LSB	SPI	3 µs	1
