08025SA Series

Catalog

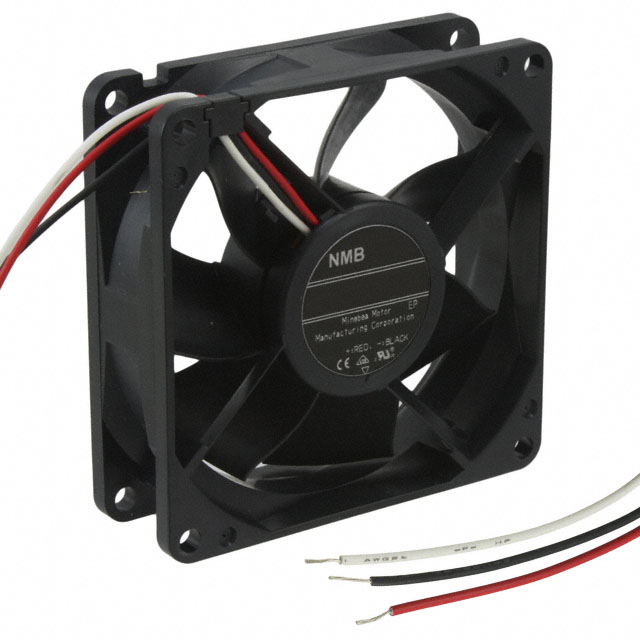

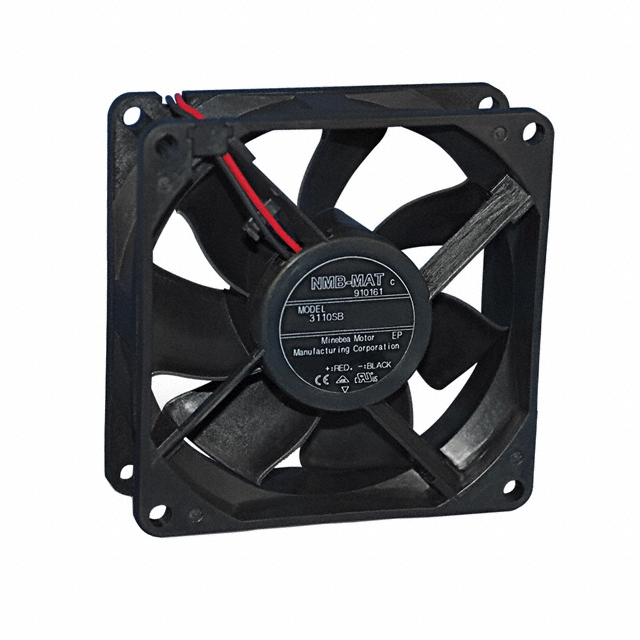

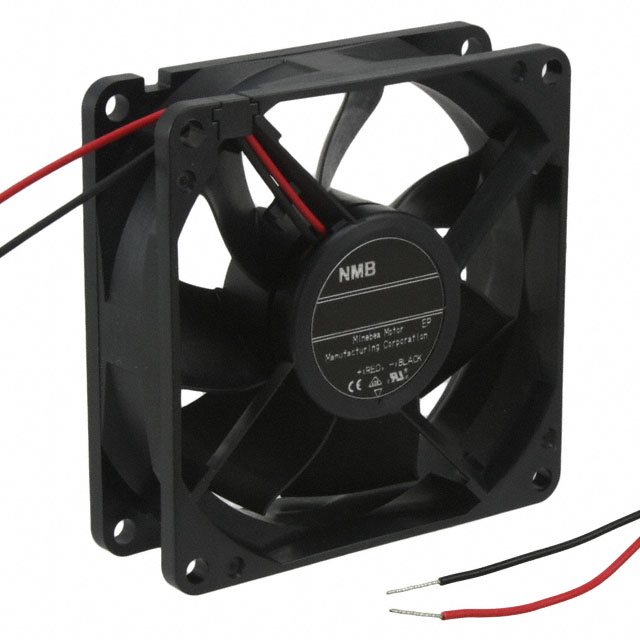

FAN AXIAL 80X25MM 24VDC WIRE

Part	Material - Blade	Material - Frame	Lifetime @ Temp.	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]	Fan Type	Approval Agency	Voltage - Rated	Termination	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Air Flow	Air Flow	RPM	Noise	Static Pressure	Static Pressure	Features	Power (Watts)
NMB TECHNOLOGIES 08025SA-24Q-EA-00	Plastic	Plastic	40000 Hrs	25 mm	80 mm	80 mm	70 °C	-10 °C	79.83 g	0.176 lb	Tubeaxial	CE CSA UL VDE	24 VDC	2 Wire Leads	Ball
NMB TECHNOLOGIES 08025SA-24R-EA-00	Plastic	Plastic	40000 Hrs	25 mm	80 mm	80 mm	70 °C	-10 °C	79.83 g	0.176 lb	Tubeaxial	CE CSA UL VDE	24 VDC	2 Wire Leads	Ball	26.4 VDC	12 VDC	0.17 A	60 CFM	1.68 m³/min	4500 RPM	42 dB	0.33 in H2O	82.2 Pa
NMB TECHNOLOGIES 08025SA-24P-EA-00	Plastic	Plastic	40000 Hrs	25 mm	80 mm	80 mm	70 °C	-10 °C	79.83 g	0.176 lb	Tubeaxial	CE CSA UL VDE	24 VDC	2 Wire Leads	Ball
NMB TECHNOLOGIES 08025SA-12P-EL-00	Plastic	Plastic	40000 Hrs	25 mm	80 mm	80 mm	70 °C	-10 °C	79.83 g	0.176 lb	Tubeaxial	CE CSA UL VDE	12 VDC	3 Wire Leads	Ball										Locked Rotor Sensor
NMB TECHNOLOGIES 08025SA-12P-AA-00	Plastic	Plastic	40000 Hrs	25 mm	80 mm	80 mm	70 °C	-10 °C	79.83 g	0.176 lb	Tubeaxial	CE CSA UL VDE	12 VDC	2 Wire Leads	Ball
NMB TECHNOLOGIES 08025SA-12M-AL-D0	Plastic	Plastic	40000 Hrs	25 mm	80 mm	80 mm	70 °C	-10 °C			Tubeaxial		12 VDC	3 Wire Leads	Ball	13.8 VDC	6 VDC	0.09 A	36 CFM	1.01 m³/min	2700 RPM	26 dB	0.12 in H2O	29.9 Pa	Auto Restart Locked Rotor Sensor	1.08 W
NMB TECHNOLOGIES 08025SA-12L-ET-D0	Plastic	Plastic	40000 Hrs	25 mm	80 mm	80 mm	70 °C	-10 °C			Tubeaxial		12 VDC	3 Wire Leads	Ball	13.8 VDC	6 VDC	60 mA	30.4 CFM	0.851 mł/min	2300 RPM	22 dB(A)	0.09 in H2O	22.4 Pa	Auto Restart Speed Sensor (Tach)	720 mW
NMB TECHNOLOGIES 08025SA-12M-AT-D0	Plastic	Plastic	100000 Hrs	25 mm	80 mm	80 mm	70 °C	-10 °C	79.83 g	0.176 lb	Tubeaxial	CE CSA UL VDE	12 VDC	3 Wire Leads	Ball	13.8 VDC	6 VDC	0.09 A	36 CFM	1.01 m³/min	2700 RPM	26 dB	0.116 in H2O	29 Pa	Speed Sensor (Tach)	1.08 W
NMB TECHNOLOGIES 08025SA-12P-EA-D0				25 mm	80 mm	80 mm	70 °C	-10 °C			Tubeaxial		12 VDC	2 Wire Leads	Ball				47 CFM	1.32 m³/min	3500 RPM	34 dB(A)	0.201 in H2O	50.1 Pa	Auto Restart	2.88 W
NMB TECHNOLOGIES 08025SA-12R-AL-00	Plastic	Plastic	40000 Hrs	25 mm	80 mm	80 mm	70 °C	-10 °C	79.83 g	0.176 lb	Tubeaxial	CE CSA UL VDE	12 VDC	3 Wire Leads	Ball	13.8 VDC	7 V	320 mA	60 CFM	1.68 m³/min	4500 RPM	42 dB	0.33 in H2O	82.2 Pa	Locked Rotor Sensor	3.84 W
