LD49150 Series

Catalog

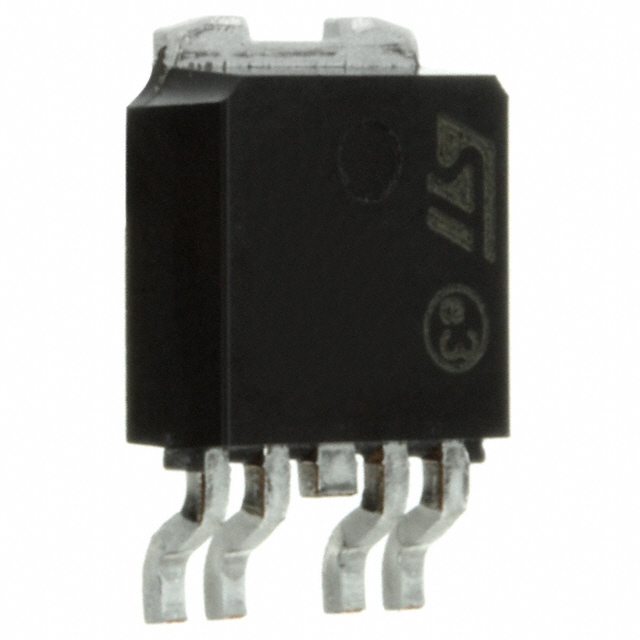

IC REG LINEAR POS ADJ 1.5A PPAK

Part	Package / Case	Protection Features	Supplier Device Package	Current - Quiescent (Iq)	Operating Temperature [Min]	Operating Temperature [Max]	PSRR	Voltage Dropout (Max) [Max]	Number of Regulators	Mounting Type	Current - Output	Voltage - Output (Min/Fixed)	Control Features	Current - Supply (Max) [Max]	Output Type	Voltage - Input (Max) [Max]	Output Configuration	Voltage - Output (Max) [Max]
STMicroelectronics LD49150PT08R	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	Over Current Over Temperature	PPAK	4 mA	-25 °C	125 °C	68 dB	0.2 V	1	Surface Mount	1.5 A	0.8 V	Enable	6 mA	Adjustable	5.5 V	Positive	5.3 V
STMicroelectronics LD49150PT12R	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	Over Current Over Temperature	PPAK	4 mA	-25 °C	125 °C	68 dB	0.2 V	1	Surface Mount	1.5 A	1.2 V	Enable	6 mA		5.5 V	Positive
STMicroelectronics LD49150PT10R	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	Over Current Over Temperature	PPAK	4 mA	-25 °C	125 °C	68 dB	0.2 V	1	Surface Mount	1.5 A	1 V	Enable	6 mA		5.5 V	Positive
