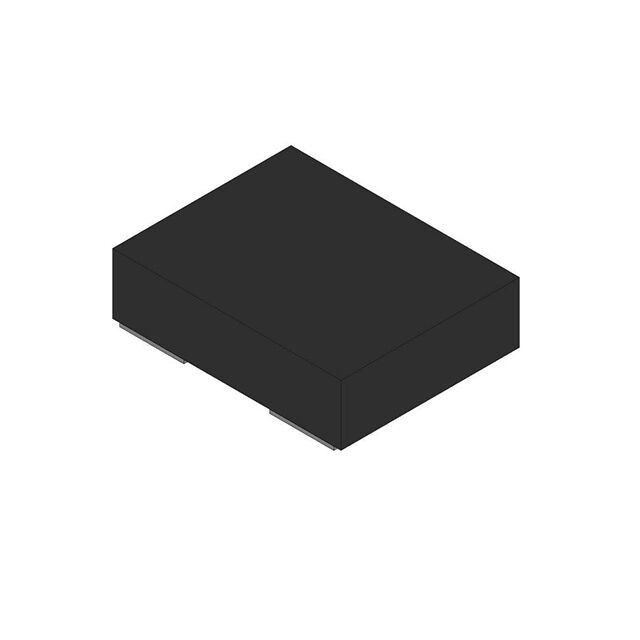

DSC1001 Series

Catalog

MEMS OSC, LVCMOS, 9.6MHZ, 10PPM, 1.8-3.3V, -40 TO 85C, 3.2 X 2.5MM 4 VDFN 3.2X2.5X0.9MM TUBE ROHS COMPLIANT: YES

...

Part	Current - Supply (Disable) (Max) [Max]	Current - Supply (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output	Function	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Base Resonator	Frequency Stability	Mounting Type	Frequency	Type	Package / Case
Microchip Technology DSC1001CI5-009.6000	15 µA	6.3 mA 8 mA	3.3 V 3.6 V	1.7 V 1.8 V	85 °C	-40 °C	CMOS	Enable/Disable Standby (Power Down)	0.035 "	0.9 mm	AEC-Q100	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	10 ppm	Surface Mount	9.6 MHz	XO (Standard)	4-VDFN
Microchip Technology DSC1001DL2-022.5792T	15 µA	6.3 mA	3.3 V	1.8 V	105 ░C	-40 °C	CMOS	Standby (Power Down)	0.035 "	0.9 mm	AEC-Q100	2.5 mm	2 mm	0.098 "	0.079 in	MEMS	25 ppm	Surface Mount	22.5792 MHz	XO (Standard)	4-VDFN
Microchip Technology DSC1001DI5-100.0000	15 µA	8.7 mA	3.3 V 3.6 V	1.7 V 1.8 V	85 °C	-40 °C	CMOS	Standby (Power Down)	0.035 "	0.9 mm	AEC-Q100	2.5 mm	2 mm	0.098 "	0.079 in	MEMS	10 ppm	Surface Mount	100 MHz	XO (Standard)	4-VDFN
Microchip Technology DSC1001AI1-024.0000	15 µA	6.3 mA	3.3 V	1.8 V	85 °C	-40 °C	CMOS	Standby (Power Down)	0.035 "	0.9 mm	AEC-Q100	7 mm	5 mm	0.276 "	0.197 "	MEMS	50 ppm	Surface Mount	24 MHz	XO (Standard)	4-VDFN Exposed Pad
Microchip Technology DSC1001CI1-025.0000	15 µA	6.3 mA 8 mA	3.3 V 3.6 V	1.7 V 1.8 V	85 °C	-40 °C	CMOS	Standby (Power Down)	0.035 "	0.9 mm	AEC-Q100	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	50 ppm	Surface Mount	25 MHz	XO (Standard)	4-VDFN
Microchip Technology DSC1001CL2-020.0000	15 µA	6.3 mA 8 mA	3.3 V 3.6 V	1.7 V 1.8 V	105 ░C	-40 °C	CMOS	Standby (Power Down)	0.035 "	0.9 mm	AEC-Q100	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	25 ppm	Surface Mount	20 MHz	XO (Standard)	4-VDFN
Microchip Technology DSC1001CE2-032.1100	15 µA	10.5 mA	3.3 V 3.6 V	1.7 V 1.8 V	70 °C	-20 C	CMOS	Standby (Power Down)	0.035 "	0.9 mm	AEC-Q100	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	25 ppm	Surface Mount	32.11 MHz	XO (Standard)	4-VDFN
Microchip Technology DSC1001DI1-006.1440	15 µA	6.3 mA	3.3 V	1.8 V	85 °C	-40 °C	CMOS	Standby (Power Down)	0.035 "	0.9 mm	AEC-Q100	2.5 mm	2 mm	0.098 "	0.079 in	MEMS	50 ppm	Surface Mount	6.144 MHz	XO (Standard)	4-VDFN
Microchip Technology DSC1001DL5-027.0000	15 µA	7.2 mA 8 mA	3.3 V 3.6 V	1.7 V 1.8 V	105 ░C	-40 °C	CMOS	Standby (Power Down)	0.035 "	0.9 mm	AEC-Q100	2.5 mm	2 mm	0.098 "	0.079 in	MEMS	10 ppm	Surface Mount	27 MHz	XO (Standard)	4-VDFN
Microchip Technology DSC1001DC5-012.8000	15 µA	6.3 mA 8 mA	3.3 V 3.6 V	1.7 V 1.8 V	70 °C	0 °C	CMOS	Enable/Disable Standby (Power Down)	0.035 "	0.9 mm	AEC-Q100	2.5 mm	2 mm	0.098 "	0.079 in	MEMS	10 ppm	Surface Mount	12.8 MHz	XO (Standard)	4-VDFN
