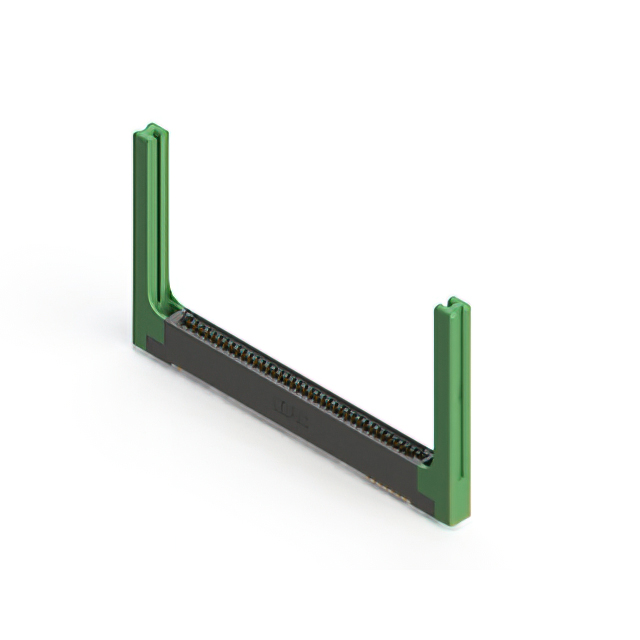

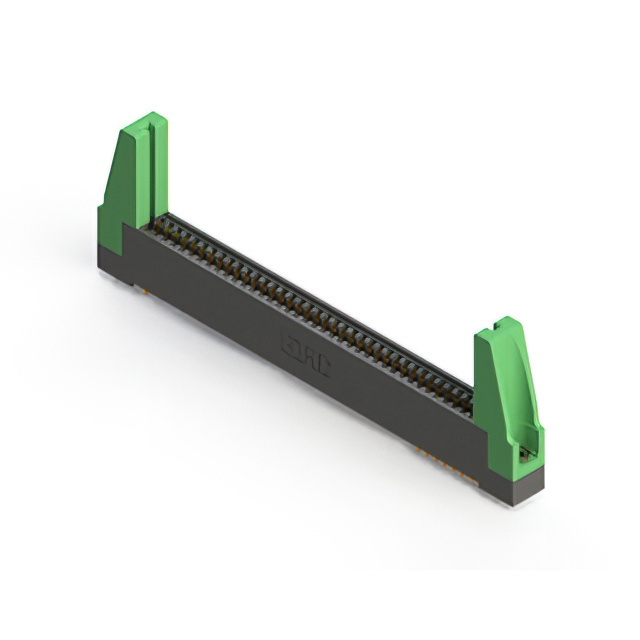

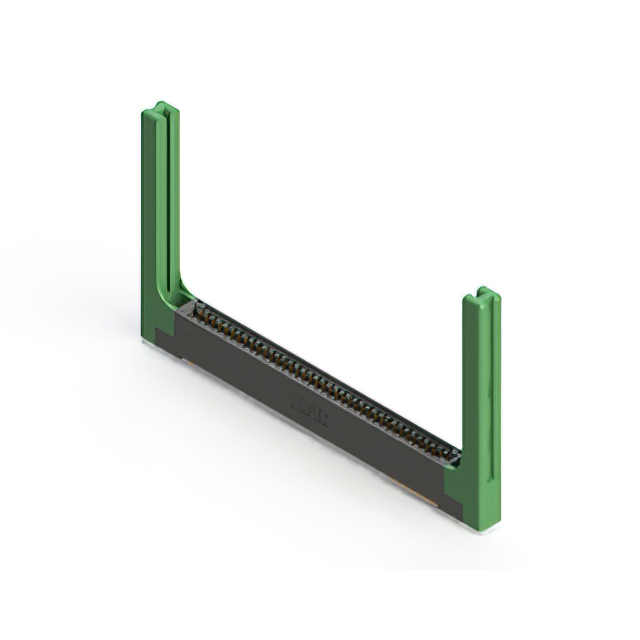

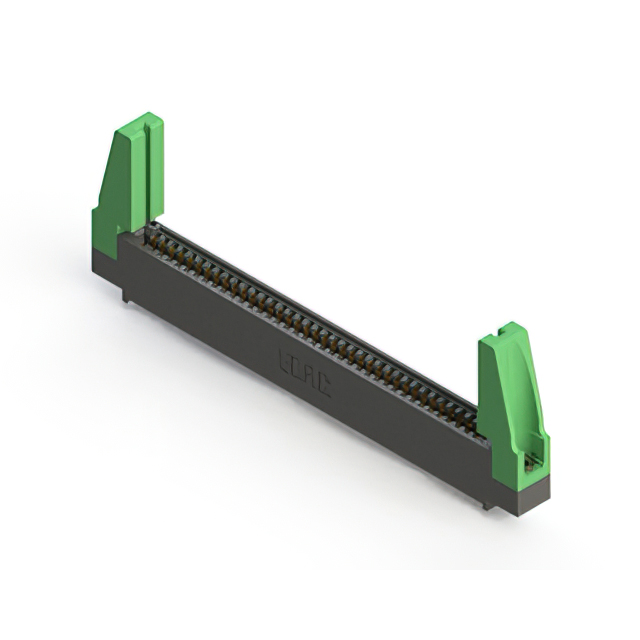

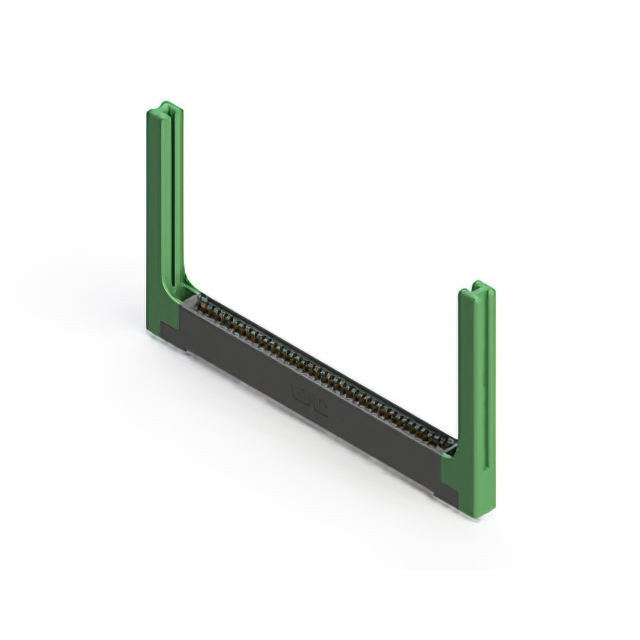

395-078 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 78POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Number of Positions | Mounting Type | Card Type | Number of Rows [custom] | Number of Positions/Bay/Row | Contact Material | Gender | Read Out | Pitch | Pitch | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Color | Termination | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 78 | Through Hole | Non Specified - Dual Edge | 2 | 39 | Copper Alloy | Female | Dual | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 78 | Through Hole | Non Specified - Dual Edge | 2 | 39 | Copper Alloy | Female | Dual | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Wire Wrap | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 78 | Right Angle Through Hole | Non Specified - Dual Edge | 2 | 39 | Copper Alloy | Female | Dual | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 78 | Board Edge Straddle Mount | Non Specified - Dual Edge | 2 | 39 | Copper Alloy | Female | Dual | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder Eyelet(s) | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Card Extender |
 EDAC Inc. | Polyester Thermoplastic | 2 | 78 | Right Angle Through Hole | Non Specified - Dual Edge | 2 | 39 | Copper Alloy | Female | Dual | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 78 | Board Edge Straddle Mount | Non Specified - Dual Edge | 2 | 39 | Copper Alloy | Female | Dual | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | 4-40 Threaded Insert Top Mount Opening | Card Extender Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 78 | Through Hole | Non Specified - Dual Edge | 2 | 39 | Copper Alloy | Female | Dual | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 78 | Board Edge Straddle Mount | Non Specified - Dual Edge | 2 | 39 | Copper Alloy | Female | Dual | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 78 | Through Hole | Non Specified - Dual Edge | 2 | 39 | Copper Alloy | Female | Dual | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Wire Wrap | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 78 | Through Hole | Non Specified - Dual Edge | 2 | 39 | Copper Alloy | Female | Dual | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides |
