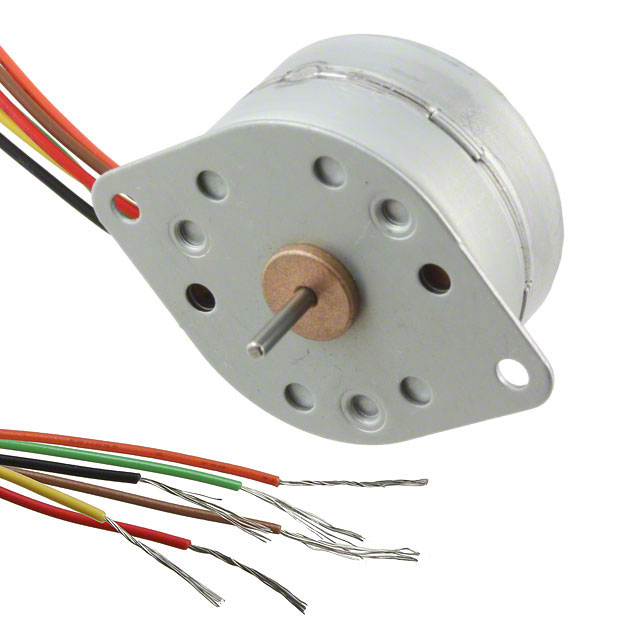

35L048 Series
Manufacturer: Portescap
Beta
⌘K
STEPPER MOTOR PM UNIPOLAR 5V
| Part | Rotor Inertia | Weight [custom] | Weight [custom] | Length - Shaft and Bearing | Length - Shaft and Bearing | Termination Style | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Voltage - Rated | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Coil Type | Coil Resistance | Step Angle | Current Rating (Amps) | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Size / Dimension [diameter] | Size / Dimension [diameter] | Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Accuracy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 4 gcm˛ | 88 g | 0.194 lb | 0.445 in | 11.3 mm | Wire Leads | 42 mm | 1.65 in | 5 V | 0.079 in | 2 mm | Unipolar | 11 Ohms | 7.5 ° | 0.45 A | 3.5 oz-in | 25 mNm | 1.42 in | 35.94 mm | Permanent Magnet | -20 ░C | 70 °C | Round Shaft | 15 % |
 Portescap | 4 gcm˛ | 88 g | 0.194 lb | 0.445 in | 11.3 mm | Wire Leads | 42 mm | 1.65 in | 12 VDC | 0.079 in | 2 mm | Unipolar | 64 Ohms | 7.5 ° | 190 mA | 3.5 oz-in | 25 mNm | 1.42 in | 35.94 mm | Permanent Magnet | -20 ░C | 70 °C | Round Shaft | 15 % |
