LF10WBP Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

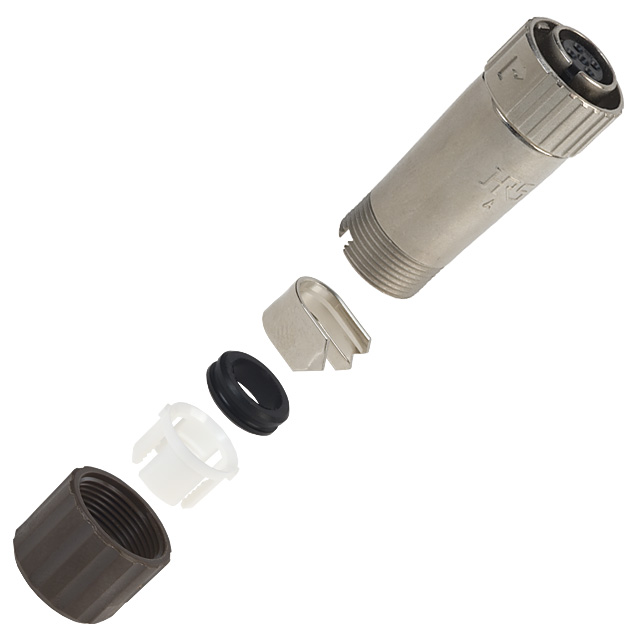

CONN PLUG MALE 4P GOLD SLDR CUP
| Part | Primary Material | Color | Mounting Type | Applications | Current Rating (Amps) | Contact Material | Voltage Rating | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Cable Opening | Cable Opening | Backshell Material, Plating | Shell Material | Contact Finish - Mating | Connector Type | Fastening Type | Insert Material | Shell Finish | Ingress Protection | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Features | Shell Size - Insert [custom] | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Metal | Brown Silver | Free Hanging (In-Line) | Industrial Telecommunications | 10 A | Copper Alloy | 125 VAC | 4 | 7.87 Áin | 0.2 Ám | Keyed | 0.287 in | 7.3 mm | Nickel Zinc Alloy | Zinc Alloy | Gold | Plug Male Pins | Bayonet Lock | Polyphenylene Sulfide (PPS) | Nickel | IP67/IP68 | Shielded | 85 °C | -25 °C | Backshell Cable Clamp Coupling Nut Strain Relief | 10 | UL94 V-0 |
Hirose Electric Co Ltd | Metal | Black Brown | Free Hanging (In-Line) | Industrial Telecommunications | 10 A | Copper Alloy | 125 VAC | 4 | 8 µin | 0.203 µm | Keyed | Black Chrome Zinc Alloy | Zinc Alloy | Gold | Plug Female Sockets | Bayonet Lock | Polyphenylene Sulfide (PPS) | Chrome | IP67/IP68 | Shielded | 85 °C | -25 °C | Backshell Clamp Coupling Nut Strain Relief | 10 | UL94 V-0 | ||
Hirose Electric Co Ltd | |||||||||||||||||||||||||||
 Hirose Electric Co Ltd | Metal | Brown Silver | Free Hanging (In-Line) | Industrial Telecommunications | 10 A | Copper Alloy | 125 VAC | 4 | 8 µin | 0.203 µm | Keyed | Nickel Zinc Alloy | Zinc Alloy | Gold | Plug Female Sockets | Bayonet Lock | Polyphenylene Sulfide (PPS) | Nickel | IP67/IP68 | Shielded | 85 °C | -25 °C | Backshell Clamp Coupling Nut Strain Relief | 10 | UL94 V-0 |
