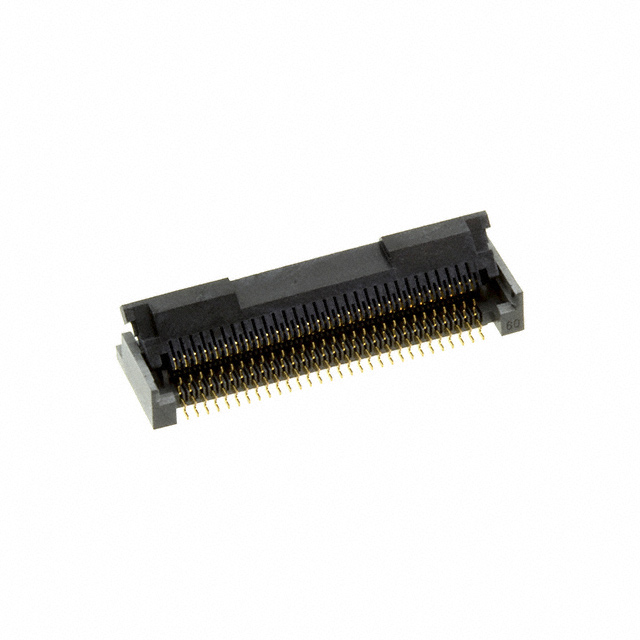

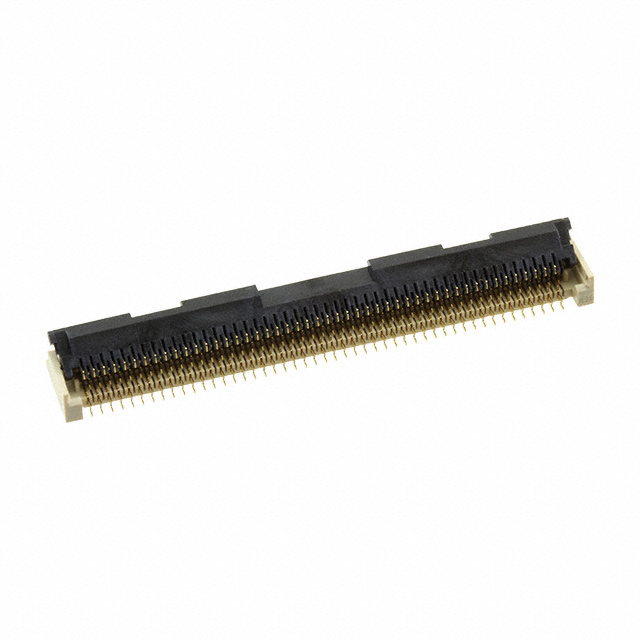

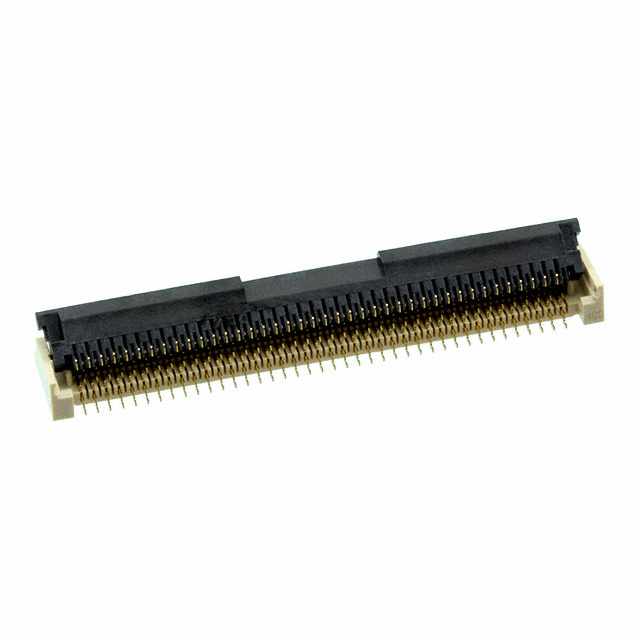

FH30 Series

Catalog

CONN FPC BOTTOM 80POS 0.4MM R/A

Part	Current Rating (Amps)	Mating Cycles	Locking Feature	Termination	Height Above Board [z]	Height Above Board [z]	Flat Flex Type	Housing Material	Material Flammability Rating	Contact Finish	Connector/Contact Type	Number of Positions	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable End Type	Pitch	Pitch	FFC, FCB Thickness	Mounting Type
Hirose Electric Co Ltd FH30M-80S-0.4SHW(98)	0.3 A	20	Rotary Lock	Solder	0.118 in	3 mm	FPC	Liquid Crystal Polymer (LCP) Halogen Free	UL94 V-0	Gold	Contacts Bottom	80	Phosphor Bronze	85 °C	-40 C	Tabbed	0.4 mm	0.016 in	0.3 mm	Right Angle Surface Mount
Hirose Electric Co Ltd FH30M-96S-0.4SHW(98)	0.3 A	20	Rotary Lock	Solder	0.118 in	3 mm	FPC	Liquid Crystal Polymer (LCP) Halogen Free	UL94 V-0	Gold	Contacts Bottom	96	Phosphor Bronze	85 °C	-40 C	Tabbed	0.4 mm	0.016 in	0.3 mm	Right Angle Surface Mount
Hirose Electric Co Ltd FH30-90S-0.3SHW(05)	150 mA	20	Rotary Lock	Solder	0.118 in	3 mm	FPC	Liquid Crystal Polymer (LCP) Halogen Free	UL94 V-0	Gold	Contacts Bottom	90	Phosphor Bronze	85 °C	-40 C	Tabbed	0.3 mm	0.012 in	0.3 mm	Right Angle Surface Mount
Hirose Electric Co Ltd FH30-80S-0.3SHW(05)	150 mA	20	Rotary Lock	Solder	0.118 in	3 mm	FPC	Liquid Crystal Polymer (LCP) Halogen Free	UL94 V-0	Gold	Contacts Bottom	80	Phosphor Bronze	85 °C	-40 C	Tabbed	0.3 mm	0.012 in	0.3 mm	Right Angle Surface Mount
Hirose Electric Co Ltd FH30-80S-0.3SHW(98)	150 mA	20	Rotary Lock	Solder	0.118 in	3 mm	FPC	Liquid Crystal Polymer (LCP) Halogen Free	UL94 V-0	Gold	Contacts Bottom	80	Phosphor Bronze	85 °C	-40 C	Tabbed	0.3 mm	0.012 in	0.3 mm	Right Angle Surface Mount
Hirose Electric Co Ltd FH30M-96S-0.4SHW(05)	0.3 A	20	Rotary Lock	Solder	0.118 in	3 mm	FPC	Liquid Crystal Polymer (LCP) Halogen Free	UL94 V-0	Gold	Contacts Bottom	96	Phosphor Bronze	85 °C	-40 C	Tabbed	0.4 mm	0.016 in	0.3 mm	Right Angle Surface Mount
Hirose Electric Co Ltd FH30-90S-0.3SHW(98)	150 mA	20	Rotary Lock	Solder	0.118 in	3 mm	FPC	Liquid Crystal Polymer (LCP) Halogen Free	UL94 V-0	Gold	Contacts Bottom	90	Phosphor Bronze	85 °C	-40 C	Tabbed	0.3 mm	0.012 in	0.3 mm	Right Angle Surface Mount
Hirose Electric Co Ltd FH30-60S-0.3SHW(98)	150 mA	20	Rotary Lock	Solder	0.118 in	3 mm	FPC	Liquid Crystal Polymer (LCP) Halogen Free	UL94 V-0	Gold	Contacts Bottom	60	Phosphor Bronze	85 °C	-40 C	Tabbed	0.3 mm	0.012 in	0.3 mm	Right Angle Surface Mount
