MP34 Series

Catalog

MIC MEMS DIGITAL PDM OMNI -26DB

Part	Sensitivity	Current - Supply	Output Type	Type	Frequency Range [Min]	Frequency Range [Max]	Port Location	Termination	Shape	Height (Max) [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Direction	S/N Ratio	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Height (Max) [diameter]	Height (Max) [diameter]	Height (Max) [Max] [z]
STMicroelectronics MP34DT04TR-C1	-26 dB	10 mA	Digital PDM	MEMS (Silicon)	100 Hz	10 kHz	Top	Surface Mount	Rectangular	0.079 in 2 mm	0.157 "	0.118 "	4 mm	3 mm	Omnidirectional	64 dB	3.6 V	1.6 V	1.8 V

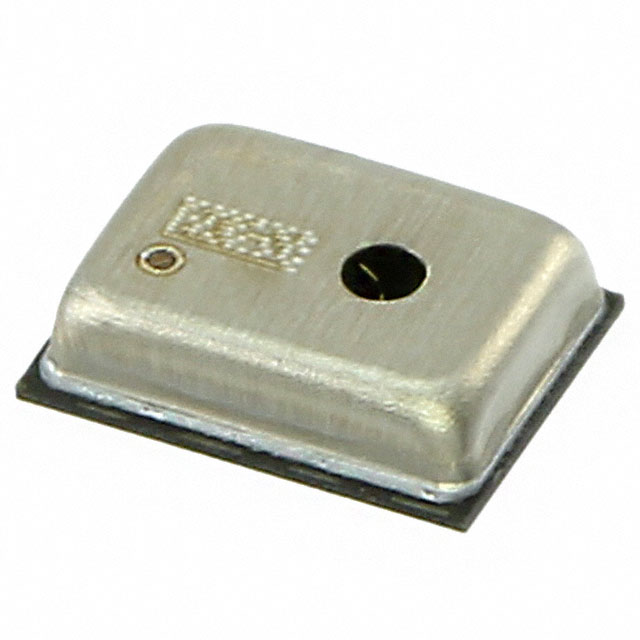

STMicroelectronics MP34DT01TR-M	-26 dB	600 µA	Digital PDM	MEMS (Silicon)	20 Hz	10 kHz	Top	Solder Pads	Rectangular		0.118 in	0.157 in	3 mm	4 mm	Omnidirectional	61 dB	3.6 V	1.64 V	1.8 V	1.16 mm	0.046 in

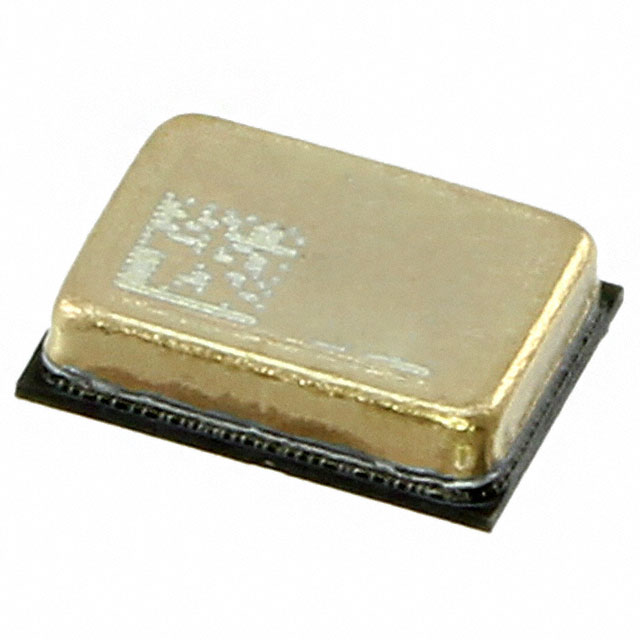

STMicroelectronics MP34DB02TR	-26 dB	650 µA	Digital PDM	MEMS (Silicon)	20 Hz	20 kHz	Bottom	Solder Pads	Rectangular	1.1 mm	0.118 in	0.157 in	3 mm	4 mm	Omnidirectional	62.6 dB	3.6 V	1.64 V	1.8 V			0.043 in
