895-126 Series
Manufacturer: EDAC Inc.
Beta
⌘K

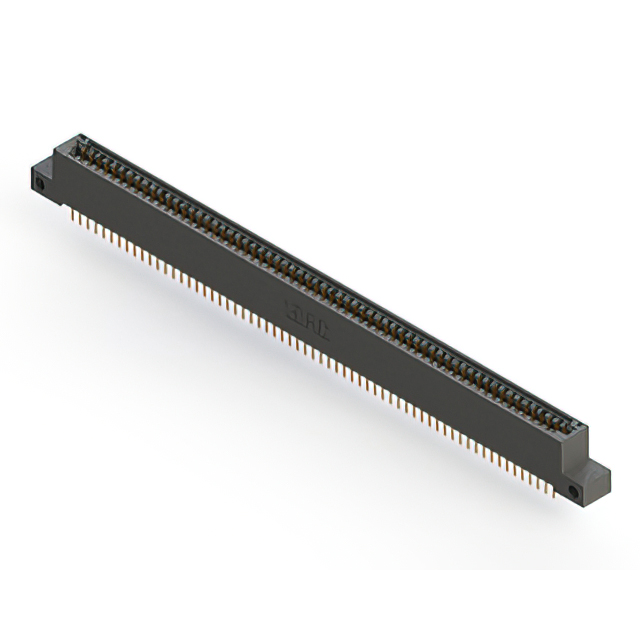

CONN EDGE DUAL FML 126POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish | Number of Positions/Bay/Row | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Rows [custom] | Mounting Type | Color | Features | Card Thickness [Max] | Card Thickness [Min] | Card Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Contact Type | Pitch | Pitch | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | 63 | 126 | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Board Edge Straddle Mount | Black | Card Extender | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Female | Dual | 0.156 " | 3.96 mm | Cantilever | 0.1 " | 2.54 mm | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | 63 | 126 | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Female | Dual | 0.116 " | 2.95 mm | Cantilever | 0.1 " | 2.54 mm | Floating Bobbin Flush Mount | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | 63 | 126 | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Female | Dual | 0.128 " | 3.25 mm | Cantilever | 0.1 " | 2.54 mm | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | 63 | 126 | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Right Angle Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Female | Dual | 0.128 " | 3.25 mm | Cantilever | 0.1 " | 2.54 mm | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | 63 | 126 | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Solder Eyelet(s) | 125 °C | -40 C | Female | Dual | Cantilever | 0.1 " | 2.54 mm | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | 63 | 126 | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Female | Dual | 0.128 " | 3.25 mm | Cantilever | 0.1 " | 2.54 mm | Flush Mount Side Opening Unthreaded | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | 63 | 126 | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Right Angle Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Female | Dual | Cantilever | 0.1 " | 2.54 mm | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | 63 | 126 | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Wire Wrap | 125 °C | -40 C | Female | Dual | Cantilever | 0.1 " | 2.54 mm | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | 63 | 126 | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Right Angle Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Female | Dual | 0.128 " | 3.25 mm | Cantilever | 0.1 " | 2.54 mm | Side Mount Opening Unthreaded | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | 63 | 126 | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Board Edge Straddle Mount | Black | Card Extender | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Female | Dual | 0.116 " | 2.95 mm | Cantilever | 0.1 " | 2.54 mm | Floating Bobbin Flush Mount |
