MNSO Series

Manufacturer: Omnetics

Catalog

CONN D-TYPE RCPT 51POS SMD SLDR

Part	Dielectric Material	Contact Material	Number of Positions	Primary Material	Shell Material, Finish	Number of Rows [custom]	Termination	Connector Type	Flange Feature [Max] [custom]	Flange Feature [Max] [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Style	Contact Type	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Flange Feature [Max]	Flange Feature [Min]	Flange Feature
Omnetics A29200-051	Liquid Crystal Polymer (LCP)	Copper Alloy	51	Metal	Aluminum Nickel Plated	2	Solder	Receptacle Female Sockets	80	80	Surface Mount	50 µin	1.27 µm	Gold	D-Type Nano-D	Signal	0.025 in	0.04 in
Omnetics A29200-009	Liquid Crystal Polymer (LCP)	Copper Alloy	9	Metal	Aluminum Nickel Plated	2	Solder	Receptacle Female Sockets	80	80	Surface Mount	50 µin	1.27 µm	Gold	D-Type Nano-D	Signal	0.025 in	0.04 in
Omnetics A29100-009	Liquid Crystal Polymer (LCP)	Copper Alloy	9	Metal	Aluminum Nickel Plated	2	Solder	Receptacle Female Sockets	80	80	Right Angle Surface Mount	50 µin	1.27 µm	Gold	D-Type Nano-D	Signal	0.025 in	0.04 in

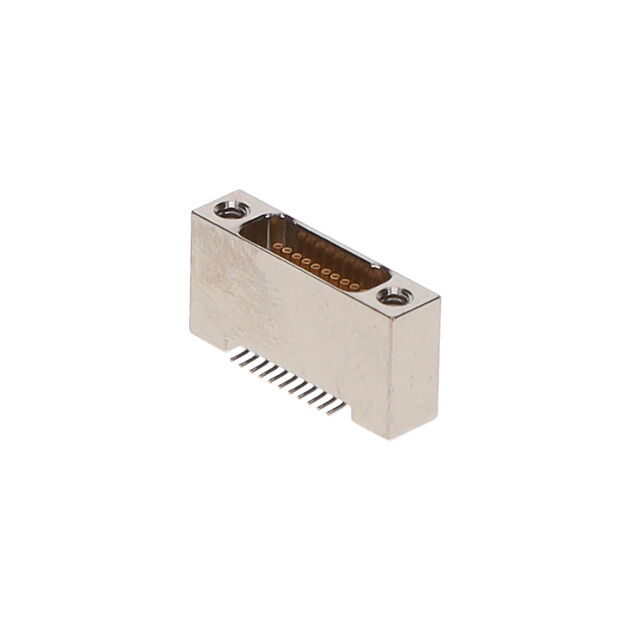

Omnetics A29200-021	Liquid Crystal Polymer (LCP)	Copper Alloy	21	Metal	Aluminum Nickel Plated	2	Solder	Receptacle Female Sockets	80	80	Surface Mount	50 µin	1.27 µm	Gold	D-Type Nano-D	Signal	0.025 in	0.04 in

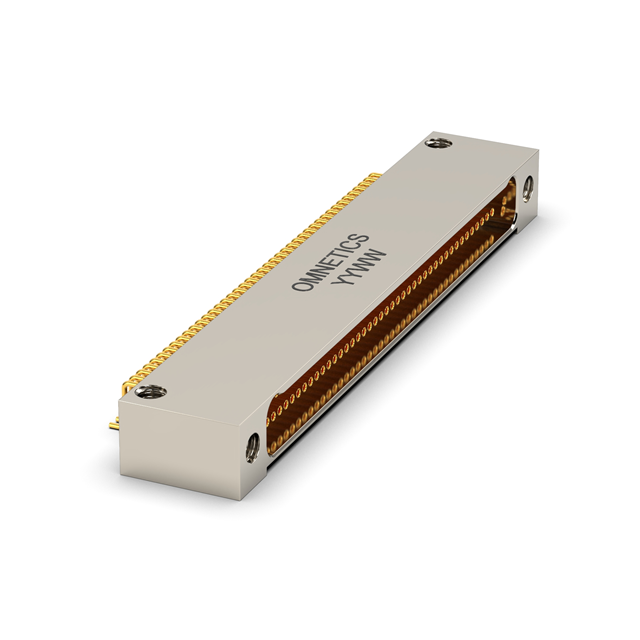

Omnetics A29100-085	Liquid Crystal Polymer (LCP)	Copper Alloy	85	Metal	Aluminum Nickel Plated	2	Solder	Receptacle Female Sockets	80	80	Right Angle Surface Mount	50 µin	1.27 µm	Gold	D-Type Nano-D	Signal	0.025 in	0.04 in	80	0	Housing/Shell
Omnetics A29100-037	Liquid Crystal Polymer (LCP)	Copper Alloy	37	Metal	Aluminum Nickel Plated	2	Solder	Receptacle Female Sockets	80	80	Right Angle Surface Mount	50 µin	1.27 µm	Gold	D-Type Nano-D	Signal	0.025 in	0.04 in

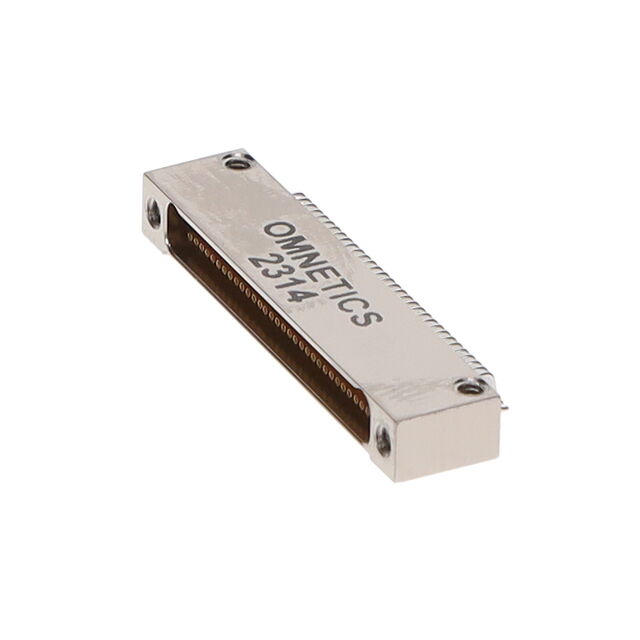

Omnetics A29100-065	Liquid Crystal Polymer (LCP)	Copper Alloy	65	Metal	Aluminum Nickel Plated	2	Solder	Receptacle Female Sockets	80	80	Right Angle Surface Mount	50 µin	1.27 µm	Gold	D-Type Nano-D	Signal	0.025 in	0.04 in
Omnetics A29200-037	Liquid Crystal Polymer (LCP)	Copper Alloy	37	Metal	Aluminum Nickel Plated	2	Solder	Receptacle Female Sockets	80	80	Surface Mount	50 µin	1.27 µm	Gold	D-Type Nano-D	Signal	0.025 in	0.04 in
Omnetics A29100-021	Liquid Crystal Polymer (LCP)	Copper Alloy	21	Metal	Aluminum Nickel Plated	2	Solder	Receptacle Female Sockets	80	80	Right Angle Surface Mount	50 µin	1.27 µm	Gold	D-Type Nano-D	Signal	0.025 in	0.04 in
Omnetics A29100-051	Liquid Crystal Polymer (LCP)	Copper Alloy	51	Metal	Aluminum Nickel Plated	2	Solder	Receptacle Female Sockets	80	80	Right Angle Surface Mount	50 µin	1.27 µm	Gold	D-Type Nano-D	Signal	0.025 in	0.04 in
