TF49 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

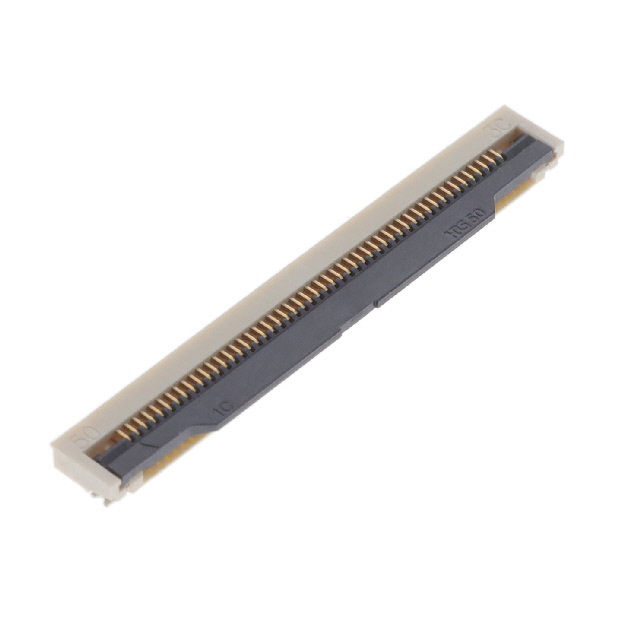

CONN FFC BOTTOM 50POS 0.5MM R/A
| Part | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Actuator Color | Housing Color | Connector/Contact Type | Flat Flex Type | Contact Finish | FFC, FCB Thickness | Number of Positions | Features | Housing Material | Locking Feature | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Termination | Height Above Board [z] | Height Above Board [z] | Cable End Type | Voltage Rating | Mounting Type | Actuator Material | Pitch | Pitch | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 0.5 A | 1.97 Áin | 0.05 Ám | 20 | Black | Natural | Contacts Bottom | FFC FPC | Gold | 0.3 mm | 50 | Solder Retention Zero Insertion Force (ZIF) | Liquid Crystal Polymer (LCP) | Flip Lock | 85 °C | -40 C | Phosphor Bronze | Solder | 0.059 in | 1.5 mm | Tabbed | 50 V | Right Angle Surface Mount | Liquid Crystal Polymer (LCP) | 0.02 " | 0.5 mm | UL94 V-0 |
