AM3O Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 3.3V 2W

Part	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Voltage - Output 1	Voltage - Isolation	Number of Outputs	Package / Case	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Power (Watts)	Type	Features
aimtec AM3O-2403SNZ-LM	36 V	600 mA	72 %	3.3 V	1.5 kV	1	6-SMD Module	ITE (Commercial)	6.8 mm	26.2 mm	16.4 mm	0.65 "	0.27 "	1.03 in	Surface Mount	85 °C	-40 C	9 V	2 W	Isolated Module	Adjustable Output
aimtec AM3O-2412SNZ-LM	36 V	250 mA	81 %	12 V	1.5 kV	1	6-SMD Module	ITE (Commercial)	6.8 mm	26.2 mm	16.4 mm	0.65 "	0.27 "	1.03 in	Surface Mount	85 °C	-40 C	9 V	3 W	Isolated Module	Adjustable Output
aimtec AM3O-2415SNZ-LM	36 V	200 mA		15 V	1.5 kV	1	6-SMD Module	ITE (Commercial)	6.8 mm	26.2 mm	16.4 mm	0.65 "	0.27 "	1.03 in	Surface Mount	85 °C	-40 C	9 V	3 W	Isolated Module	Adjustable Output
aimtec AM3O-2405SNZ-L	36 V	600 mA	77 %	5 V	1.5 kV	1	6-SMD Module	ITE (Commercial)	6.2 mm	26.2 mm	15.1 mm	0.59 in	0.24 in	1.03 in	Surface Mount	85 °C	-40 C	9 V	3 W	Isolated Module	Adjustable Output
aimtec AM3O-0512SNZ	9 V	250 mA	76 %	12 V	1.5 kV	1	6-DIP Module	ITE (Commercial)	6.2 mm	24 mm	15.1 mm	0.59 in	0.24 in	0.95 in	Through Hole	85 °C	-40 C	4.5 V	3 W	Isolated Module	Adjustable Output
aimtec AM3O-0505SNZ-LM	9 V	600 mA	72 %	5 V	1.5 kV	1	6-SMD Module	ITE (Commercial)	6.8 mm	26.2 mm	16.4 mm	0.65 "	0.27 "	1.03 in	Surface Mount	85 °C	-40 C	4.5 V	3 W	Isolated Module	Adjustable Output
aimtec AM3O-2424SNZ-M	36 V	125 mA	81 %	24 V	1.5 kV	1	6-DIP Module	ITE (Commercial)							Through Hole	85 °C	-40 C	9 V	3 W	Isolated Module	Adjustable Output

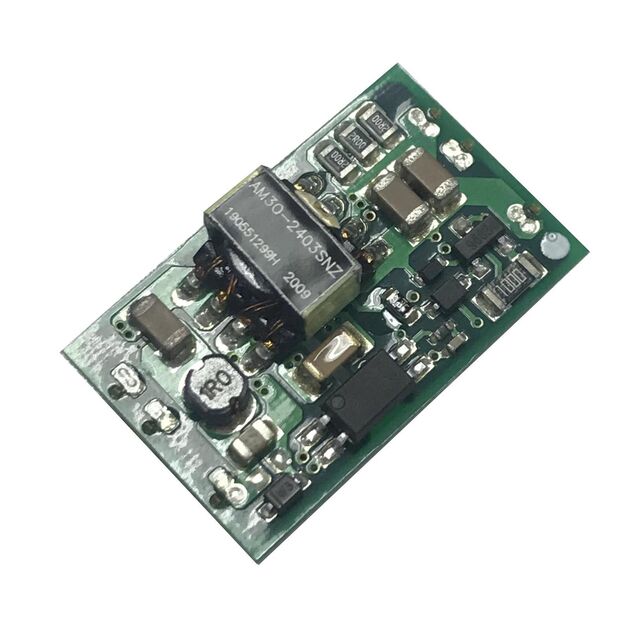

aimtec AM3O-0515SNZ	9 V	200 mA	77 %	15 V	1.5 kV	1	6-DIP Module	ITE (Commercial)	6.2 mm	24 mm	15.1 mm	0.59 in	0.24 in	0.95 in	Through Hole	85 °C	-40 C	4.5 V	3 W	Isolated Module	Adjustable Output
aimtec AM3O-2405SNZ-M	36 V	600 mA	77 %	5 V	1.5 kV	1	6-DIP Module	ITE (Commercial)							Through Hole	85 °C	-40 C	9 V	3 W	Isolated Module	Adjustable Output
aimtec AM3O-0515SNZ-M	9 V	200 mA	77 %	15 V	1.5 kV	1	6-DIP Module	ITE (Commercial)							Through Hole	85 °C	-40 C	4.5 V	3 W	Isolated Module	Adjustable Output
