GaAS MMIC 6 Bit Digital Phase Shifters, 1.2 - 1.4 GHz
Key Features
• Low RMS phase error: 1.2°
• Low insertion loss: 5 dB
• High linearity: +45 dBm
• Positive control logic
• 360° coverage, LSB = 5.625°

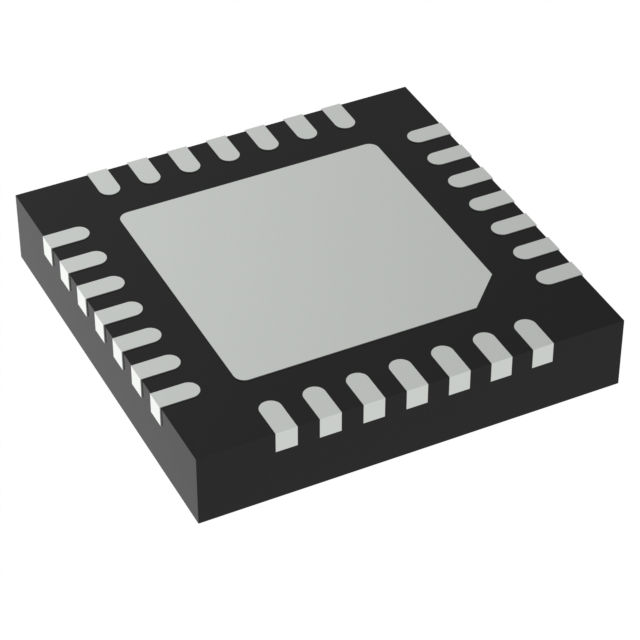

• 28 lead 6x6 mm SMT package: 36mm2
Description
AI
The HMC936ALP6E is a 6-bit digital phase shifter which is rated from 1.2 to 1.4 GHz, providing 360 degrees of phase coverage, with a LSB of 5.625 degrees. The HMC936ALP6E features very low RMS phase error of 1.2 degrees and extremely low inser-tion loss variation of ±0.5 dB across all phase states. This high accuracy phase shifter is controlled with positive control logic of 0/+5V and requires no negative supply voltage. The HMC936ALP6E is housed in a compact 6x6 mm plastic leadless SMT package and is internally matched to 50 Ohms with no external components.ApplicationsEW receiversWeather and military radarSatellite communicationsBeamforming modulesPhase cancellation
