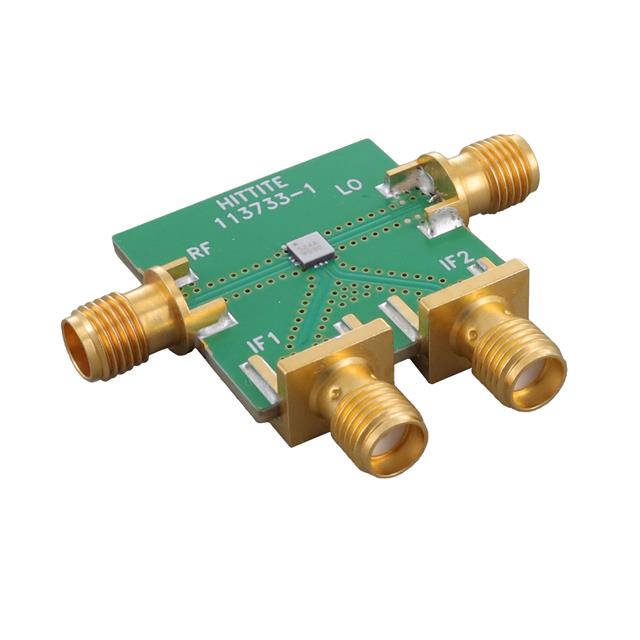

HMC524 Series
Manufacturer: Analog Devices
Catalog
Key Features
• Wide intermediate frequency (IF) bandwidthHMC524: dc to 3.5 GHzHMC524LC3B: dc to 4.5 GHz
• Image rejectionHMC524: 23 dBHMC524LC3B: 20 dB
• Local oscillator (LO) to radio frequency (RF) isolationHMC524: 50 dBHMC524LC3B: 45 dB
• High input IP3: 20 dBm
• Die size (HMC524): 1.49 mm × 1.14 mm × 0.1 mm
• RoHS compliant 3 mm × 3 mm SMT package (HMC524LC3B)
Description
AI
The HMC524 devices are compact I/Q MMIC mixers that are available in a chip (HMC524) or a RoHS compliant SMT package (HMC524LC3B), both of which can be used as either an IRM or a single sideband (SSB) upconverter. The mixers utilize two standard Hittite double balanced mixer cells and a 90° hybrid fabricated in a GaAs metal semiconductor field effect transistor (MESFET) process. A low frequency quadrature hybrid was used to produce a 100 MHz USB IF output. These products are much smaller alternatives to hybrid style IRMs and SSB upconverter assemblies. All data shown for the HMC524 is taken with the chip mounted in a 50 Ω test fixture and includes the effects of 1 mil diameter × 20 mil length bond wires on each port. The HMC524LC3B eliminates the need for wire bonding allowing use of surface mount manufacturing techniques.ApplicationsPoint-to-point radiosPoint-to-multipoint radiosVery small aperture terminal (VSAT)Test equipment and sensorsMilitary end use
