ER8-120P Series

Catalog

CONN HDR 120POS SMD GOLD

Part	Height Above Board	Height Above Board	Mated Stacking Heights	Connector Type	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Number of Positions	Features	Pitch	Pitch	Mated Stacking Heights [Max] [z]	Mated Stacking Heights [Min] [z]	Height Above Board [z]	Height Above Board [z]

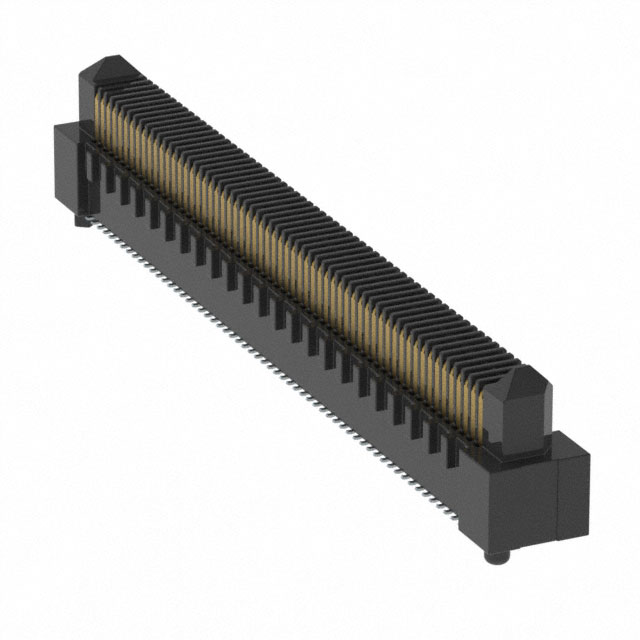

Hirose Electric Co Ltd ER8-120P-0.8SV-5H	8.91 mm	0.351 "	10 mm 12 mm	Header Center Strip Contacts	2	30 Áin	0.76 Ám	Surface Mount	Gold	120	Board Guide	0.8 mm	0.031 in

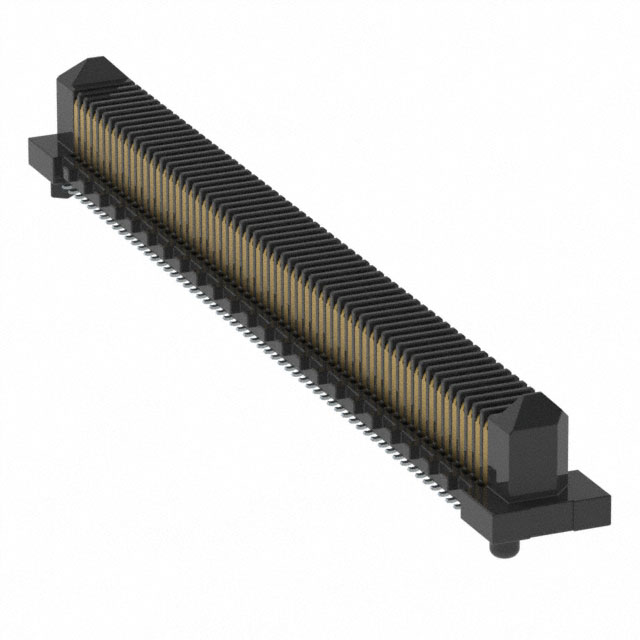

Hirose Electric Co Ltd ER8-120P-0.8SV-2H(10)				Header Center Strip Contacts	2	10 Áin	0.25 Ám	Surface Mount	Gold	120	Board Guide	0.8 mm	0.031 in	9 mm	7 mm	5.95 mm	0.234 in
