NTLUS4930N Series

Single N-Channel µCool™ Power MOSFET 30V 6.1A 28.5mΩ

Catalog

Single N-Channel µCool™ Power MOSFET 30V 6.1A 28.5mΩ

Part	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max)	Technology	Rds On (Max) @ Id, Vgs	Mounting Type	Vgs (Max)	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs [Max]	Supplier Device Package
ON Semiconductor NTLUS4930NTBG	3.8 A	476 pF	650 mW	MOSFET (Metal Oxide)	28.5 mOhm	Surface Mount	20 V	N-Channel	4.5 V 10 V	2.2 V	-55 °C	150 °C	6-UDFN Exposed Pad	30 V	8.7 nC	6-UDFN (2x2)

Single N-Channel µCool™ Power MOSFET 30V 6.1A 28.5mΩ

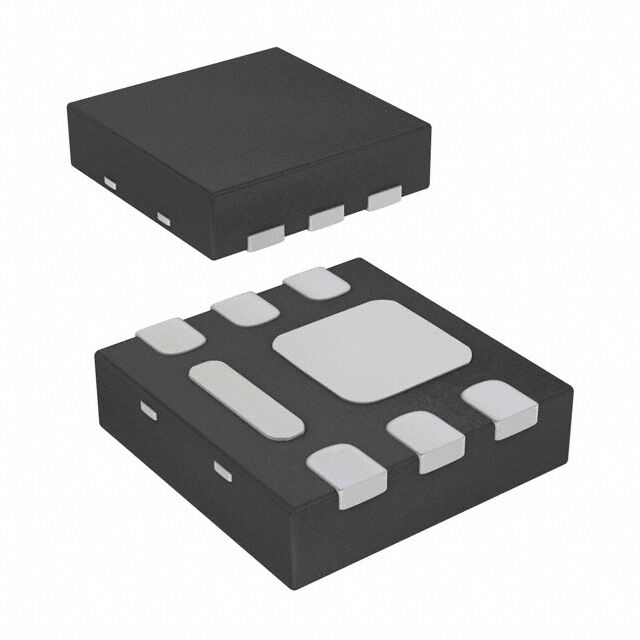

• UDFN Package with Exposed Drain Pads

• Low Profile UDFN 2.0 x 2.0 x 0.55 mm

• Low RDS(on)

• Low Capacitance

• Optimized Gate Charge

• RoHS Compliant

Power MOSFET30 V, 6.1 A, Single N−Channel,2.0x2.0x0.55 mm µCool™ UDFN6 Package
