A3D-28DA Series

Catalog

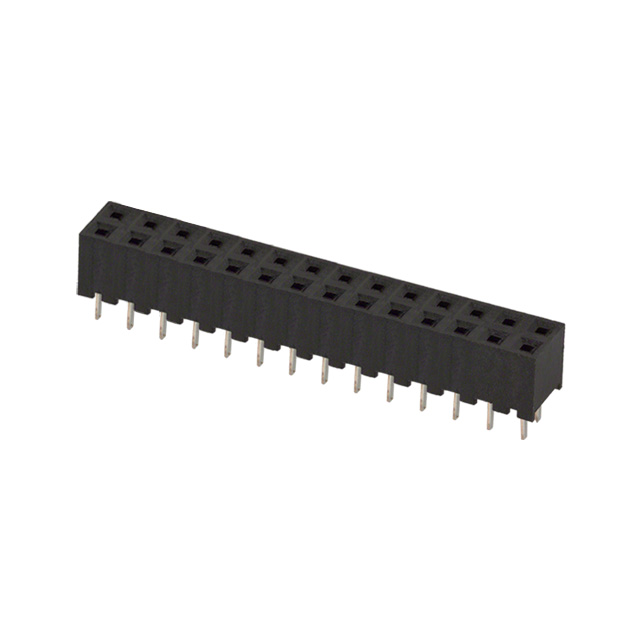

CONN RCPT 28POS 0.079 GOLD PCB

Part	Contact Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Applications	Insulation Height	Insulation Height	Number of Positions Loaded	Material Flammability Rating	Connector Type	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Mounting Type	Style	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Number of Positions	Termination	Insulation Color	Number of Rows [custom]	Voltage Rating	Contact Finish - Post	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating
Hirose Electric Co Ltd A3D-28DA-2DSE(71)	Phosphor Bronze	Square	39.4 çin	1 çm	Polybutylene Terephthalate (PBT)	General Purpose Telecommunications	0.165 in	4.2 mm	All	UL94 V-0	Receptacle	0.05 "	1.27 mm	-55 C	85 °C	Female Socket	Through Hole	Board to Board Cable	Push-Pull	8 µin	0.203 µm	0.079 "	2 mm	5.1 mm 6 mm	28	Solder	Black	2	200 VAC	Tin	Gold	2 mm	0.079 in
Hirose Electric Co Ltd A3D-28DA-2DSE	Phosphor Bronze	Square	39.4 çin	1 çm	Polybutylene Terephthalate (PBT)	General Purpose Telecommunications	0.165 in	4.2 mm	All	UL94 V-0	Receptacle	0.05 "	1.27 mm	-55 C	85 °C	Female Socket	Through Hole	Board to Board Cable	Push-Pull	8 µin	0.203 µm	0.079 "	2 mm	5.1 mm 6 mm	28	Solder	Black	2	200 VAC	Tin	Gold	2 mm	0.079 in
