A3C-6DA Series

Catalog

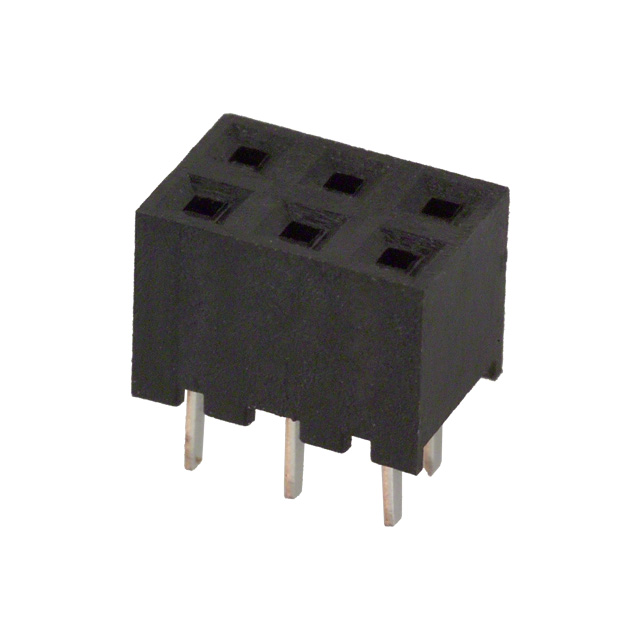

CONN RCPT 6POS 0.079 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Applications	Contact Material	Pitch - Mating	Pitch - Mating	Contact Type	Number of Positions	Voltage Rating	Contact Length - Post	Contact Length - Post	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Number of Positions Loaded	Style	Termination	Connector Type	Fastening Type	Insulation Height	Insulation Height	Mounting Type	Contact Finish - Post	Mated Stacking Heights	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Length - Post
Hirose Electric Co Ltd A3C-6DA-2DSC(71)	39.4 çin	1 çm	Polybutylene Terephthalate (PBT)	Square	General Purpose Telecommunications	Phosphor Bronze	0.079 "	2 mm	Female Socket	6	200 VAC	2 mm	0.079 in	Black	-55 C	85 °C	2 mm	0.079 in	2	All	Board to Board Cable	Solder	Receptacle	Push-Pull	0.165 in	4.2 mm	Through Hole	Tin	5.1 mm 6 mm	Gold	8 µin	0.203 µm	UL94 V-0
Hirose Electric Co Ltd A3C-6DA-2DSC	39.4 çin	1 çm	Polybutylene Terephthalate (PBT)	Square	General Purpose Telecommunications	Phosphor Bronze	0.079 "	2 mm	Female Socket	6	200 VAC	2 mm	0.079 in	Black	-55 C	85 °C	2 mm	0.079 in	2	All	Board to Board Cable	Solder	Receptacle	Push-Pull	0.165 in	4.2 mm	Through Hole	Tin	5.1 mm 6 mm	Gold	8 µin	0.203 µm	UL94 V-0
Hirose Electric Co Ltd A3C-6DA-2DSA	39.4 çin	1 çm	Polybutylene Terephthalate (PBT)	Square	General Purpose Telecommunications	Phosphor Bronze	0.079 "	2 mm	Female Socket	6	200 VAC		3 mm	Black	-55 C	85 °C	2 mm	0.079 in	2	All	Board to Board Cable	Solder	Receptacle	Push-Pull	0.165 in	4.2 mm	Through Hole	Tin	5.1 mm 6 mm	Gold	8 µin	0.203 µm	UL94 V-0	0.118 in
Hirose Electric Co Ltd A3C-6DA-2DSA(71)	39.4 çin	1 çm	Polybutylene Terephthalate (PBT)	Square	General Purpose Telecommunications	Phosphor Bronze	0.079 "	2 mm	Female Socket	6	200 VAC		3 mm	Black	-55 C	85 °C	2 mm	0.079 in	2	All	Board to Board Cable	Solder	Receptacle	Push-Pull	0.165 in	4.2 mm	Through Hole	Tin	5.1 mm 6 mm	Gold	8 µin	0.203 µm	UL94 V-0	0.118 in
