MCP6492 Series

7.5 MHz, Low-Input Bias Current Op Amps

Catalog

7.5 MHz, Low-Input Bias Current Op Amps

Part	Gain Bandwidth Product	Voltage - Supply Span (Min) [Min]	Amplifier Type	Current - Output / Channel	Slew Rate	Voltage - Input Offset	Supplier Device Package	Number of Circuits	Output Type	Current - Input Bias	Package / Case	Package / Case [custom]	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Supply	Voltage - Supply Span (Max) [Max]	Package / Case [y]	Package / Case [x]
Microchip Technology MCP6492T-E/MS	7.5 MHz	2.4 V	General Purpose	15 mA	6 V/çs	1.5 mV	8-MSOP	2	Rail-to-Rail	1 pA	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	-40 °C	125 °C	530 µA	5.5 V

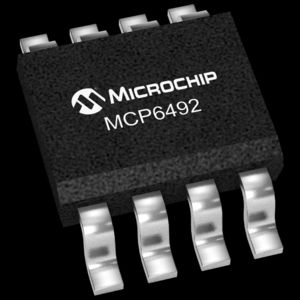

Microchip Technology MCP6492-E/SN	7.5 MHz	2.4 V	General Purpose	15 mA	6 V/çs	1.5 mV	8-SOIC	2	Rail-to-Rail	1 pA	8-SOIC			Surface Mount	-40 °C	125 °C	530 µA	5.5 V	3.9 mm	0.154 in
Microchip Technology MCP6492-E/MS	7.5 MHz	2.4 V	General Purpose	15 mA	6 V/çs	1.5 mV	8-MSOP	2	Rail-to-Rail	1 pA	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	-40 °C	125 °C	530 µA	5.5 V
Microchip Technology MCP6492T-E/SN	7.5 MHz	2.4 V	General Purpose	15 mA	6 V/çs	1.5 mV	8-SOIC	2	Rail-to-Rail	1 pA	8-SOIC			Surface Mount	-40 °C	125 °C	530 µA	5.5 V	3.9 mm	0.154 in

Catalog

7.5 MHz, Low-Input Bias Current Op Amps

Key Features

• * Low Input Bias Current:150 pA (typical, TA = +125°C)

• * Gain-Bandwidth Product: 7.5 MHz

• * Low Quiescent Current: 530 µA/amplifier (typical)

• * Low Input Offset Voltage: 1.5 mV (max.)

• * Unity Gain Stable

• * Rail to Rail Input and Output

• * Small Packages: MSOP, SOIC, 2x3 TDFN

Description

The Microchip’s MCP6491/2/4 family of operational amplifiers (op amps) has low input bias current (150 pA, typical at 125°C) and rail-to-rail input and output operation. This family is unity gain stable and has a gain bandwidth product of 7.5 MHz (typical). These devices operate with a single-supply voltage as low as 2.0V, while only drawing 530 µA/amplifier (typical) of quiescent current. These features make the family of op amps well suited for photodiode amplifier, pH electrode amplifier, low leakage amplifier, and battery powered signal conditioning applications, etc. All devices are designed using an advanced CMOS process and fully specified in extended temperature range from -40°C to +125°C.
