GRN-110 Series

Catalog

GRN-110-3002 OVP CH

Part	Mounting Type	Efficiency	Features	Voltage - Output 3	Power (Watts)	Current - Output 2	Type	Current - Output 3	Current - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 2	Voltage - Output 1	Standard Number	Operating Temperature [Max]	Applications	Number of Outputs	Approval Agency	Current - Output 4	Voltage - Output 4
Integrated Power Designs 1011376CH	Chassis Mount	85 %	Adjustable Output Remote Sense Universal Input	-15 V	150 W	3 A	Chassis	3 A	12 A	38.1 mm	5.25 in	1.5 in	82.6 mm	133.4 mm	3.25 "	15 V	5 V	60601-1; 62368-1	70 °C	ITE (Commercial) Medical	3	CE cURus TUV UKCA
Integrated Power Designs 1011375CH	Chassis Mount	85 %	Adjustable Output Remote Sense Universal Input	-12 V	132 W	3 A	Chassis	3 A	12 A	38.1 mm	5.25 in	1.5 in	82.6 mm	133.4 mm	3.25 "	12 V	5 V	60601-1; 62368-1	70 °C	ITE (Commercial) Medical	3	CE cURus TUV UKCA
Integrated Power Designs 1011243CH	Chassis Mount	85 %	Adjustable Output Remote Sense Universal Input	12 V	110 W	2 A	Chassis	2 A	10 A	38.1 mm	5.25 in	1.5 in	82.6 mm	133.4 mm	3.25 "	24 V	5 V	60601-1; 62368-1	70 °C	ITE (Commercial) Medical	4	CE cURus TUV UKCA	2 A	-12 V
Integrated Power Designs 1011244CHCO	Chassis Mount	85 %	Adjustable Output Remote Sense Universal Input	15 V	110 W	2 A	Enclosed	2 A	10 A	38.1 mm	5.25 in	1.5 in	82.6 mm	133.4 mm	3.25 "	24 V	5 V	60601-1; 62368-1	70 °C	ITE (Commercial) Medical	4	CE cURus TUV UKCA	2 A	-15 V

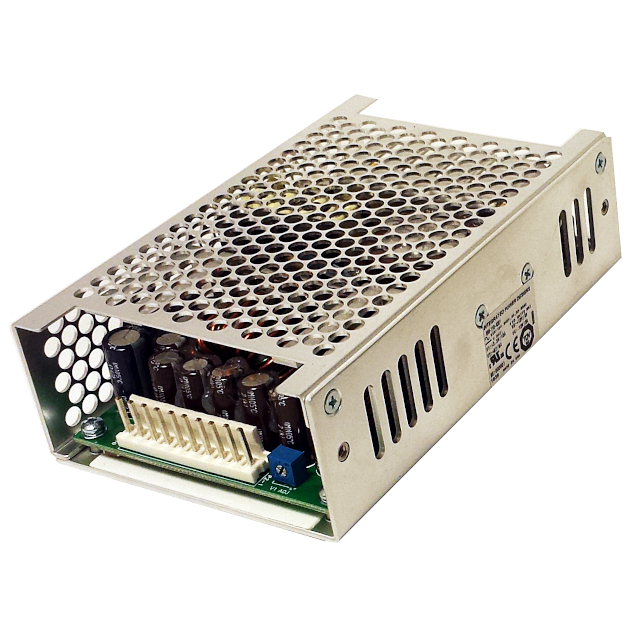

Integrated Power Designs 1011373CHCO	Chassis Mount	85 %	Adjustable Output Remote Sense Universal Input	12 V	110 W	2 A	Enclosed	2 A	10 A	38.1 mm	5.25 in	1.5 in	82.6 mm	133.4 mm	3.25 "	24 V	5 V	60601-1; 62368-1	70 °C	ITE (Commercial) Medical	4	CE cURus TUV UKCA	2 A	-12 V
Integrated Power Designs 1011245CH	Chassis Mount	85 %	Adjustable Output Remote Sense Universal Input	-12 V	110 W	3 A	Chassis	3 A	12 A	38.1 mm	5.25 in	1.5 in	82.6 mm	133.4 mm	3.25 "	12 V	5 V	60601-1; 62368-1	70 °C	ITE (Commercial) Medical	3	CE cURus TUV UKCA
Integrated Power Designs 1011241CH	Chassis Mount	85 %	Adjustable Output Remote Sense Universal Input	12 V	110 W	5 A	Chassis	2 A	10 A	38.1 mm	5.25 in	1.5 in	82.6 mm	133.4 mm	3.25 "	5 V	3.3 V	60601-1; 62368-1	70 °C	ITE (Commercial) Medical	4	CE cURus TUV UKCA	2 A	-12 V
Integrated Power Designs 1011411CHCO	Chassis Mount	87 %	Adjustable Output Remote Sense Universal Input		110 W		Enclosed		9.2 A	38.1 mm	5.25 in	1.5 in	82.6 mm	133.4 mm	3.25 "		12 V	60601-1; 62368-1	70 °C	ITE (Commercial) Medical	1	CE cURus TUV UKCA
Integrated Power Designs 1011372CH	Chassis Mount	85 %	Adjustable Output Remote Sense Universal Input	12 V	123 W	5 A	Chassis	2 A	10 A	38.1 mm	5.25 in	1.5 in	82.6 mm	133.4 mm	3.25 "	-5 V	5 V	60601-1; 62368-1	70 °C	ITE (Commercial) Medical	4	CE cURus TUV UKCA	2 A	-12 V
Integrated Power Designs 1011245CHCO	Chassis Mount	85 %	Adjustable Output Remote Sense Universal Input	-12 V	132 W	3 A	Enclosed	3 A	12 A	38.1 mm	5.25 in	1.5 in	82.6 mm	133.4 mm	3.25 "	12 V	5 V	60601-1; 62368-1	70 °C	ITE (Commercial) Medical	3	CE cURus TUV UKCA
