TN1215 Series

Catalog

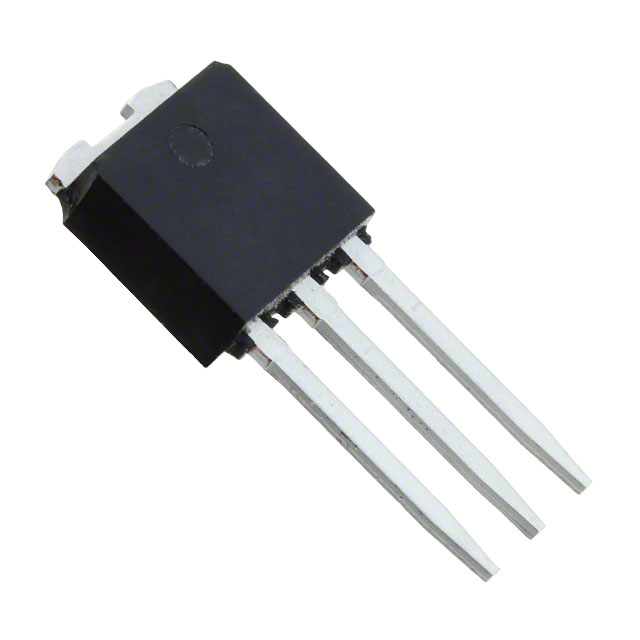

SCR 600V 12A TO-251 (IPAK)

Part	Supplier Device Package	Supplier Device Package	Current - On State (It (RMS)) (Max) [Max]	Mounting Type	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - On State (Vtm) (Max)	Current - Off State (Max) [Max] [custom]	SCR Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Hold (Ih) (Max)	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max)	Current - On State (It (AV)) (Max)	Current - Hold (Ih) (Max) [Max]
STMicroelectronics TN1215-600H	IPAK	TO-251	12 A	Through Hole	15 mA	1.6 V	5 µA	Standard Recovery	110 A 115 A	125 °C	-40 C	IPAK TO-251-3 Short Leads TO-251AA	40 mA	600 V	1.3 V	8 A
STMicroelectronics TN1215-800H		IPAK (TO-251)	12 A	Through Hole	15 mA	1.6 V	5 µA	Standard Recovery	110 A 115 A	125 °C	-40 C	IPAK TO-251-3 Short Leads TO-251AA	40 mA	800 V	1.3 V	8 A
STMicroelectronics TN1215-600B		DPAK	12 A	Surface Mount	15 mA	1.6 V	5 µA	Standard Recovery	110 A 115 A	125 °C	-40 C	DPAK (2 Leads + Tab) SC-63 TO-252-3	40 mA	600 V	1.3 V	8 A
STMicroelectronics TN1215-600G-TR		D2PAK	12 A	Surface Mount	15 mA	1.6 V	5 µA	Standard Recovery	140 A 145 A	125 °C	-40 C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB		600 V	1.3 V	8 A	30 mA
STMicroelectronics TN1215-600G		D2PAK	12 A	Surface Mount	15 mA	1.6 V	5 µA	Standard Recovery	140 A 145 A	125 °C	-40 C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB		600 V	1.3 V	8 A	30 mA
STMicroelectronics TN1215-800G-TR		D2PAK	12 A	Surface Mount	15 mA	1.6 V	5 µA	Standard Recovery	140 A 145 A	125 °C	-40 C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB		800 V	1.3 V	8 A	30 mA
STMicroelectronics TN1215-800B-TR		DPAK	12 A	Surface Mount	15 mA	1.6 V	5 µA	Standard Recovery	110 A 115 A	125 °C	-40 C	DPAK (2 Leads + Tab) SC-63 TO-252-3	40 mA	800 V	1.3 V	8 A
STMicroelectronics TN1215-600B-TR		DPAK	12 A	Surface Mount	15 mA	1.6 V	5 µA	Standard Recovery	110 A 115 A	125 °C	-40 C	DPAK (2 Leads + Tab) SC-63 TO-252-3	40 mA	600 V	1.3 V	8 A
